Description

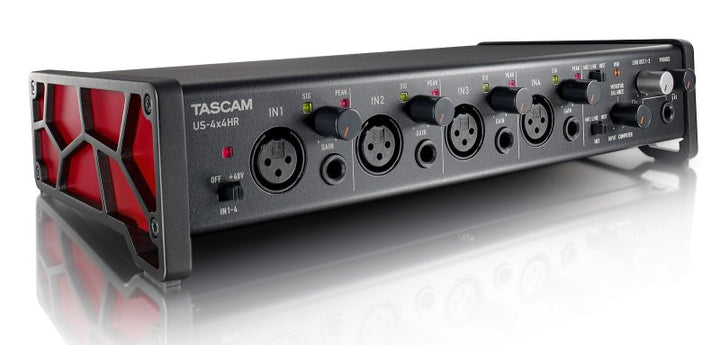

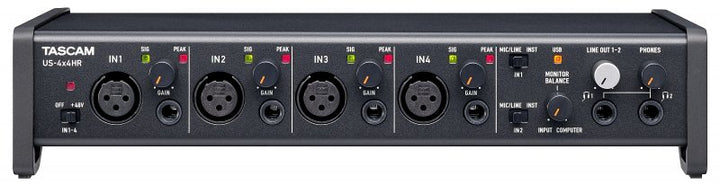

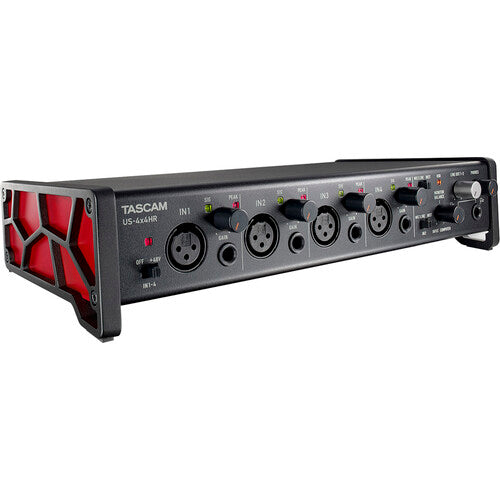

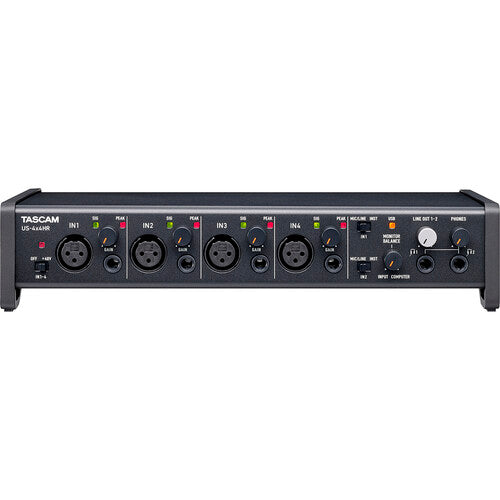

The Tascam US-4x4HR is a 4-in/4-out high-resolution USB audio and MIDI interface from the US-HR series, recording and playing back at up to 24-bit/192 kHz. Four Ultra-HDDA mic preamps with an EIN of -128 dBu deliver transparent, low-noise capture through combo XLR/TRS inputs. Inputs 1 and 2 support instrument-level (Hi-Z) signals for direct guitar and bass recording, and all four inputs have independent +48V phantom power.
Outputs and Monitoring
Four balanced 1/4" TRS line outputs drive multiple monitor setups or feed external gear. Two front-panel headphone outputs with independent level controls support simultaneous monitoring for two performers. Zero-latency direct monitoring ensures real-time playback without delay.
Streaming and Podcasting
The built-in loopback function returns computer audio to streaming software, switchable between stereo and mono. Native OBS Studio support and iOS/iPadOS compatibility make the US-4x4HR a versatile hub for podcasts and live streams.
Bundled Software
Included software covers the full production workflow: Steinberg Cubase LE and Cubasis LE 3 for DAW recording, IK Multimedia SampleTank 4 SE with a 30 GB sound library, and a 3-month subscription to Antares Auto-Tune Unlimited.
Specifications
- Analog Inputs: 4 x XLR/TRS combo (mic/line; IN 1-2 switchable to instrument)
- Analog Outputs: 4 x 1/4" TRS balanced (pairs 1-2 and 3-4)
- Headphone Outputs: 2 x 1/4" TRS (45 mW + 45 mW into 32 ohms)
- MIDI: 5-pin DIN in/out
- Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Bit Depth: 24-bit
- Mic Preamp EIN: -128 dBu or lower
- S/N Ratio: 110 dB (A-weighted)
- THD+N: 0.0013% (mic in)
- USB: Type-C, USB 2.0 High Speed
- Power: USB bus power; AC adapter PS-P1220E included
- Dimensions: 11.65" x 2.56" x 6.30" / 296 x 65 x 160 mm (W x H x D)
- Weight: 3.53 lbs / 1.6 kg
In the Box
- Tascam US-4x4HR interface
- AC adapter (PS-P1220E)
- USB cable (Type-A to Type-C)
- DAW software installation guide
- DAW plug-in software installation guide set
- Owner's Manual (including warranty)
