Description

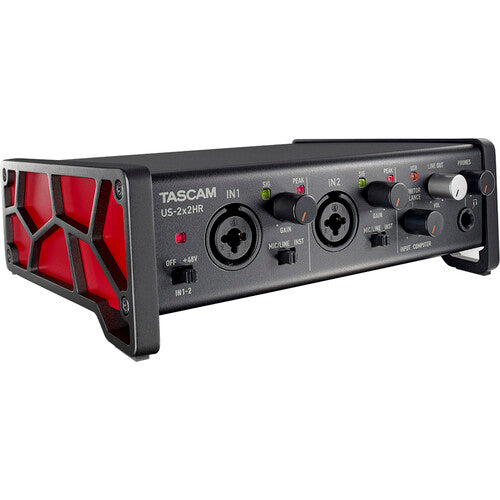

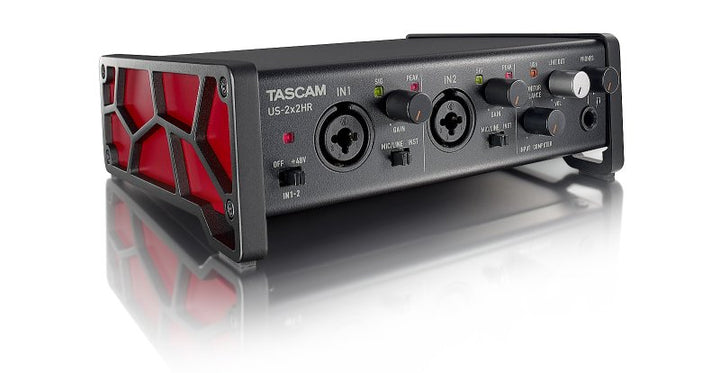

The Tascam US-2x2HR is a 2-in/2-out high-resolution USB audio and MIDI interface from the US-HR series, supporting up to 24-bit/192 kHz recording and playback. Two Ultra-HDDA mic preamps with an EIN of -128 dBu provide transparent, low-noise capture through combo XLR/TRS inputs with switchable +48V phantom power and instrument (Hi-Z) support. A USB-C connection delivers bus-powered operation, making the interface ready to record wherever you are.
Recording and Monitoring

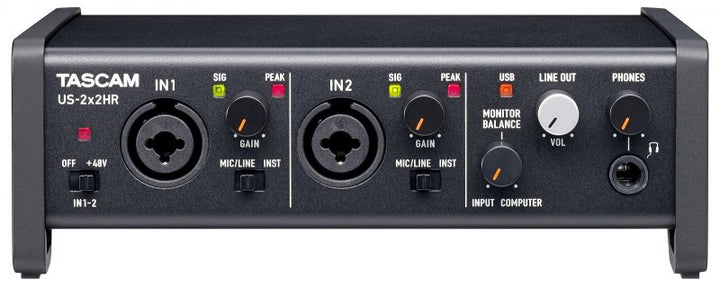

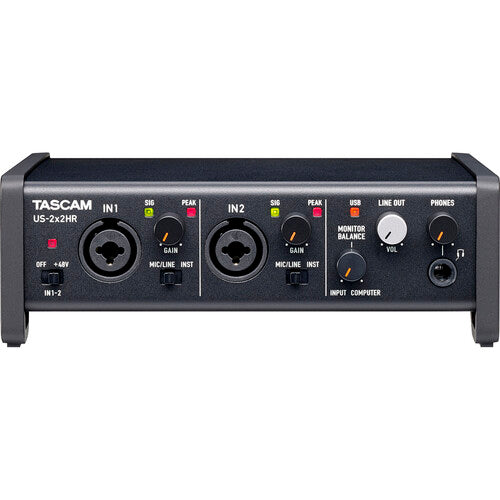

Zero-latency direct monitoring splits the signal before it reaches the computer, ensuring performers hear themselves in real time with no delay. Two balanced 1/4" TRS line outputs and a front-panel headphone output handle monitoring, with a large Monitor knob for quick level adjustments. The Monitor Balance control blends live input with computer playback.
Streaming and Podcasting
A built-in loopback function returns computer audio to the streaming software, switchable between stereo and mono. Native support for OBS Studio makes the US-2x2HR an immediate fit for podcasters and live streamers.
Bundled Software
Included software covers the full production workflow: Steinberg Cubase LE and Cubasis LE 3 for DAW recording, IK Multimedia SampleTank 4 SE with a 30 GB sound library, and a 3-month subscription to Antares Auto-Tune Unlimited.
Specifications
- Analog Inputs: 2 x XLR/TRS combo (mic/line/instrument)

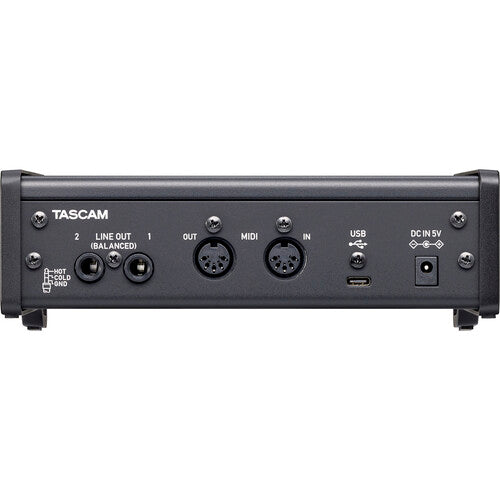

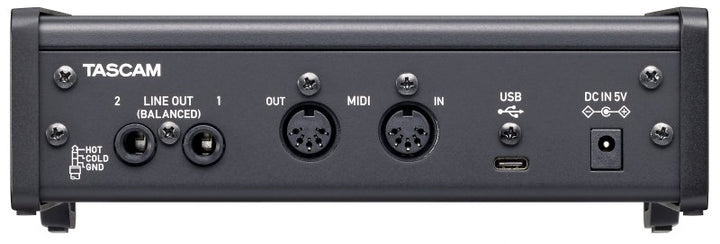

- Analog Outputs: 2 x 1/4" TRS balanced
- Headphone Output: 1 x 1/4" TRS (18 mW + 18 mW into 32 ohms)
- MIDI: 5-pin DIN in/out
- Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Bit Depth: 24-bit
- Mic Preamp EIN: -128 dBu or lower
- S/N Ratio: 110 dB (A-weighted)
- THD+N: 0.0013% (mic in)
- USB: Type-C, USB 2.0 High Speed
- Power: USB bus power (AC adapter PS-P520E optional for iOS)
- Dimensions: 7.32" x 2.56" x 6.30" / 186 x 65 x 160 mm (W x H x D)
- Weight: 2.43 lbs / 1.1 kg
In the Box
- Tascam US-2x2HR interface
- USB cable (Type-A to Type-C)
- DAW software installation guide
- DAW plug-in software installation guide set
- Owner's Manual (including warranty)
