Description

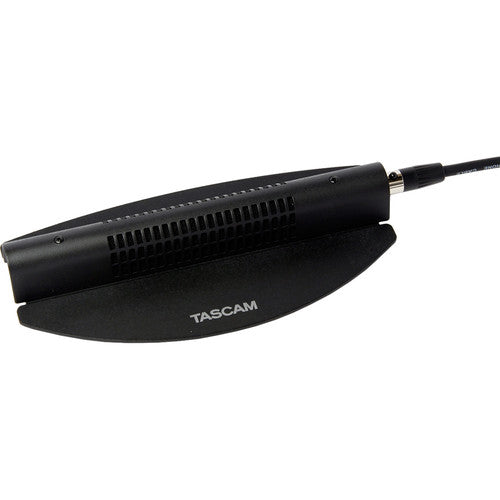

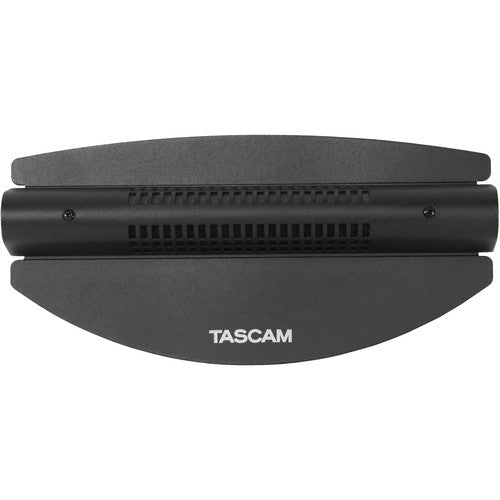

The Tascam TM-90BM is a boundary condenser microphone designed for low-profile audio capture in conference rooms, recording studios, live stages, and houses of worship. Its flat, unobtrusive profile sits directly on a table or stage floor, picking up sound evenly from a wide area while its half-supercardioid polar pattern provides directional focus and rejection of off-axis noise.

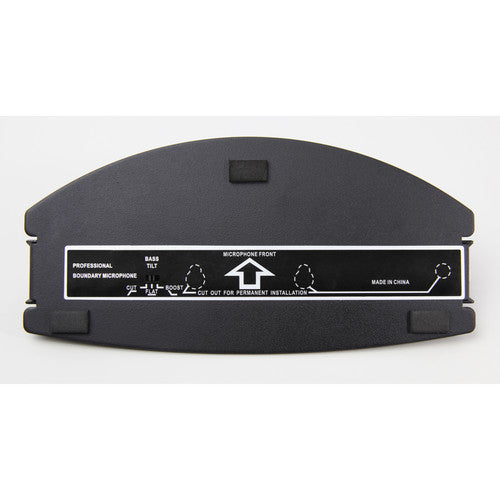

The back-electret condenser element delivers a 50 Hz to 18 kHz frequency response well suited to speech and many musical instruments. A 3-position Bass Tilt switch gives quick control over low-frequency content, and the 140 dB maximum SPL allows distortion-free capture of loud sources such as drums. The included dedicated patch cable terminates in an XLR 3-pin male connector for easy connection to any mixer or preamp that supplies 9 to 52V phantom power.
Specifications
- Element: Back-electret condenser
- Polar pattern: Half-supercardioid (unidirectional)
- Frequency response: 50 Hz to 18 kHz
- Sensitivity: -35 dB +/-3 dB (0 dB = 1 V/Pa at 1 kHz)
- Maximum SPL: 140 dB (at 1 kHz, 1% THD)
- S/N ratio: 68 dB
- Output impedance: 150 Ohm
- Load impedance: greater than 1 kOhm
- Output connector: 3-pin XLR male (dedicated patch cable)
- Phantom power: 9V to 52V DC
- Current draw: 3 mA
- Dimensions (W x H x D): 6.7 x 0.94 x 3.2 in / 170 x 24 x 81.5 mm
- Weight: 9.2 oz / 260 g (excluding cable)

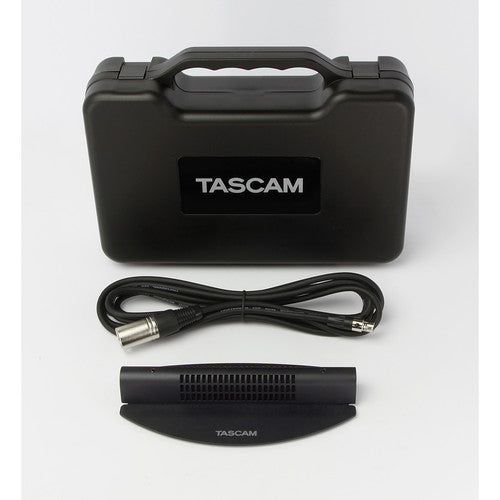

In the Box
- TM-90BM boundary microphone
- Dedicated patch cable (9.5 ft / 2.9 m, XLR male output)
- Hard carry case
- Owner's manual
