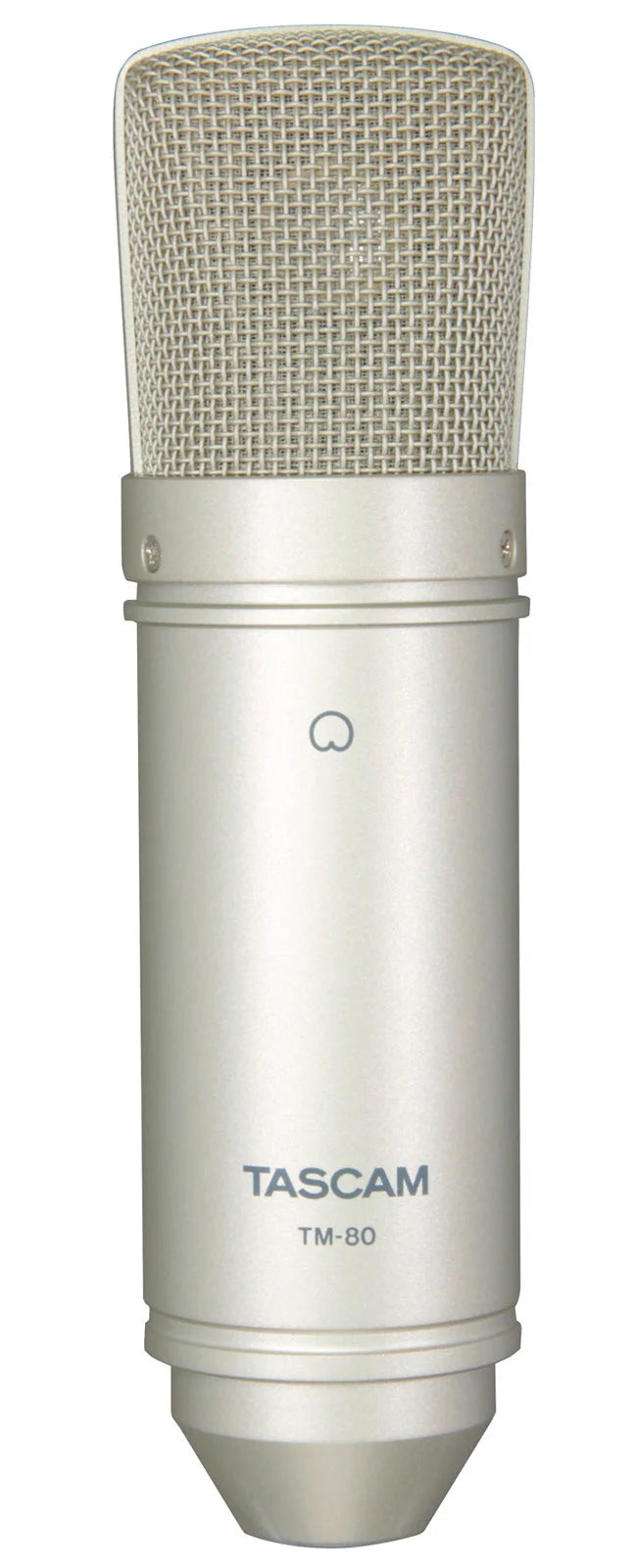

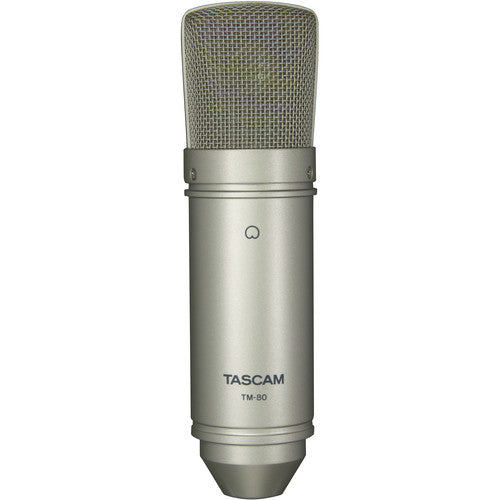

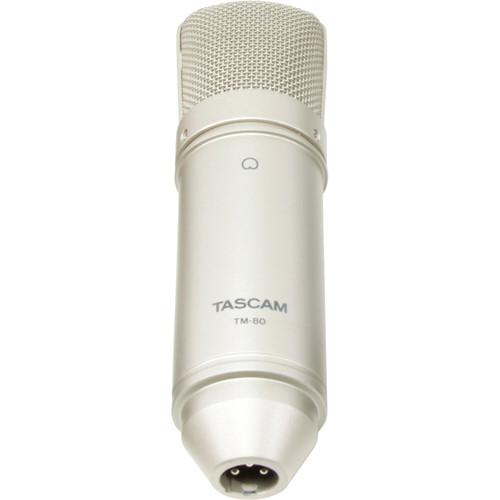

Tascam TM-80 Studio Condenser Microphone

The Tascam TM-80 is a cardioid condenser microphone designed and priced for home recording. Its 18 mm pure aluminum diaphragm and optimized internal circuitry deliver rich, full sound with reduced noise and distortion, making it a versatile choice for vocals, acoustic instruments, and guitar amps.

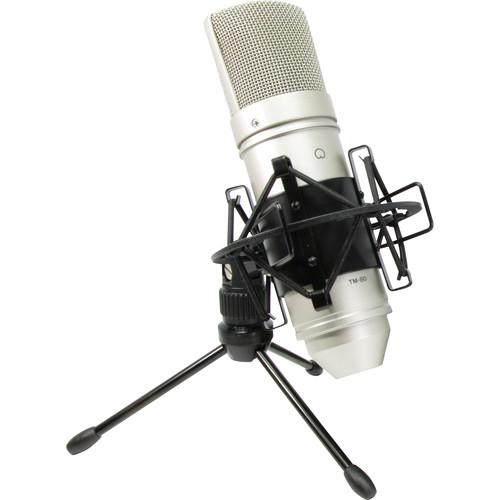

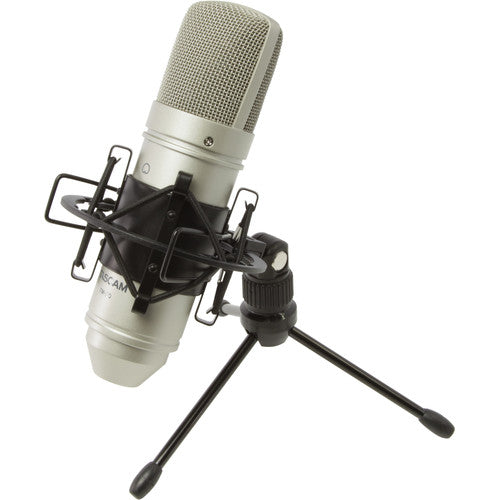

The cardioid polar pattern focuses pickup on the sound source in front of the mic while rejecting off-axis room ambience. With a maximum SPL of 136 dB, the TM-80 can safely handle loud sources like drums and amplifiers. A die-cast zinc housing provides durability, and the included shockmount, mini desktop stand, and 6 ft XLR cable make it ready to record right out of the box.

Specifications

• Element: Condenser (18 mm pure aluminum diaphragm)
• Polar pattern: Cardioid
• Frequency response: 20 Hz to 20 kHz
• Sensitivity: -38 dB +/-2 dB (0 dB = 1 V/Pa at 1 kHz)
• Maximum SPL: 136 dB (at 1 kHz, 1% THD)
• S/N ratio: 77 dB
• Self noise: 17 dB A-weighted
• Output impedance: 200 Ohm +/-30% (at 1 kHz)
• Load impedance: greater than 1 kOhm
• Power: DC 9 - 48V phantom power
• Housing: Die-cast zinc
• Dimensions: 1.9 in x 6.5 in / 48 mm (diameter) x 165 mm (length)
• Weight: 10.6 oz / 300 g

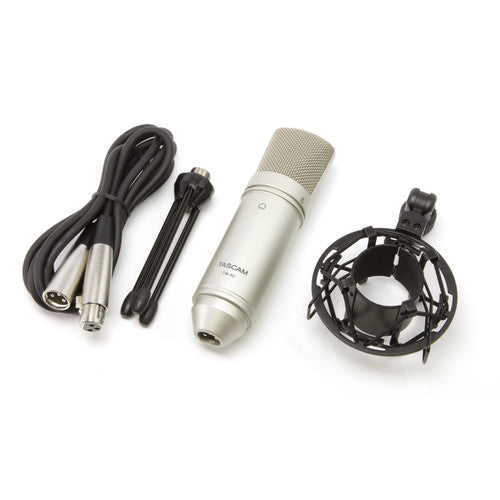

In the Box

• TM-80 condenser microphone
• Shockmount
• Mini desktop stand
• XLR mic cable (6 ft / 1.8 m, XLR male to XLR female)
• Owner's manual
