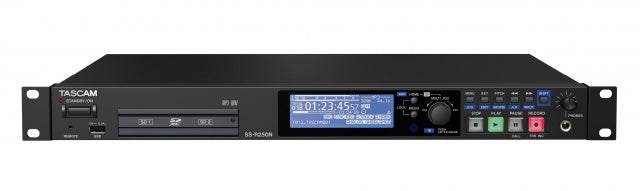

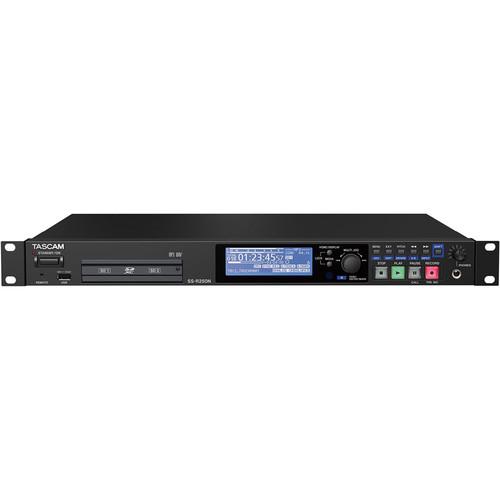

Tascam SS-R250N 1U Rackmount SD/USB Recorder/Player with Networking and Dante Support

The Tascam SS-R250N is a 1U rackmount two-channel solid-state recorder/player with Ethernet networking and optional Dante connectivity. Recording and playing from dual SD card slots and a front-panel USB port, the SS-R250N combines extensive I/O, FTP file management, event scheduling, and remote control for broadcast, installation, government, house-of-worship, and commercial AV applications.

Recording and Playback

Record in WAV (up to 96 kHz/24-bit) or MP3 formats to SD cards (up to 128 GB SDXC) or USB flash drives (up to 128 GB). Dual SD card slots support mirror recording for real-time backup and relay recording for automatic switchover. Auto Cue, Auto Ready, Incremental Play, pitch and key control, ducking, and A-B repeat provide flexible playback for any scenario.

Network Features

The FTP client enables automatic upload of recorded files to a server and download of audio files for scheduled playback. An Event List function automates recording, playback, and downloads on a timed schedule. SNTP keeps the internal clock accurate. Free iOS, Android, Windows, and Mac control apps manage transport and settings from any networked device. Q-SYS integration is available with firmware V2.15 or later.

Audio I/O

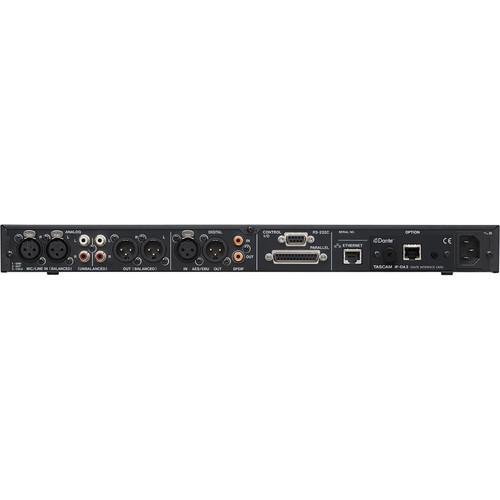

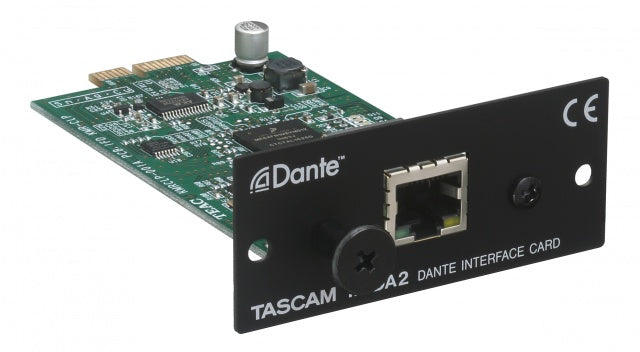

Balanced XLR and unbalanced RCA analog inputs and outputs support professional and consumer audio routing. AES/EBU and S/PDIF digital I/O handle sample rates up to 96 kHz. Dual rear-panel XLR mic inputs with +48V phantom power and an integrated ducking circuit serve paging and announcement needs. The optional IF-DA2 card adds Dante 2-channel in/out for network audio integration.

Specifications

• Recording Media: SD/SDHC/SDXC (up to 128 GB, dual slots), USB flash (up to 128 GB)
• File Formats: WAV (up to 96 kHz/24-bit), MP3
• Balanced Analog I/O: XLR in/out (+4 dBu nominal, up to +24 dBu max)
• Unbalanced Analog I/O: RCA in/out (-10 dBV nominal)
• Digital I/O: AES/EBU (XLR), S/PDIF (RCA)
• Mic Input: XLR with +48V phantom power and ducking
• Headphone Output: 1/4" TRS (45 mW + 45 mW into 32 ohms)
• Network: Ethernet (RJ-45, 100BASE-TX), FTP, SNTP, Telnet
• Control: RS-232C (D-sub 9-pin), Parallel (D-sub 25-pin), 2.5mm remote
• Optional: IF-DA2 Dante card, RC-SS150 flash start controller
• Frequency Response: 20 Hz - 20 kHz, +/-0.5 dB
• S/N Ratio: 106 dB or more
• THD: 0.002% or less
• EIN: -125 dBu or less
• Power: AC 100-240V, 50/60 Hz, 20W
• Form Factor: 1U rackmount
• Dimensions: 19.0" x 1.77" x 11.83" / 482.6 x 45 x 300.5 mm (W x H x D)
• Weight: 6.39 lbs / 2.9 kg

In the Box

• Tascam SS-R250N
• Power cord
• Wireless remote control (RC-10)
• Lithium coin battery (CR2025, pre-installed)
• Rackmount screw kit
• Security screw kit
• Owner's Manual (including warranty)
