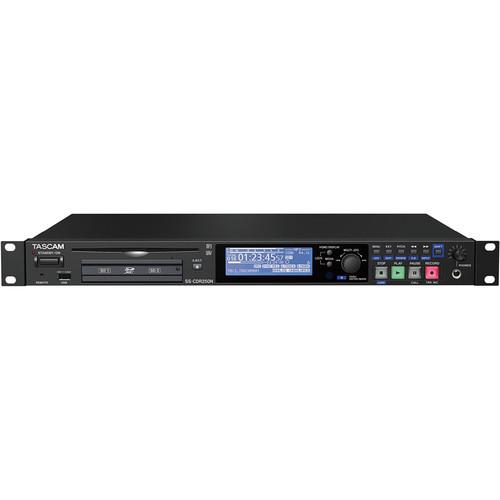

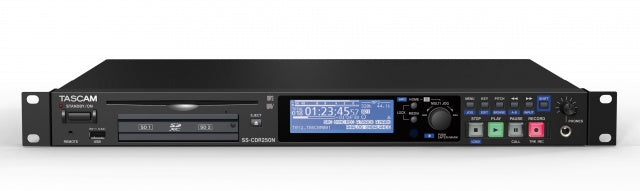

Tascam SS-CDR250N 1U Rackmount CD/SD/USB Recorder/Player with Networking

The Tascam SS-CDR250N is a 1U rackmount two-channel recorder/player that records and plays back from CD-R/CD-RW, dual SD card slots, and USB flash drives. An Ethernet port enables FTP file transfer, SNTP time synchronization, Telnet control, and app-based remote operation, making the SS-CDR250N a comprehensive recording and playback solution for broadcast, installation, PA, government, and commercial AV applications.

Recording and Playback

Record in WAV (up to 96 kHz/24-bit) or MP3 formats to SD cards (up to 128 GB SDXC), USB flash drives (up to 128 GB), or CD-R/CD-RW media. Dual SD card slots support mirror recording (simultaneous backup) and relay recording (automatic switchover when one card is full). Auto Cue, Auto Ready, Incremental Play, pitch control, key control, and A-B repeat cover a wide range of playback needs.

Network Features

The FTP client uploads recorded files automatically to a server or downloads audio files for scheduled playback. An Event List function automates recording, playback, and file downloads on a time-based schedule. SNTP synchronization keeps the internal clock accurate for time-critical events. Free iOS, Android, Windows, and Mac control apps provide transport and setting control from any device on the same network.

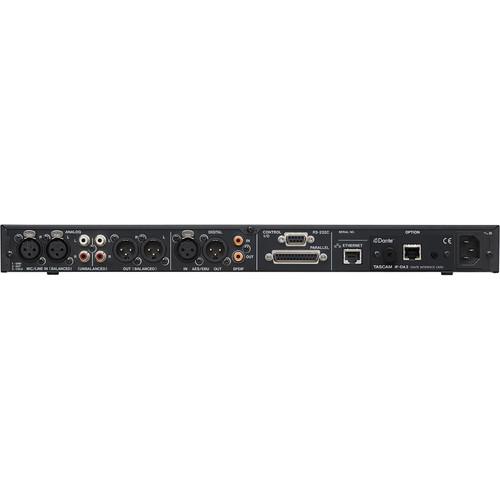

Audio I/O

Balanced XLR and unbalanced RCA analog inputs and outputs connect to professional and consumer gear. AES/EBU and S/PDIF digital I/O support sample rates up to 96 kHz. Rear-panel XLR mic inputs with +48V phantom power and a ducking function support paging and announcement applications. The optional IF-DA2 card adds Dante network audio (2-channel in/out). Q-SYS integration is available with firmware V2.15 or later.

Specifications

• Recording Media: CD-R/CD-RW, SD/SDHC/SDXC (up to 128 GB, dual slots), USB flash (up to 128 GB)
• File Formats: WAV (up to 96 kHz/24-bit), MP3, CD-DA
• Balanced Analog I/O: XLR in/out (+4 dBu nominal, up to +24 dBu max)
• Unbalanced Analog I/O: RCA in/out (-10 dBV nominal)
• Digital I/O: AES/EBU (XLR), S/PDIF (RCA)
• Mic Input: XLR with +48V phantom power
• Headphone Output: 1/4" TRS (45 mW + 45 mW into 32 ohms)
• Network: Ethernet (RJ-45), FTP, SNTP, Telnet
• Control: RS-232C (D-sub 9-pin), Parallel (D-sub 25-pin), 2.5mm remote
• Optional: IF-DA2 Dante card, RC-SS150 flash start controller
• Frequency Response: 20 Hz - 20 kHz, +/-0.5 dB
• S/N Ratio: 106 dB or more
• THD: 0.002% or less
• EIN: -125 dBu or less
• Power: AC 100-240V, 50/60 Hz, 22W
• Form Factor: 1U rackmount
• Dimensions: 19.0" x 1.77" x 11.83" / 482.6 x 45 x 300.5 mm (W x H x D)
• Weight: 7.05 lbs / 3.2 kg

In the Box

• Tascam SS-CDR250N
• Power cord
• Wireless remote control (RC-10)
• Lithium coin battery (CR2025, pre-installed)
• Rackmount screw kit
• Security screw kit
• Owner's Manual (including warranty)
