Description

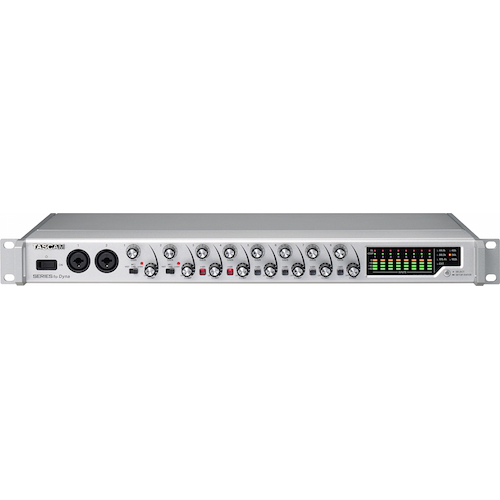

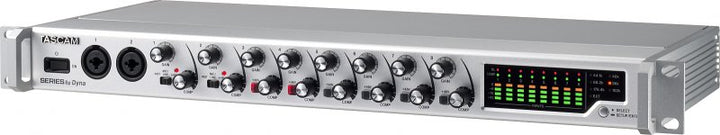

The Tascam Series 8p Dyna is a 1U rackmount 8-channel microphone preamplifier and A/D converter with a single-knob analog compressor on every channel. Featuring Tascam's HDIA (High Definition Instrumentation Architecture) preamp design with an EIN of -127 dBu and support for sampling rates up to 192 kHz, it serves as a premium front-end for recording interfaces, a stand-alone mic preamp rack, or an expansion unit for Tascam Series 102i/208i and other ADAT/S/MUX-equipped interfaces.
Preamps and Compression
Eight HDIA preamps on XLR/TRS combo jacks deliver transparent, natural sound with 52 dB of gain range and individually switchable +48V phantom power. Channels 1-2 include front-panel Hi-Z instrument inputs. Each channel has its own single-knob analog compressor (2:1 ratio, 40 dB threshold range) with true hardware bypass, handling hot input signals and creating smooth, controlled audio without digital processing artifacts.
Digital Outputs

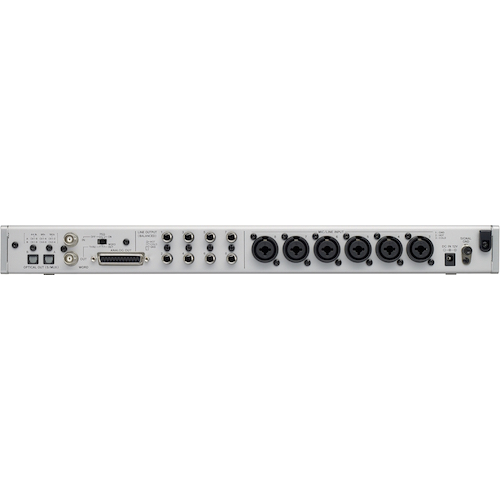

Dual S/MUX optical ports output all 8 channels at 44.1/48 kHz, or 4 channels per port at higher sample rates via S/MUX2 (88.2/96 kHz) and S/MUX4 (176.4/192 kHz). A 25-pin D-Sub connector provides 8 balanced analog line outputs, and eight individual 1/4" TRS jacks offer direct channel access. Word clock I/O (BNC, with IN/OUT/THRU switch and 75-ohm termination) ensures perfect synchronization with other digital equipment.
Specifications
- Mic/line inputs: 8 x XLR/TRS combo (balanced)
- Instrument inputs: 2 x 1/4" TS (front panel, channels 1-2)
- Analog outputs: 8 x 1/4" TRS balanced + 1 x D-Sub 25-pin
- Digital outputs: 2 x optical S/MUX (supports S/MUX2 and S/MUX4)
- EIN: -127 dBu or lower
- THD+N: 0.0007%
- Dynamic range: 116 dB
- Crosstalk: -119 dB
- Gain range: 52 dB
- Compressor: single-knob analog, 2:1 ratio, true bypass
- Phantom power: +48V individually switchable
- Sampling rates: 44.1/48/88.2/96/176.4/192 kHz
- Bit depth: 24-bit
- Word clock: BNC in/out (with IN/OUT/THRU switch, 75-ohm termination)
- Form factor: 1U rackmount (19")
- Power: DC 12V (included AC adapter PS-P1230)
- Power consumption: 16W
- Dimensions: 482 x 44.8 x 228.8 mm (18.98 x 1.76 x 9.01 in), including protrusions
- Weight: 2.6 kg (5.7 lb)
- Operating temperature: 0-40 °C
In the Box
- AC adapter (Tascam PS-P1230 with four exchangeable plug inserts)
- Rackmount screw kit
- Owner's manual with warranty
