Description

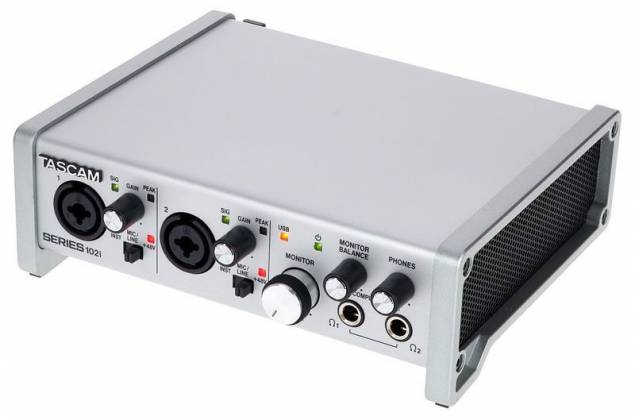

The Tascam Series 102i is a 10-in/2-out USB audio and MIDI interface built for studio, home, and live recording. Two Ultra-HDDA (High Definition Discrete Architecture) mic preamps deliver transparent, ultra-low-noise performance with an EIN of -129 dBu, while an S/MUX optical input adds up to eight channels of expansion for a total of ten inputs. The interface records and plays back at up to 24-bit/192 kHz resolution over USB 2.0.
Preamps and Inputs

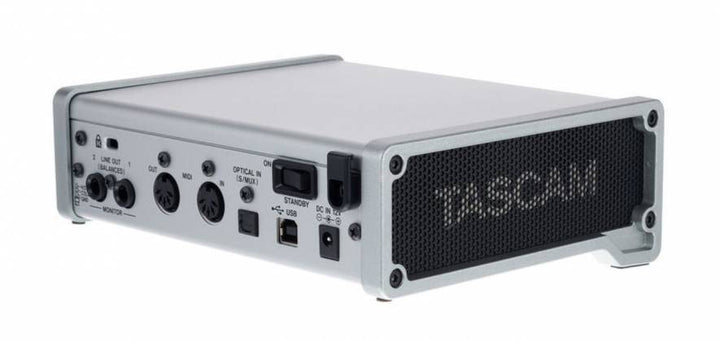

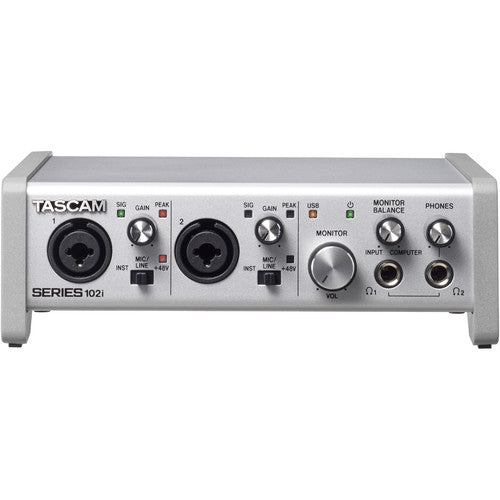

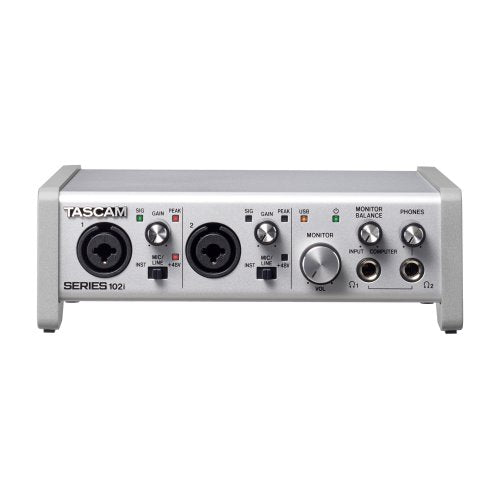

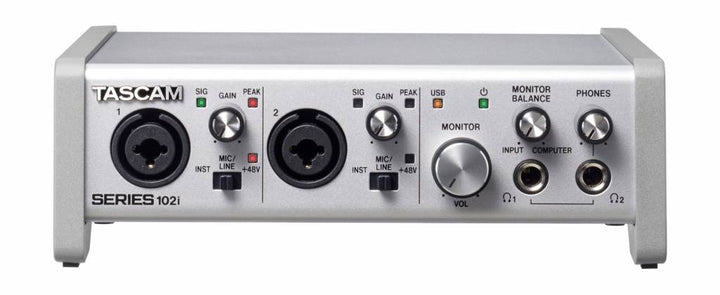

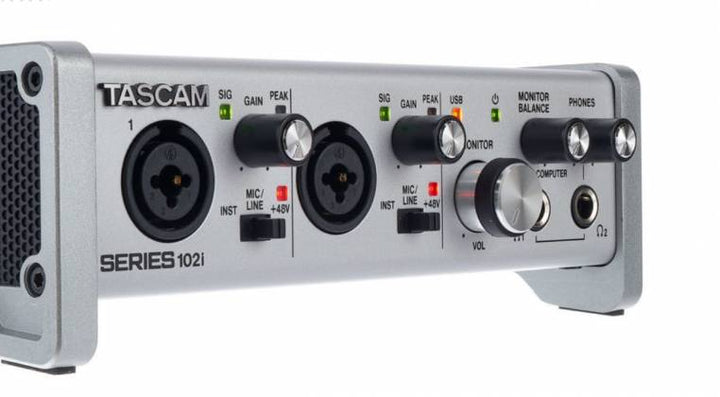

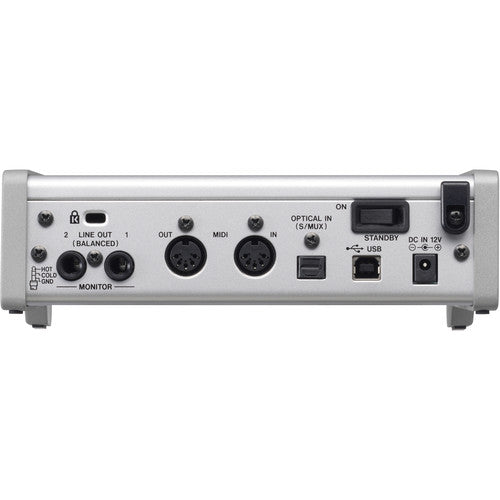

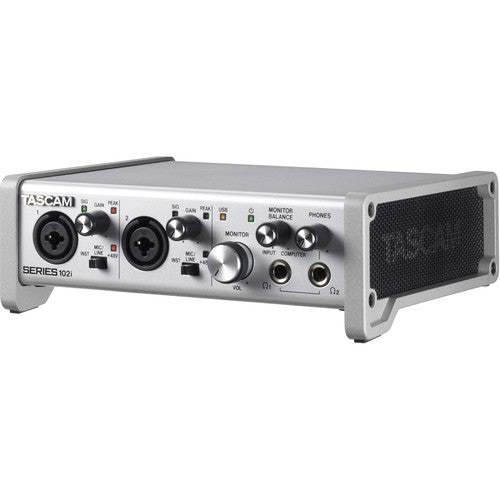

The front panel provides two combo XLR/TRS inputs switchable between mic/line and instrument (Hi-Z) modes, each with independent +48V phantom power. The rear-panel optical S/MUX port accepts up to eight additional channels from any ADAT- or S/MUX-compatible preamp or converter, letting you scale the system as your needs grow.
Built-In DSP and Software Control
An onboard DSP mixer with digital reverb, compressor, phase invert, and 4-band EQ processes each channel internally, eliminating latency and reducing the load on your computer. The free Tascam Control software (Settings Panel) manages faders, routing, and effects from a single interface, letting you route any analog, optical, or USB input to any output.
Monitoring and Outputs

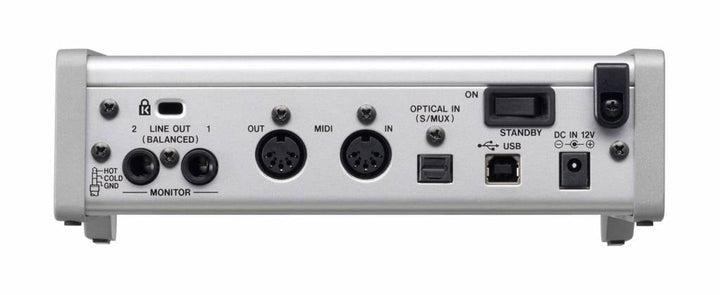

Two 1/4" TRS balanced line outputs feed your monitors, and a large front-panel Monitor knob provides quick level adjustment. A Monitor Balance control mixes live input with computer playback for zero-latency monitoring. Two independent headphone outputs with their own level controls support simultaneous monitoring for two performers.
Specifications
- Analog Inputs: 2 x XLR/TRS combo (mic/line/instrument)
- Digital Input: 1 x S/MUX optical (up to 8 channels)
- Analog Outputs: 2 x 1/4" TRS balanced
- Headphone Outputs: 2 x 1/4" TRS (18 mW + 18 mW into 32 ohms)
- MIDI: 5-pin DIN in/out
- Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Bit Depth: 16/24-bit
- Mic Preamp EIN: -129 dBu or lower
- Dynamic Range: 109 dB (S/N, A-weighted)
- THD: 0.0016% (mic in)
- USB: Type-B, USB 2.0 High Speed
- Power: DC 12V via included AC adapter (PS-P1220E)
- Dimensions: 7.32" x 2.56" x 6.30" / 186 x 65 x 160 mm (W x H x D)
- Weight: 2.43 lbs / 1.1 kg

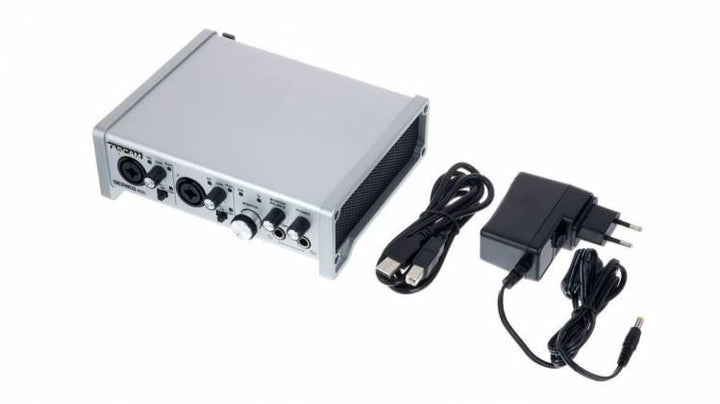

In the Box
- Tascam Series 102i interface
- AC adapter (PS-P1220E) with 3 alternate plugs
- USB cable
- DAW software installation guides
- DAW plug-in software installation guides
- Owner's Manual (including warranty)
