Description

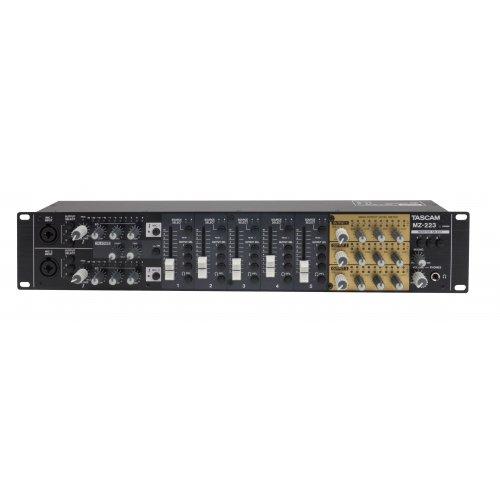

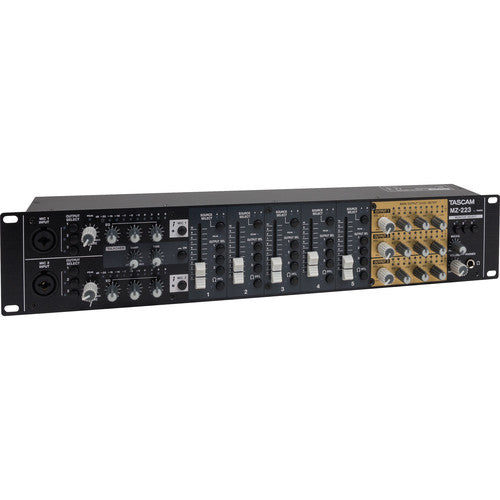

The Tascam MZ-223 is a 2U rackmount zone mixer designed for fixed installations in hotels, restaurants, meeting rooms, schools, houses of worship, and retail spaces. It provides five stereo input channels (10 RCA pairs total) with A/B source selection, two front-panel mic inputs with XLR/1/4" combo jacks, and three independent zone outputs, each with balanced XLR and unbalanced RCA connectors. Familiar slider controls and per-channel 3-band EQ make operation straightforward for non-technical staff.
Inputs and Routing
Five stereo line input channels each offer two pairs of RCA inputs with A/B source selection, a volume slider, and output routing buttons for assignment to any combination of the three zones. Channels 1 and 2 include a switchable phono preamp for turntable connection. Two front-panel mic inputs (combo XLR/1/4") with independent volume controls, 3-band EQ, and output select buttons handle announcements and paging. The Talkover function automatically ducks background music when a microphone is active.
Outputs

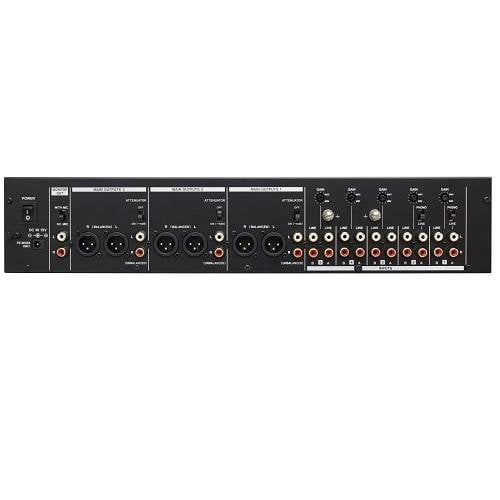

Three zone main outputs provide both balanced XLR and unbalanced RCA connectors, each with a dedicated volume control, 3-band EQ, and LED level meter. A separate monitor output (RCA) and headphone output (1/4") with level control allow pre-fader monitoring of input channels and outputs.
Specifications
- Line input channels: 5 stereo (10 RCA pairs, channels 1-2 with switchable phono preamp)
- Mic inputs: 2 front-panel combo XLR/1/4"
- Zone outputs: 3 (balanced XLR + unbalanced RCA per zone)
- Monitor output: 1 stereo RCA pair
- Headphone output: 1 x 1/4" stereo (50 mW + 50 mW at 32 ohm)
- EQ: 3-band per zone output and per mic input
- Form factor: 2U rackmount (19")
- Power: AC 100-240V, 50/60 Hz (included AC adapter PS-M1524)
- Power consumption: 35W
- Dimensions: 482 x 88 x 93.2 mm (19.0 x 3.46 x 3.67 in), including protrusions
- Weight: 2.5 kg (5.5 lb)
- Operating temperature: 5-35 °C
In the Box
- AC adapter (Tascam PS-M1524)
- AC adapter cords
- Rackmount screw kit
- Owner's manual with warranty
