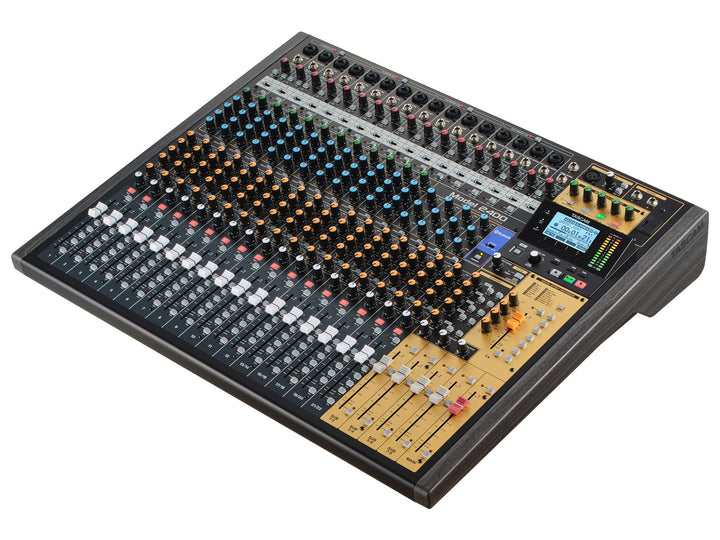

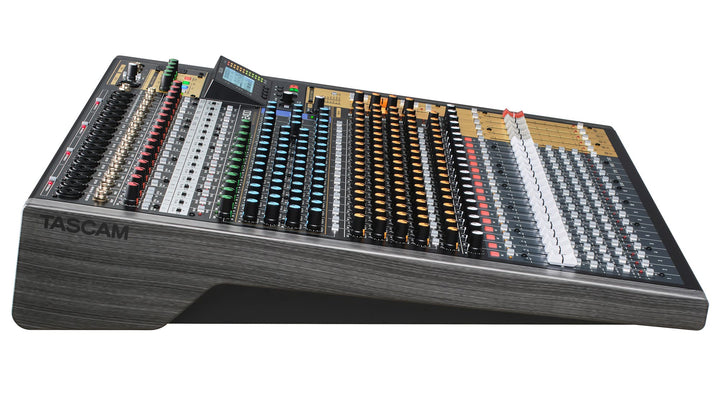

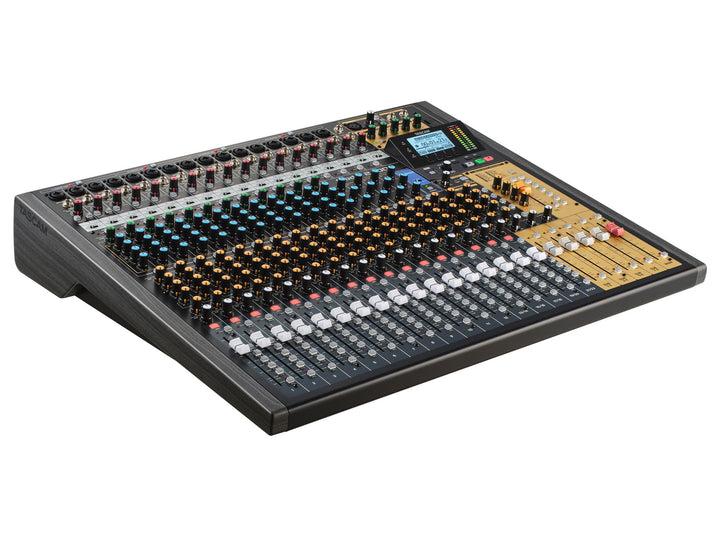

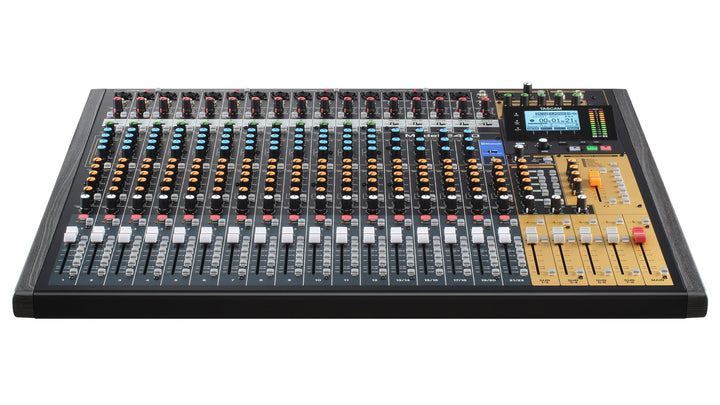

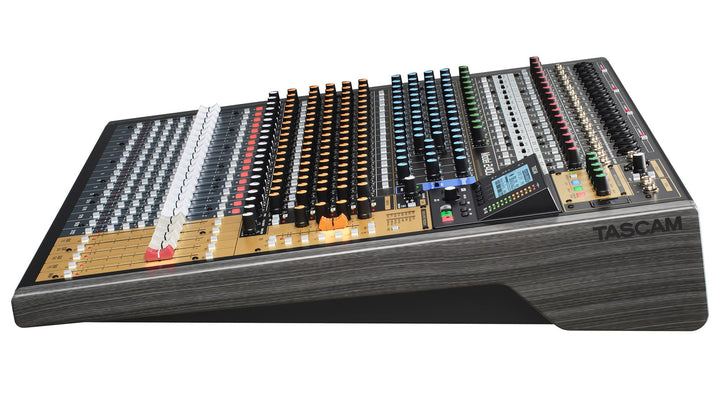

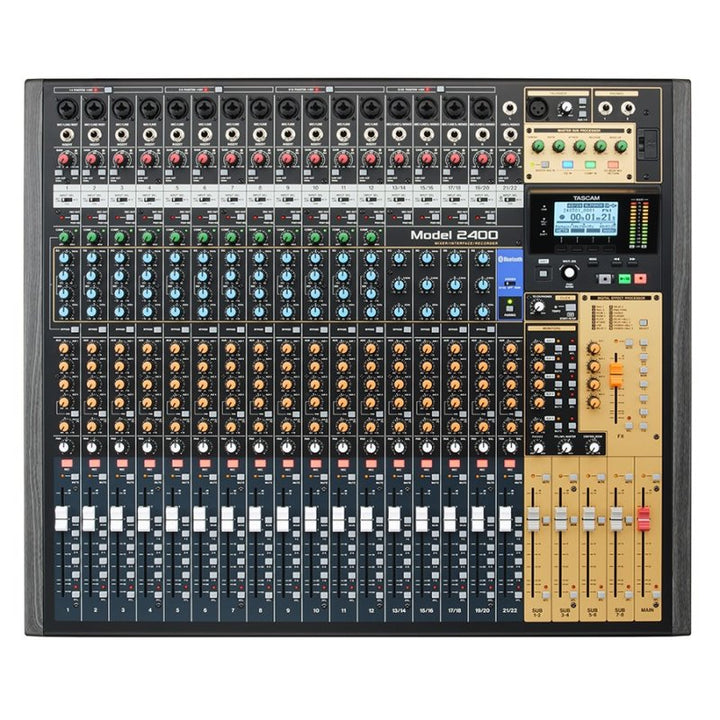

MODEL2400 24-Track Flagship Analog Recording Console & Live Mixer with Audio Interface

Improving on the Model 24 in almost every way, the  Model 2400  from  TASCAM  is a 24-in / 22-out flagship recording and mixing console ideal for live and studio applications. Capable of 24-track internal recording via SDXC card and external 24x22 USB interface duties, the Model 2400 can fill many roles for the modern recordist.

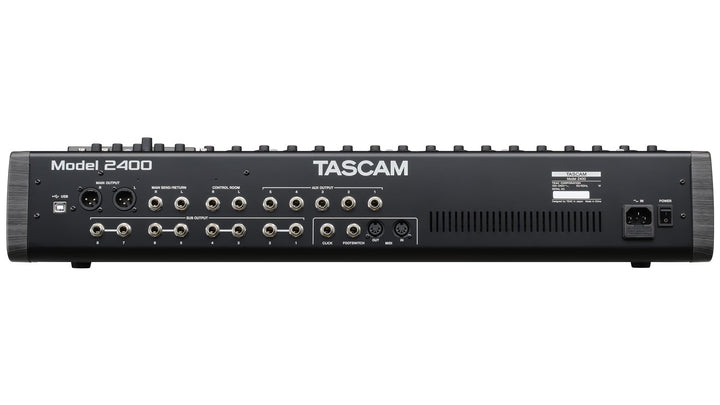

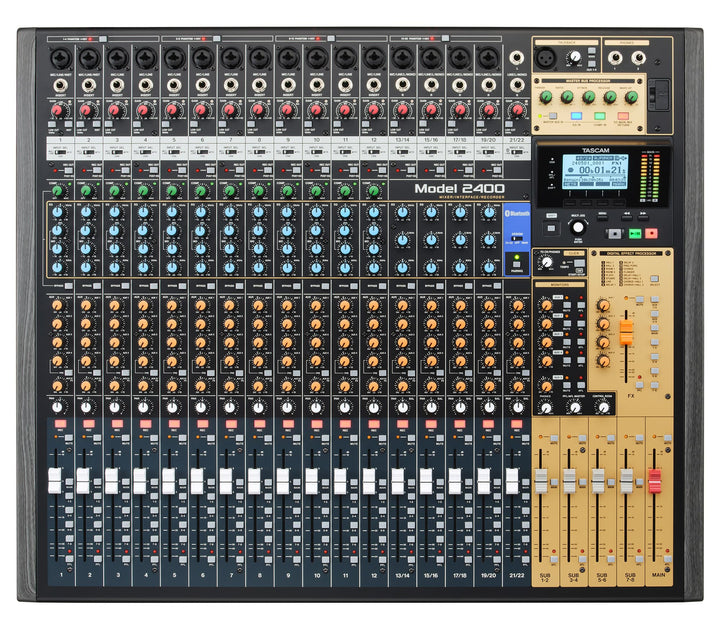

The extensive I/O includes (but is not limited to) 12 TASCAM HDDA (High-Definition Discrete Architecture) XLR mic preamps and four standard mic preamps, five aux sends, four stereo subgroups, main L/R XLR outs, Control Room output, 12 inserts (plus a stereo master insert), a 1/4" click output with tap tempo, and MIDI I/O for controlling and syncing with external MIDI gear, from drum machines to FX processors. While the console can record on it's own, it is also ready for easy integration with computer-based DAWs with built-in DAW transport controls. You also get all the typical TASCAM mixer controls expected, including 3-band EQ with sweepable mids on channels 1 to 12, 1-knob compression, a 100 Hz low-cut filter, plus PFL/AFL functions, and a new assignable 60mm fader assigned to the 16 built-in TASCAM FX by default, which include reverb, delay, and chorus. The Model 2400 includes a power cord.

Streamline Your Mixing with Onboard Processing

The Model 2400's versatility doesn't compromise its mixing capabilities one bit. With per-channel compression, multiple sub groups, and master stereo bus processing, including compression and EQ, you'll have the pro-level mix control you need in any scenario. Taking your project from tracking to a final master on the Model 2400 couldn't be simpler.

22 Channels and 24 Tracks

With comprehensive 22-channel mixing capabilities, the Model 2400 is an ideal studio and live mixer for everything from larger combos and jazz ensembles to orchestra and choir ensembles. And when it comes to recording, no additional interface or computer are required.

Insert Professional Processors and FX

Insert points on channels 1 to 12 allow you to easily integrate a studio rack full of processors and FX units. And, in addition to the onboard Master Bus processing, a send/return loop on the Main output allows you to connect external mastering gear such as compressors, EQs, stereo imagers, and sonic exciters.

Ample Aux and Sub Outputs

With 5 aux sends and 4 stereo sub groups, Model 2400 handles advanced mixing duties with ease. Create more monitor mixes without sacrificing an aux for effects.

Connect multiple pairs of studio monitors for checking your mixes. In your studio or on stage, Model 2400 delivers the comprehensive connectivity and routing you need.

Professional Recording Capabilities

Model 2400 seamlessly integrates multitrack recording with studio and live mixing. With the ability to record 24 channels (22 inputs plus the stereo master) of high-quality audio direct to SD / SDXC card media, Model 2400 is a powerful recording solution even if you're a DAW-less producer.

Seamless DAW Integration and Transport Control

The Model 2400 streamlines your workflow even when you're using it in a typical studio environment with a computer-based DAW. The onboard 24 x 22 USB audio interface eliminates the need for external interfaces and converters. And thanks to dedicated transport buttons linked to your DAW, you can keep your hands on your console instead of a mouse.

Sound with Excitement

TASCAM Ultra HDDA (High-Definition Discrete Architecture) mic preamps give Model 2400 the vibrant analog sound that makes harmonics come alive. With Ultra HDDA, any sound source will be represented with the utmost clarity and richness, and with an ultralow noise floor.

Monitor Your Signal Virtually

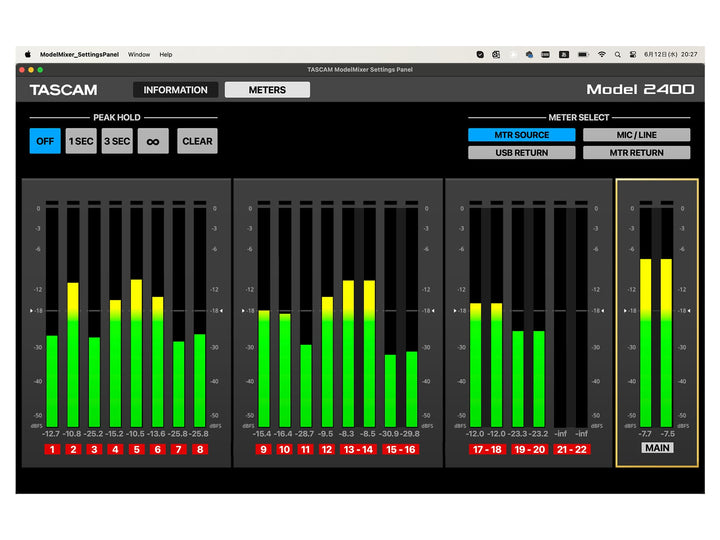

With the Meter Bridge app, users can take advantage of a digital meter bridge by connecting the Model 2400 via USB to a PC or Mac. Set peak hold times, monitor the input, MTR, or USB signal, all while being able to scale the GUI from a small window to full screen. Take it a step further by porting the app from your computer to a dedicated monitor of your choosing.

MIDI Interface

Model 2400's comprehensive MIDI functionality allows full integration with MIDI-based production setups. From controlling drum machines and synthesizers from your DAW software to synchronizing external effects processors to the tempo of your music and creating click tracks, Model 2400 offers the MIDI functionality you need to make it happen.

Features

• 24-track multitrack recorder using SDXC SD card (punch-in/out supported)
• 24 in / 22 out USB audio interface
• 22 analog input channel modules with 16 XLR Mic Pre-amps, utilizing TASCAM ultra HDDA Mic Pre-amp technologies and a one knob compressor (Ch 1-12)
• Equipped with input inserts (SEND/RETURN) on channels 1 - 12
• 5 Aux (4 Aux plus internal FX) sends, 4 stereo sub group and Main L/R
• MIDI in/out allows USB MIDI interface and MIDI sync, 1/4" audio click output with tempo control
• DAW transport control and REC READY control via HUI/MCU
• Dedicated Settings Panel application with Meter bridge

Specifications

SD / FAT16, SDHC / FAT32, SDXC (up to 512 GB) / exFAT

1: HALL 1  /  2: HALL 2  /  3: ROOM 1  /  4: ROOM 2  /   5: PLATE  /  6: STUDIO  /  7: LIVE  /  8: DELAY 1  /  9: DELAY 2  /  10: PING PONG  /  11: CHORUS  /  12: FLANGER  /  13: DELAY + HALL 1  /  14: DELAY + HALL 2  /  15: CHORUS + HALL 1  /  16: CHORUS + HALL 2

Windows computer with a USB 2.0 (or higher)

Audio Performance

Recording Time

Bluetooth
