Description

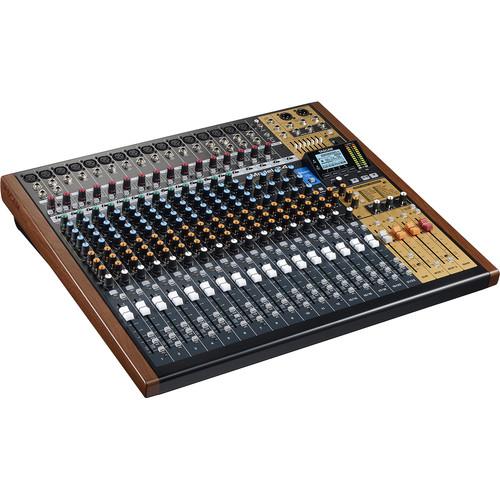

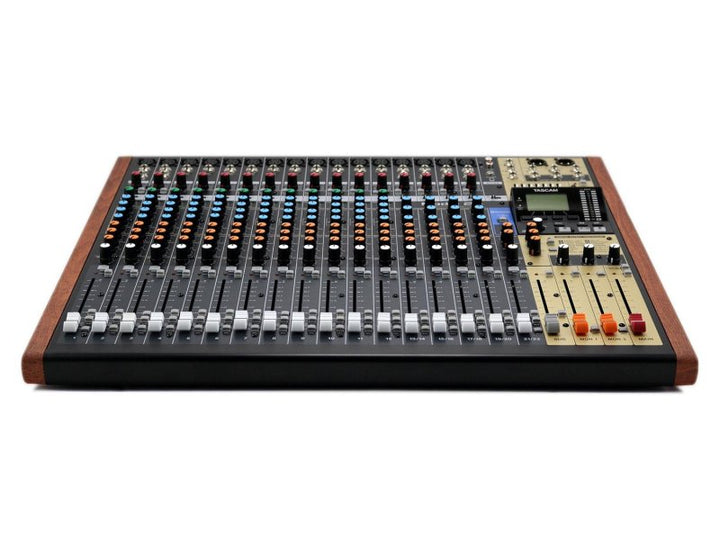

The Tascam Model 24 is a 22-channel analog mixing console with an integrated 24-track multitrack recorder and 24-in/22-out USB audio interface. With 100mm long-throw faders, 16 Ultra HDDA mic preamps, built-in effects, and a 7-band graphic EQ, the Model 24 is a complete solution for live sound, studio recording, and houses of worship that need no-compromise analog mixing with the convenience of digital multitrack recording.
Mixer

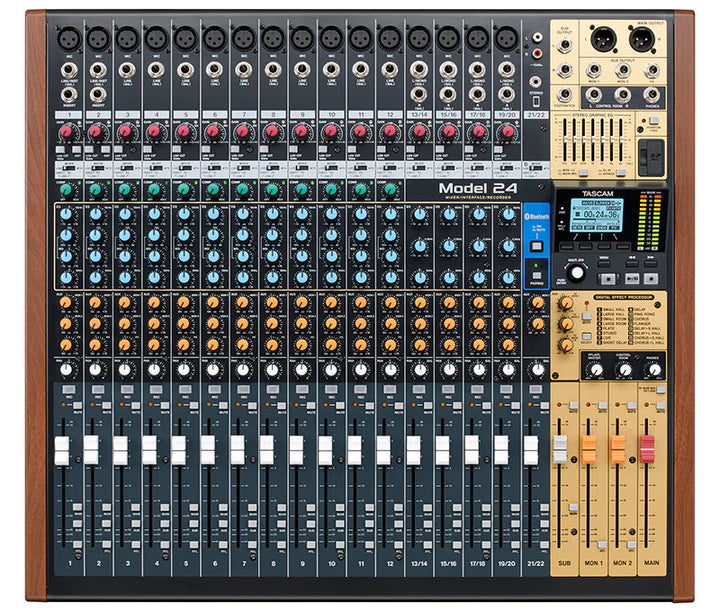

Twenty-two input channels with 100mm long-throw faders deliver precise, professional mix control. Channels 1-12 are mono with XLR/TRS combo jacks, a single-knob compressor, 3-band EQ with sweepable mid, and a 100 Hz low-cut filter. Channels 13/14 through 19/20 are stereo pairs with mic preamps and line inputs. Channels 1-2 include Hi-Z instrument inputs and insert points. A Sub Group section, 4 Aux sends, and a 7-band graphic EQ on the main output round out the mixing capabilities.
Multitrack Recorder
The internal 24-track recorder captures all 22 input channels plus the stereo master simultaneously in WAV format at up to 48 kHz/24-bit to SD, SDHC, or SDXC cards up to 512 GB. Overdubbing, punch-in/out, and flexible track routing make it easy to capture everything from a full-band live show to layered studio productions without a computer.
USB Audio Interface
As a 24-in/22-out USB audio interface, the Model 24 integrates directly with any DAW on Windows, macOS, or iOS/iPadOS. Route DAW tracks back through the console's analog signal path for summing and hands-on mixing with genuine analog warmth.
Specifications
- Input channels: 22 (12 mono + 4 stereo pairs + stereo return)
- Mic preamps: 16 Ultra HDDA with +48V phantom power
- Faders: 21 x 100mm long-throw
- Recording: 24 tracks (22 + stereo mix), WAV (BWF), 44.1/48 kHz, 16/24-bit
- Recording media: SD/SDHC/SDXC up to 512 GB (Class 10 or higher)
- USB audio: 24-in/22-out, USB 2.0
- Effects: 16 presets
- EQ: 3-band with sweepable mid (ch 1-12), 7-band graphic EQ on main bus
- Aux sends: 4
- Power: AC 100-240V, 50/60 Hz
- Power consumption: 52W
- Dimensions: 576 x 112.5 x 513 mm (22.67 x 4.43 x 20.20 in), including side panels and protrusions
- Weight: 10.2 kg (22.49 lb)
- Operating temperature: 5-35 °C (41-95 °F)
In the Box
- AC power cord
- Owner's manual with warranty
- TASCAM ID registration guide
