Description

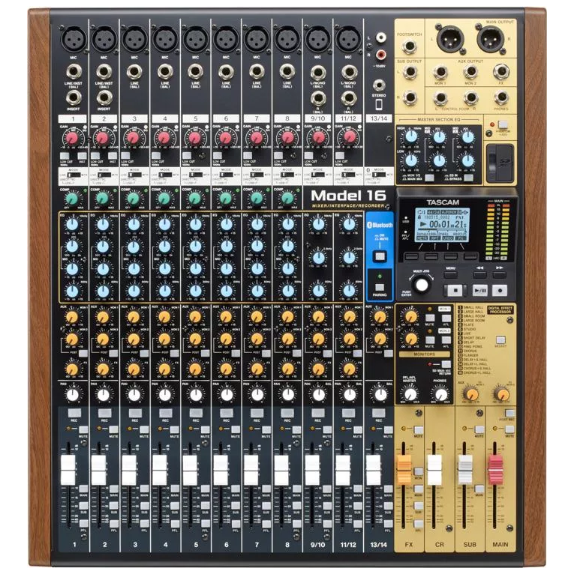

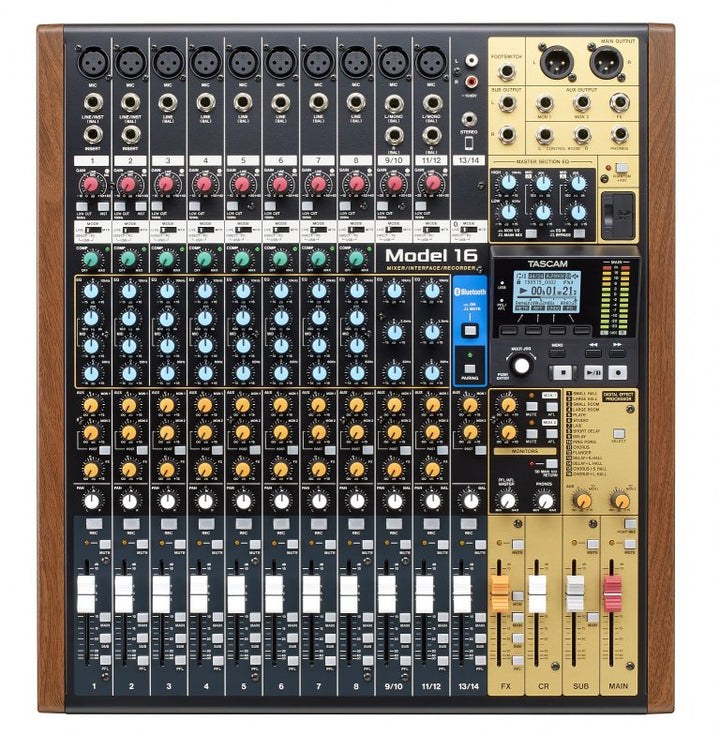

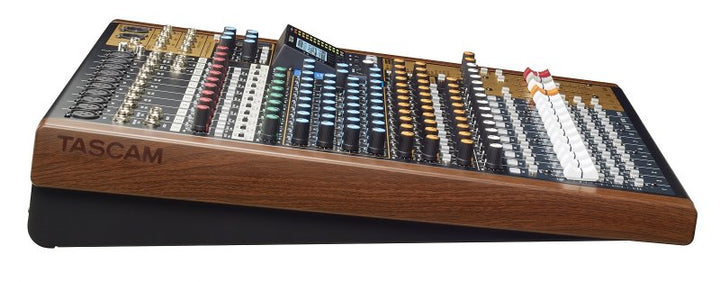

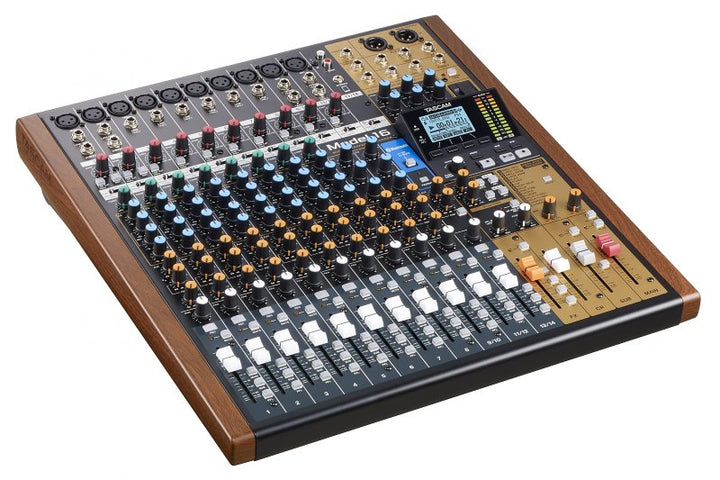

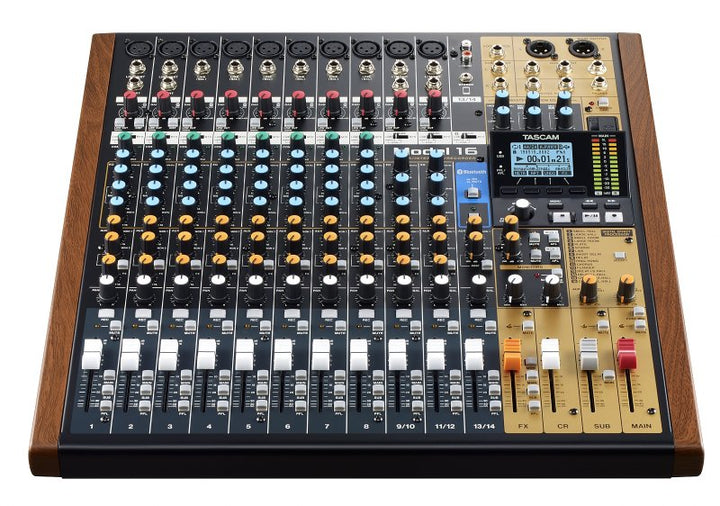

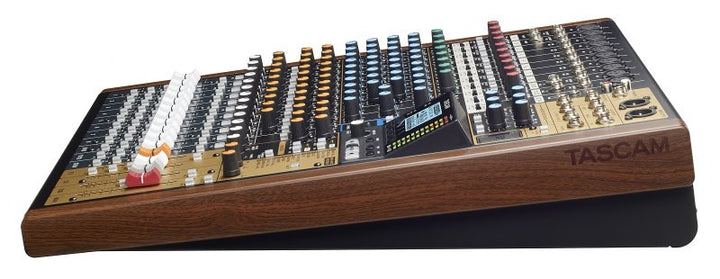

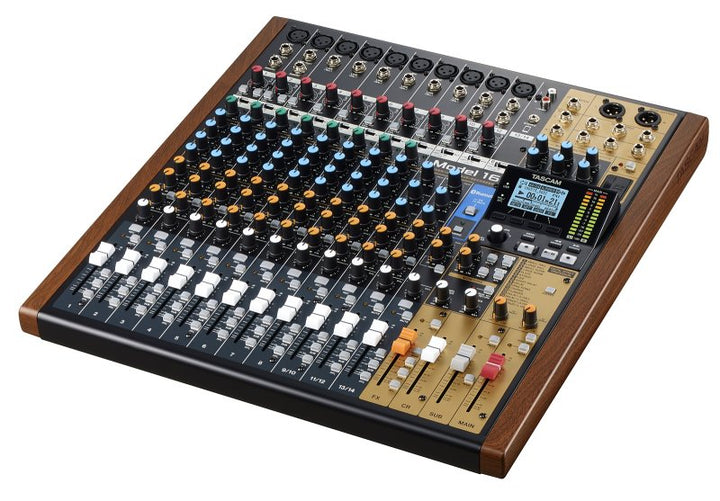

The Tascam Model 16 is a 14-channel analog mixing console with a built-in 16-track multitrack recorder, 16-in/14-out USB audio interface, digital effects, and Bluetooth wireless input. Designed for live sound, rehearsal, studio recording, and houses of worship, the Model 16 combines hands-on analog mixing with powerful digital recording in a single compact console.
Mixer
Fourteen input channels with 60mm faders provide complete control. Channels 1-8 feature Tascam Ultra HDDA mic preamps with individually switchable +48V phantom power, a single-knob compressor, and 3-band EQ with sweepable mid. Channels 1-2 include Hi-Z instrument inputs and insert points. A Bluetooth 5.0 stereo input (with selectable RCA and 3.5mm mini jack) lets you stream audio wirelessly from any device. A three-position input selector (Live/PC/MTR) on each channel enables instant source switching between live inputs, computer playback, and recorder tracks.
Multitrack Recorder
The internal 16-track recorder captures 14 input channels plus the stereo mix simultaneously in WAV format at up to 48 kHz/24-bit to SD, SDHC, or SDXC cards up to 512 GB. Overdubbing, punch-in/out (up to 8 tracks simultaneously), and track export are supported for flexible production workflows.
USB Audio Interface
The Model 16 operates as a 16-in/14-out USB audio interface, allowing direct integration with any DAW on Windows, macOS, or iOS/iPadOS. Route recorded tracks back through the console for analog summing and hands-on mixing with genuine analog character.
Specifications
- Input channels: 14 (10 mono XLR/TRS + 2 stereo line pairs)
- Mic preamps: 10 Ultra HDDA with +48V phantom power
- Faders: 15 x 60mm
- Recording: 16 tracks (14 + stereo mix), WAV (BWF), 44.1/48 kHz, 16/24-bit
- Recording media: SD/SDHC/SDXC up to 512 GB (Class 10 or higher)
- USB audio: 16-in/14-out, USB 2.0
- Effects: 16 presets (reverbs, delays, chorus, flanger)
- EQ: 3-band with sweepable mid (ch 1-8), 3-band on ch 9-14
- Bluetooth: 5.0 (A2DP)
- Power: AC 100-240V, 50/60 Hz
- Power consumption: 40W
- Dimensions: 430 x 112.9 x 463 mm (16.9 x 4.45 x 18.2 in), including side panels and protrusions
- Weight: 7.0 kg (15.44 lb)
- Operating temperature: 5-35 °C (41-95 °F)
In the Box
- AC power cord
- Owner's manual with warranty
- TASCAM ID registration guide
