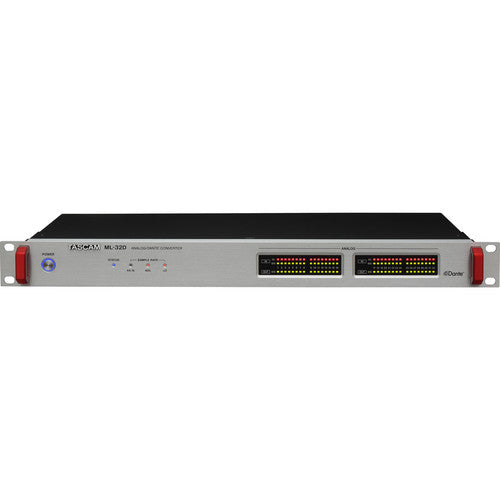

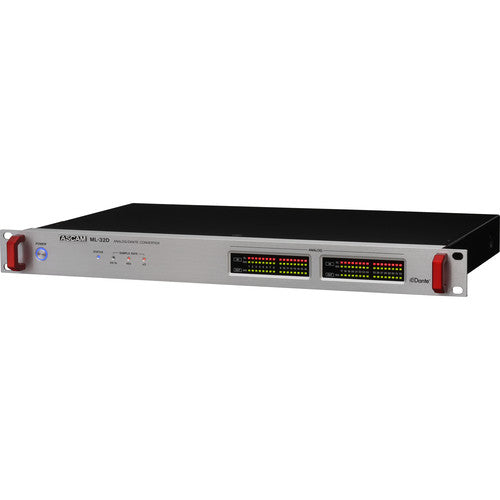

Tascam ML-32D 32-Channel Analog/Dante Converter

The Tascam ML-32D is a professional 1U rackmount converter that bridges 32 channels of balanced analog audio with a Dante network. It doubles the channel count of the ML-16D in the same form factor, providing high-density analog-to-Dante conversion for large-scale installations, broadcast facilities, and live production.

32-Channel Bidirectional Conversion

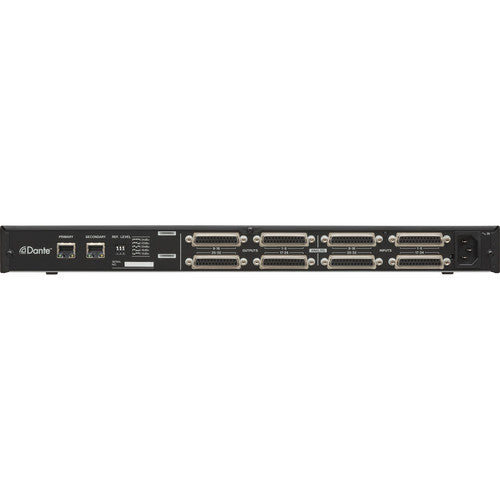

The ML-32D provides 32 analog line inputs and 32 analog line outputs via eight D-Sub 25-pin connectors (four input, four output). This allows simultaneous send and return of audio between analog equipment and a Dante network. D-Sub connections work with microphone preamplifiers, console mixers, audio interfaces, amplifiers, and Euroblock devices.

Dante Redundancy

Primary and secondary Dante ports (RJ-45, 1000BASE-T) support redundant networking. If the primary network path fails, the ML-32D automatically switches to the secondary route with no audio interruption or noise artifacts.

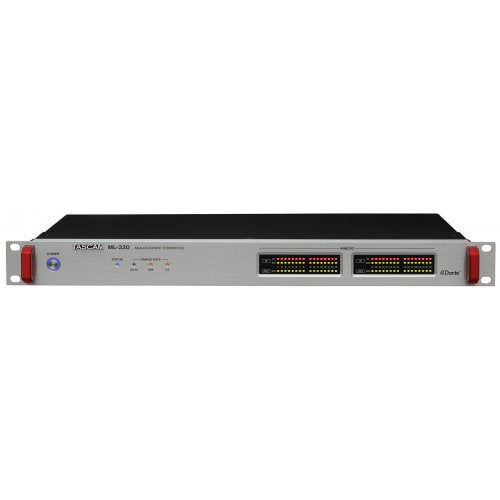

Signal Monitoring and Reference Levels

Front-panel signal/overload indicators monitor all analog input and output channels. The signal LED activates at -60 dBFS. Five selectable reference levels (+24, +22, +20, +18, and +15 dBu maximum) accommodate broadcasting, PA, and recording environments via rear-panel DIP switches.

Breakout Box Compatibility

D-Sub outputs connect directly to optional Tascam breakout boxes: the BO-32DE for Euroblock termination or the BO-16DX/IN and BO-16DX/OUT for XLR connections. Pin assignments conform to AES59-2012.

Network Compatibility

The ML-32D supports AES67 for interoperability with AES67 and Ravenna systems. SMPTE ST 2110-30 is supported with Dante firmware V1.2.0 and Dante Domain Manager v1.1 or later. Firmware is updatable via the Dante port.

Specifications

• Analog inputs: 32 balanced line via 4x D-Sub 25-pin
• Analog outputs: 32 balanced line via 4x D-Sub 25-pin
• Dante I/O: Primary + Secondary RJ-45 (1000BASE-T)
• Sample rates: 44.1/48/88.2/96 kHz, 16/24-bit
• Maximum input/output level: +24 dBu (selectable)
• Input impedance: 10 kOhm or higher
• Output impedance: 200 Ohm or lower
• S/N ratio: 113 dB (analog in to Dante out), 110 dB (Dante in to analog out)
• THD+N: 0.001% or lower
• Crosstalk: 115 dB or higher
• Power: AC 100-240V, 50/60 Hz
• Power consumption: 22W
• Dimensions: 483 x 45 x 303.8 mm / 19.0 x 1.77 x 11.96 in (W x H x D)
• Weight: 3.5 kg / 7.7 lbs

In the Box

• ML-32D unit
• Power cord
• Rackmount screw kit
• Owner's Manual (including warranty)
