Tascam MH-8 8-Channel Rackmount Headphone Amplifier
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

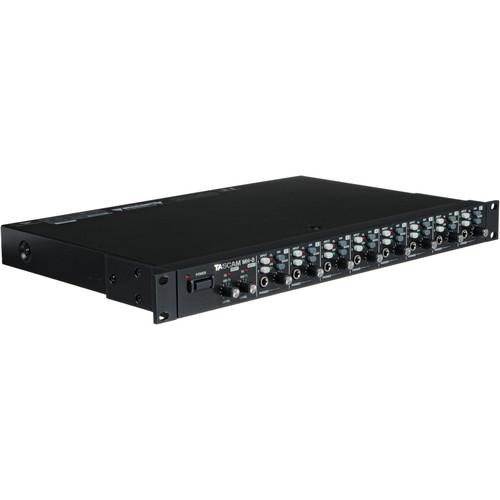

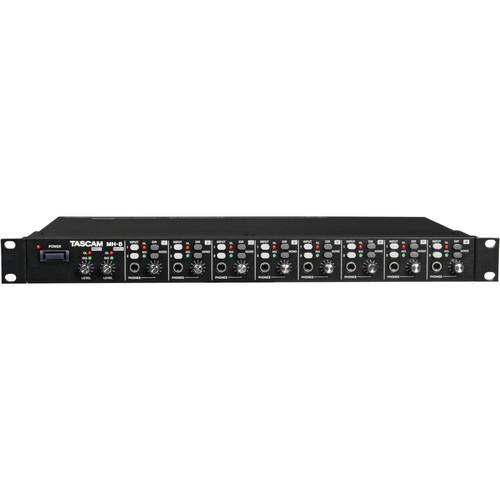

The Tascam MH-8 is a 1U rackmount headphone amplifier with eight independent stereo outputs, each delivering 250 mW per side into 32 ohms. It provides two shared stereo inputs (Input 1 on XLR and 1/4" TRS, Input 2 on XLR and RCA) plus individual stereo direct inputs for each of the eight channels. Each headphone output can select Input 1, Input 2, its direct input, or any combination of the three.
Routing and Expansion
- Per-channel source select: Three toggle switches per output choose Input 1, Input 2, and/or Direct, with mixing between sources
- Foldback outputs: Four balanced 1/4" TRS outputs for daisy-chaining additional MH-8 units
- Mono switch: Per-channel mono summing for single-ear monitoring
- Metering: Signal and overload LEDs on every channel
- Ground lift switch: Global ground lift to eliminate hum
Specifications
- Headphone outputs: 8 x 1/4" stereo, 250 mW + 250 mW at 32 ohms

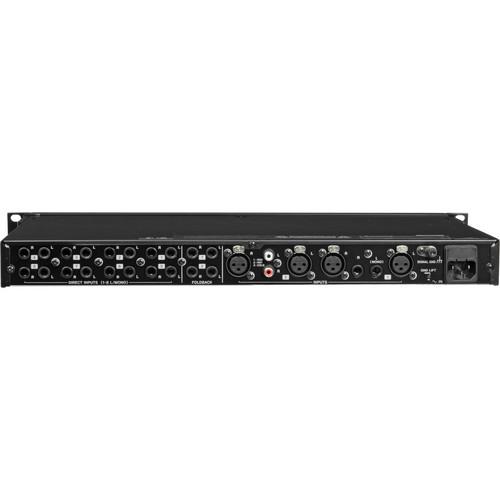

- Shared inputs: Input 1 (XLR + 1/4" TRS balanced), Input 2 (XLR + RCA)
- Direct inputs: 8 stereo pairs on 1/4" TRS balanced
- Foldback outputs: 4 x 1/4" TRS balanced
- Frequency response: 20 Hz to 50 kHz, +/-3 dB (headphone outputs)
- S/N ratio: 85 dB or greater (headphone outputs, A-weighted)
- THD: 0.05% or less (headphone outputs at 100 mW, 32 ohms)
- Power: AC 100-240 V, 50/60 Hz, 36 W (built-in power supply)
- Dimensions: 482 x 44 x 280 mm (19.0 x 1.73 x 11.0")
- Weight: 3.8 kg (8.4 lb)
In the Box
- Tascam MH-8 headphone amplifier
- IEC power cord
- Rackmount screw kit
- Owner's manual
