Tascam MA-BT240 240W Mixing Amplifier with Bluetooth (Half-Rack)

The Tascam MA-BT240 is a compact half-rack mixing amplifier that combines Class D amplification, a built-in Bluetooth receiver, mic/line input with ducking, and two line inputs into a single unit for small to mid-sized commercial spaces. Supporting both low-impedance (120W x 2 channels at 4/8 ohms) and high-impedance (240W x 1 channel at 70V/100V) speaker systems, the MA-BT240 handles background music, announcements, and paging for restaurants, retail stores, offices, waiting rooms, and conference rooms.

Amplification

Efficient Class D amplification delivers high output from a compact chassis. In low-impedance mode, the amp outputs 120W per channel into 4- or 8-ohm speakers. In high-impedance mode, a single 240W channel drives 70V or 100V distributed speaker lines. The output section includes a 2-band EQ (treble and bass) and a high-pass filter to prevent distortion with high-impedance systems. Mono/stereo switching adapts the output to your speaker configuration.

Inputs and Mixing

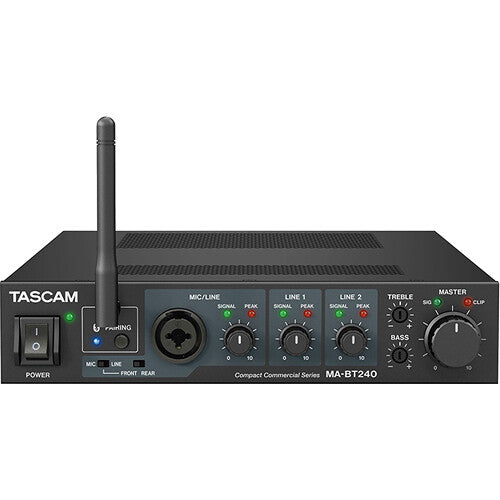

A switchable Mic/Line input (front-panel combo jack and rear Euroblock) supports condenser and dynamic microphones, with a selectable ducking/paging function that automatically mutes other inputs during announcements. Two RCA line inputs connect external audio players. The front-panel Bluetooth receiver with its extendable RP-SMA antenna streams music wirelessly from smartphones and other devices. Dedicated front-panel knobs mix all inputs with signal and peak LEDs for level monitoring.

Installation

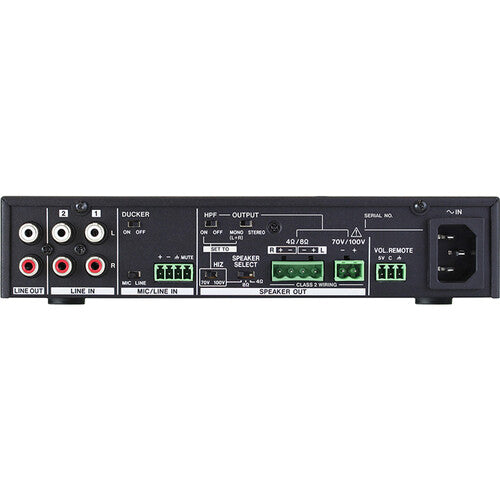

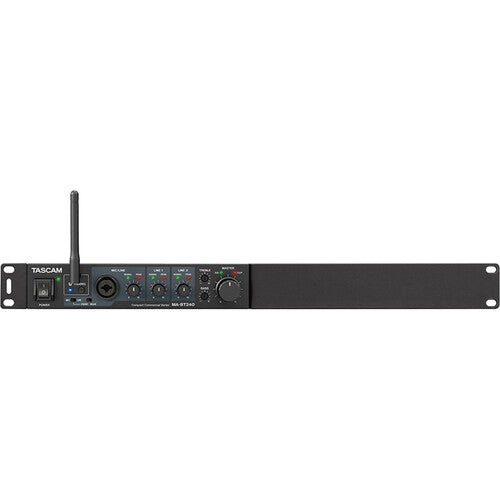

The half-rack enclosure fits on a desktop, shelf, or in a standard equipment rack with the optional AK-RM05 or AK-RS1 rack kit. A Euroblock terminal on the rear panel supports external volume controllers. A line output cascades to additional power amplifiers for expanded coverage.

Specifications

• Low-Impedance Output: 120W x 2 channels (4 ohms / 8 ohms)
• High-Impedance Output: 240W x 1 channel (70V / 100V)
• Amplifier Type: Class D
• Mic/Line Input: Combo XLR/TRS (front) + Euroblock (rear), balanced
• Line Inputs: 2 x RCA unbalanced (-10 dBV nominal)
• Bluetooth: 5.1, Class 2 (approx. 10 m range), SBC and AAC codecs
• Line Output: RCA unbalanced (-10 dBV nominal)
• Remote Volume: Euroblock terminal (3.81mm, 3-pin)
• EQ: 2-band (treble/bass boost/cut) + high-pass filter
• Frequency Response: 20 Hz - 20 kHz, +2/-2 dB
• S/N Ratio: 92 dB or more
• THD: 0.05% or less (1/8 rated output)
• Power: AC 100-120V, 50/60 Hz; rated 58W, idle 18W
• Dimensions: 8.43" x 1.73" x 11.73" / 214 x 44 x 298 mm (W x H x D, excluding protrusions)
• Weight: 5.51 lbs / 2.5 kg

In the Box

• Tascam MA-BT240
• Power cord
• Bluetooth antenna
• Euroblock plugs (speaker output hi-z 2-pin, lo-z 4-pin, mic input 4-pin, remote 3-pin)
• Cable band kit
• Rubber feet (x4)
• Start-up Guide (including warranty)
