Description

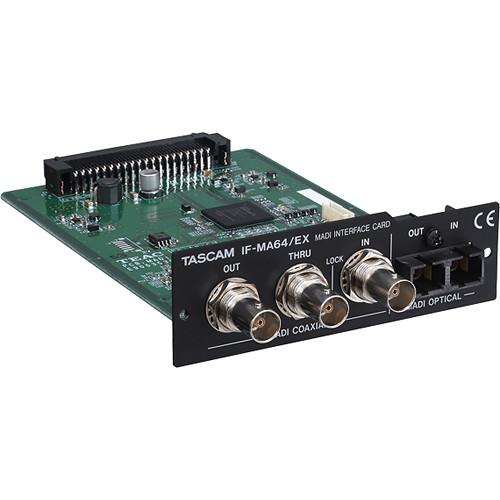

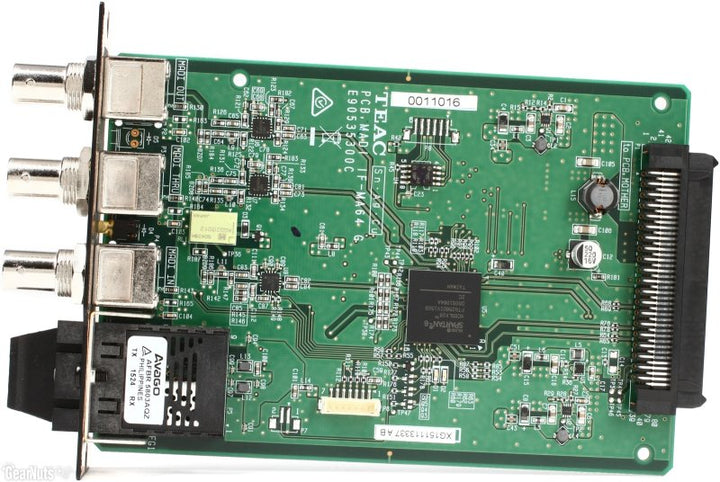

The Tascam IF-MA64/EX is a 64-in/64-out MADI interface card for the Tascam expansion slot system. It adds both optical and coaxial MADI connectivity to compatible host devices including the DA-6400/DA-6400dp multitrack recorders and the Sonicview 16XP/24XP digital mixing consoles.
Dual MADI Connectivity

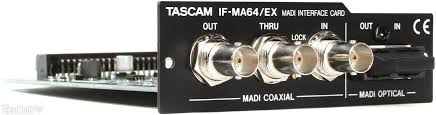

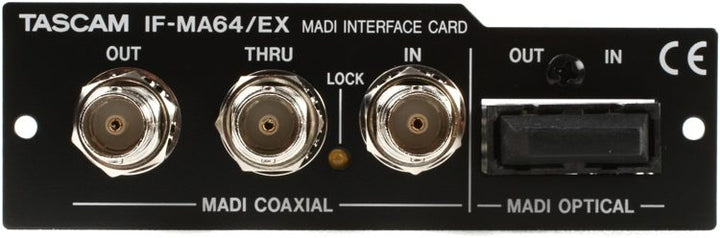

The IF-MA64/EX provides both optical (FDDI duplex SC connector) and 75-Ohm BNC coaxial MADI input and output. A coaxial MADI Thru connector is also included for daisy-chaining or signal distribution. All connections conform to the AES10-2008 MADI standard.
High Channel Count
At 44.1/48 kHz, the card supports up to 64 channels (48k frame, 56/64 channels). At 88.2/96 kHz, it supports up to 32 channels (28/32 channels per frame). A LOCK indicator on the card confirms valid input signal presence.
Specifications
- MADI channels: Up to 64 in / 64 out at 44.1/48 kHz; 32 in / 32 out at 88.2/96 kHz
- Optical connectors: FDDI duplex SC (62.5/125 or 50/125 multimode fiber)
- Coaxial connectors: BNC 75-Ohm input, output, and thru
- Format: AES10-2008
- Compatible with: DA-6400, DA-6400dp, Sonicview 16XP, Sonicview 24XP
- Dimensions: 107 x 34 x 164.4 mm / 4.21 x 1.34 x 6.47 in (W x H x D)
- Weight: 166 g / 5.86 oz
In the Box
- IF-MA64/EX card
- Owner's Manual (including warranty)
