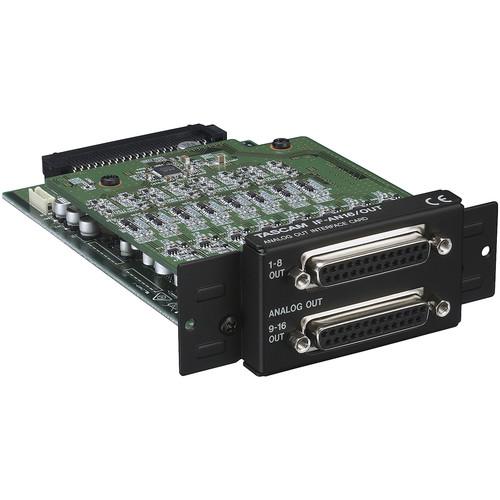

Tascam IF-AN16/OUT 16-Channel Analog Output Expansion Card
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The Tascam IF-AN16/OUT is a 16-channel analog output interface card for the Tascam expansion slot system. It adds balanced analog outputs to compatible host devices including the DA-6400/DA-6400dp multitrack recorders and the Sonicview 16XP/24XP digital mixing consoles.
16 Balanced Analog Outputs
Two D-Sub 25-pin connectors provide 16 channels of balanced analog output (channels 1-8 and 9-16). The card supports 44.1, 48, 88.2, and 96 kHz sampling rates at 16 or 24-bit resolution. Pin assignments conform to AES59-2012.
Per-Channel Digital Attenuation
Each output channel has independent digital attenuation adjustable from 0 to -14 dB in 0.5 dB steps, providing fine-grained output level control without external processing.
Audio Performance
The IF-AN16/OUT delivers THD+N of 0.001% or less, an S/N ratio of 110 dB or higher, and a dynamic range of 110 dB or higher. Frequency response extends from 20 Hz to 20 kHz at 48 kHz and 20 Hz to 40 kHz at 96 kHz.
Specifications
- Channels: 16 analog balanced outputs
- Connectors: 2x D-Sub 25-pin (channels 1-8, 9-16)
- Sample rates: 44.1/48/88.2/96 kHz, 16/24-bit
- Maximum output level: +24 dBu (selectable: +24, +22, +20, +18, +15 dBu)
- Nominal output level: +4 dBu (+6 dBu when max is +15 dBu)
- Output impedance: 200 Ohm or lower
- Output attenuation: 0 to -14 dB (0.5 dB steps)
- Compatible with: DA-6400, DA-6400dp, Sonicview 16XP, Sonicview 24XP
- Dimensions: 107 x 40 x 161.5 mm / 4.21 x 1.57 x 6.36 in (W x H x D)
- Weight: 240 g / 8.47 oz
In the Box
- IF-AN16/OUT card
- Owner's Manual (including warranty)
