Tascam IF-AE16 16-In/16-Out AES/EBU Expansion Card

$1,599.00 Free Shipping
Found a better price? We'll match it.
SKU: IF-AE16
Special Order
Our specialists procure special orders 1.19x faster than the industry average. Most orders arrive within 1-2 weeks.

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Authorized Dealer
Track Your
Order
1-Year Manufacturer Warranty
Blackout Audio storefront
Blackout Audio
Google Reviews
Reviewer
"You can tell they really care." Read
Reviewer
"Welcoming but also super professional" Read
5.0 Read All Reviews
Buy With Confidence
Authorized Dealer
Blackout Audio storefront
Blackout Audio
Google Reviews
Reviewer
"You can tell they really care." Read
Reviewer
"Welcoming but also super professional" Read
5.0 Read All Reviews
Track Your
Order
1-Year Manufacturer Warranty
Buy With Confidence

Talk to our Experts

Have questions about this product? Our team is here to help!

Shipping, Returns & Financing

Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.

Province Standard Shipping Express Shipping
ON $19 $39
QC, MB $29 $69
Other $39 $119

Payment & Financing Options

We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.

Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.

Returns

Products can be returned within 14 days of delivery or pickup.

View our full return policy

Description

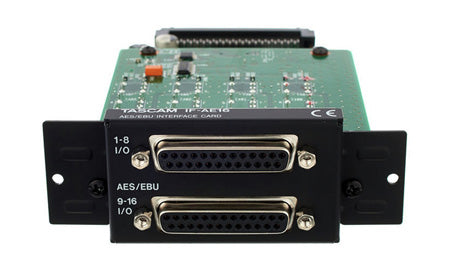

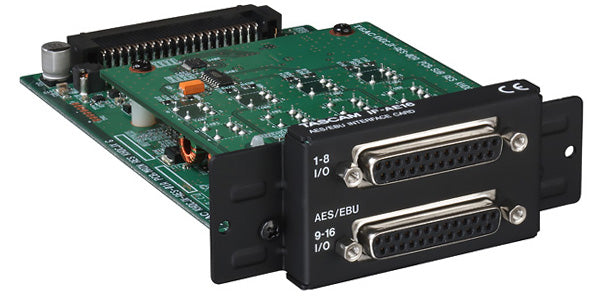

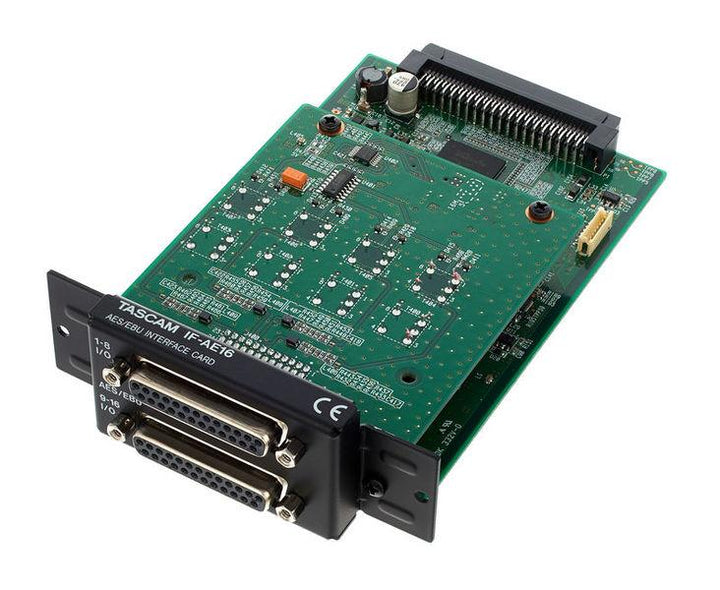

The Tascam IF-AE16 is a 16-in/16-out AES/EBU interface card for the Tascam expansion slot system. It adds AES/EBU digital audio connectivity to compatible host devices including the DA-6400/DA-6400dp multitrack recorders and the Sonicview 16XP/24XP digital mixing consoles.

16-Channel AES/EBU Interface

The IF-AE16 provides 16 channels of AES/EBU input and output at 44.1/48 kHz or 16 channels in double-speed mode at 88.2/96 kHz. Two D-Sub 25-pin connectors carry channels 1-8 and 9-16 using pin assignments compliant with AES59-2012.

Built-In Sampling Rate Converter

Each input pair has an independent sampling rate converter that accepts AES/EBU sources from 32 kHz to 192 kHz when enabled. This allows the host device to record from multiple AES/EBU sources running at different sample rates. S/PDIF data format is also detected automatically on the input.

Specifications

  • Channels: 16 at 44.1/48 kHz (24-bit), 16 at 88.2/96 kHz double-speed (24-bit)

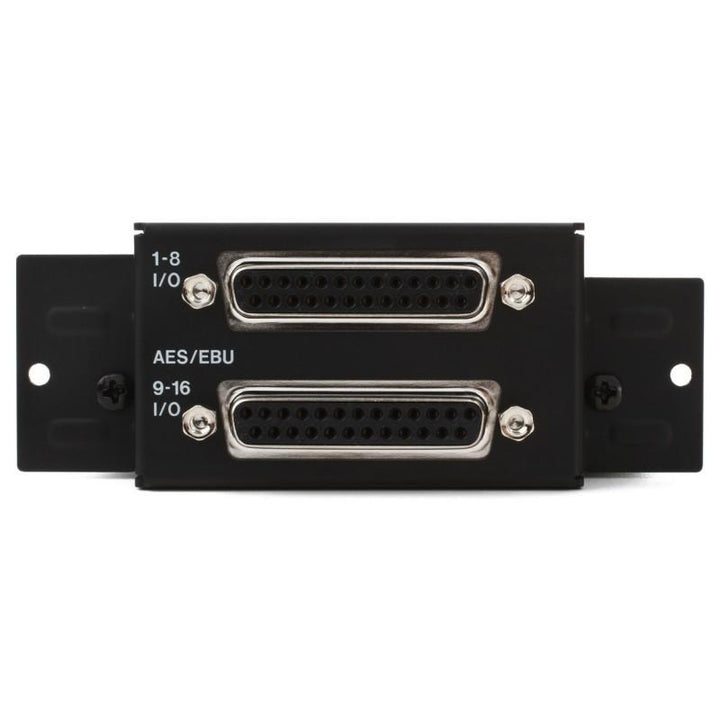

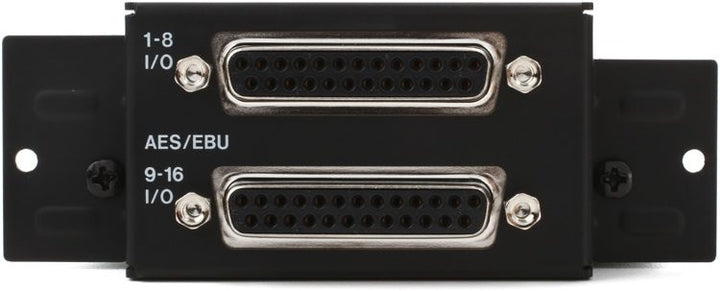

  • Connectors: 2x D-Sub 25-pin (channels 1-8, 9-16)
  • Output format: AES3-2003/IEC60958-4 (AES/EBU)
  • Input format: AES/EBU and S/PDIF (auto-detected)
  • Input SRC range: 32-192 kHz (when SRC is on)
  • Pin assignments: AES59-2012 compliant
  • Compatible with: DA-6400, DA-6400dp, Sonicview 16XP, Sonicview 24XP
  • Dimensions: 107 x 40 x 161.5 mm / 4.21 x 1.57 x 6.36 in (W x H x D)
  • Weight: 222 g / 7.83 oz

In the Box

  • IF-AE16 card
  • Owner's Manual (including warranty)
