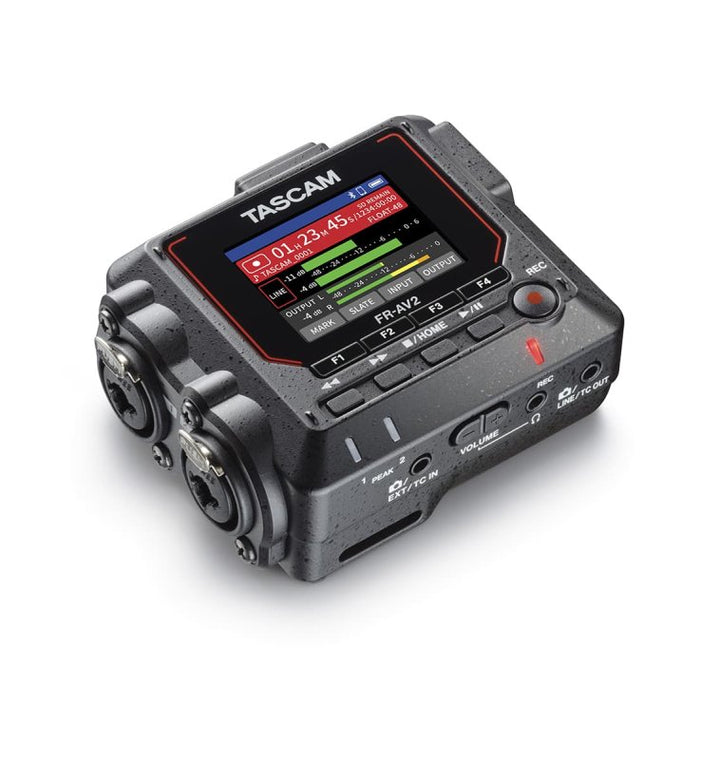

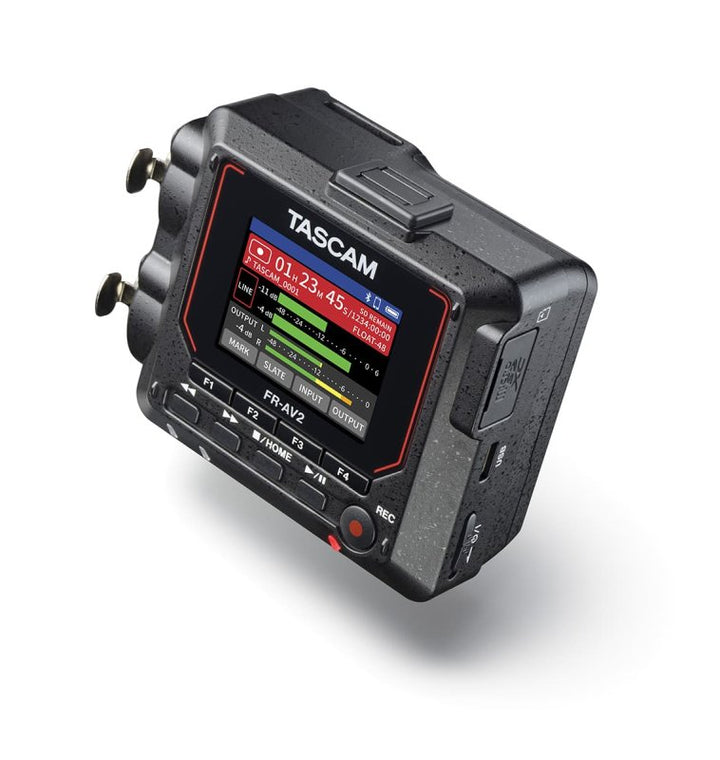

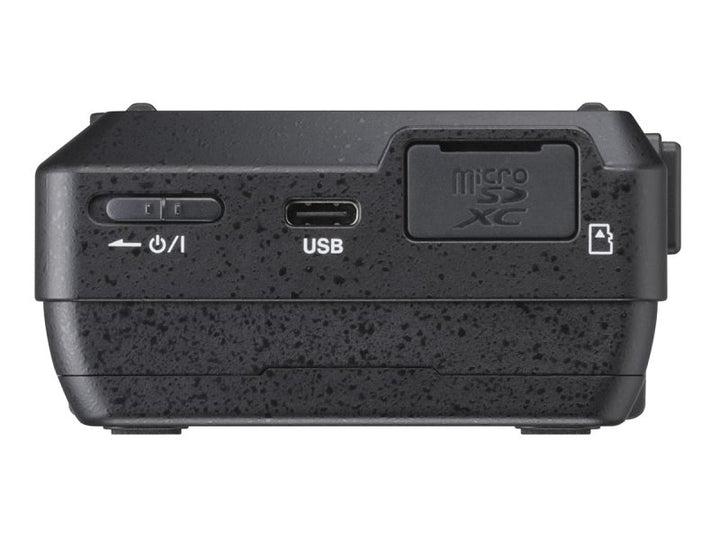

Tascam FR-AV2 Compact 32-Bit Float Field Recorder with Timecode Generator

The Tascam FR-AV2 is a compact 2-channel 32-bit float field recorder with built-in timecode generation, designed as a complete audio solution for videographers and filmmakers. It combines Ultra HDDA preamps (EIN -127 dBu), dual XLR/TRS inputs, and up to 192 kHz recording in a rugged, camera-mountable enclosure that weighs just 267 grams with batteries.

32-Bit Float Recording

Dual A/D converters capture audio with 32-bit float precision at 48, 96, or 192 kHz. The wide dynamic range eliminates the risk of clipping and noise, so you can focus on video production rather than monitoring audio levels.

Built-In Timecode

The FR-AV2 generates and reads SMPTE LTC timecode via a 3.5mm TC IN/OUT jack, supporting frame rates from 23.98 to 30 fps. A high-accuracy TCXO (temperature-compensated crystal oscillator) ensures ultra-precise sync even in varying temperature conditions. Jam-Sync with external timecode devices and wireless sync with Atomos UltraSync BLUE (via optional AK-BT2) are supported.

Ultra HDDA Preamps

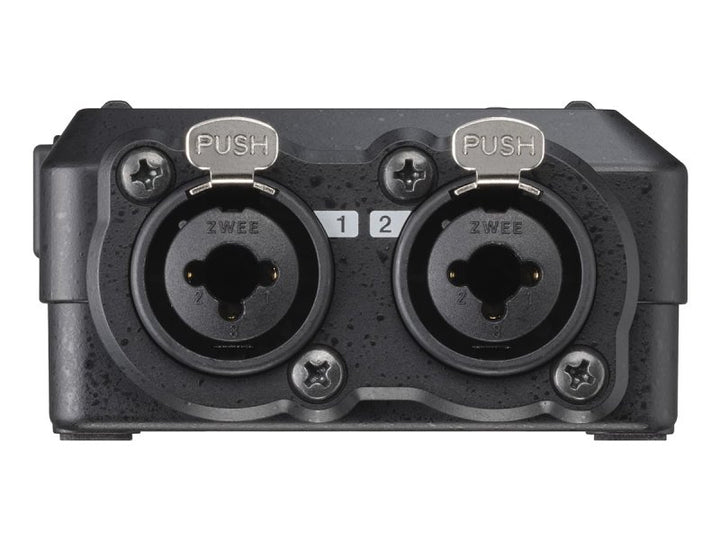

Two XLR/TRS combo inputs with Ultra HDDA preamps provide exceptionally clean amplification with an EIN of -127 dBu. Selectable +24V or +48V phantom power accommodates a wide range of condenser microphones. A 3.5mm stereo Camera/EXT input with plug-in power (+2.5V/+5.0V) connects wireless receivers and lavalier mics.

Wireless Monitoring and Control

With the optional AK-BT2 Bluetooth adapter, you can wirelessly monitor audio, sync timecode, and control multiple FR-AV2 and DR-10L Pro units via the free TASCAM Recorder Connect app (iOS, iPadOS, Android).

USB-C Audio Interface

Functions as a 2-in/2-out USB-C audio interface supporting 32-bit float for Mac, Windows, and iOS devices. Connects directly to an iPhone for professional mobile video production with XLR-quality audio and timecode.

Additional Features

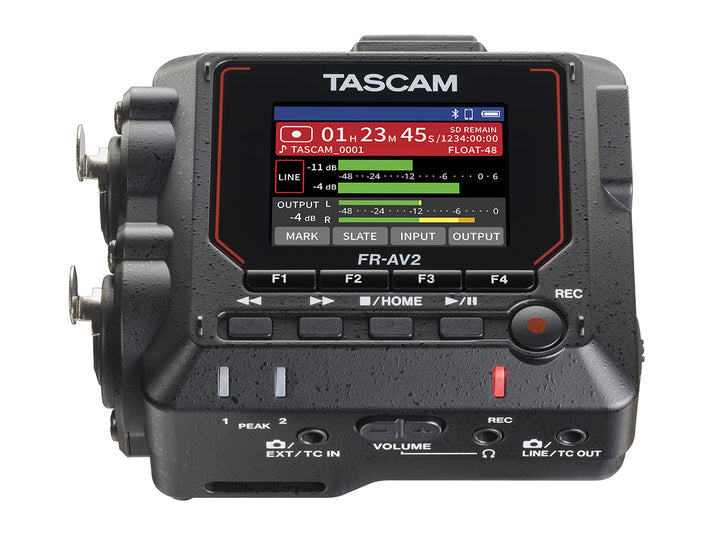

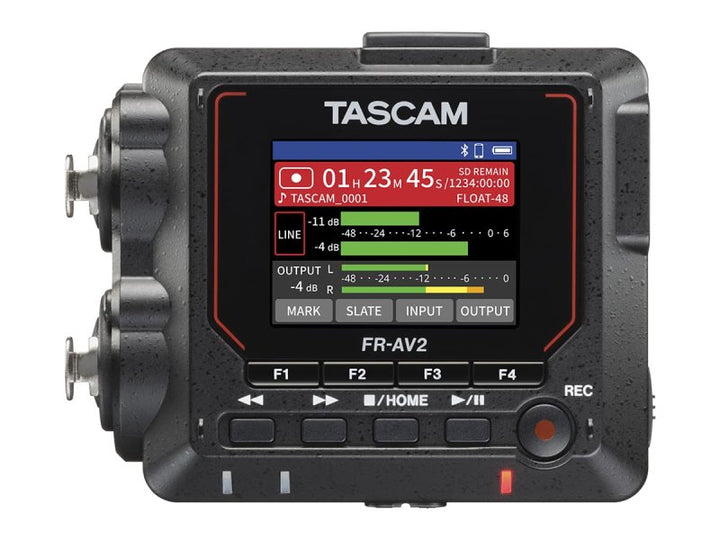

• 2-inch color LCD display
• Onboard low-cut filter, compressor, limiter, and noise gate
• Input delay (0-300 ms) and output delay (0-300 ms) for distance/sync compensation
• Auto File Save every 20 seconds to prevent data loss
• Mark and auto-slate tone functions
• Supports iXML and BEXT metadata in WAV files

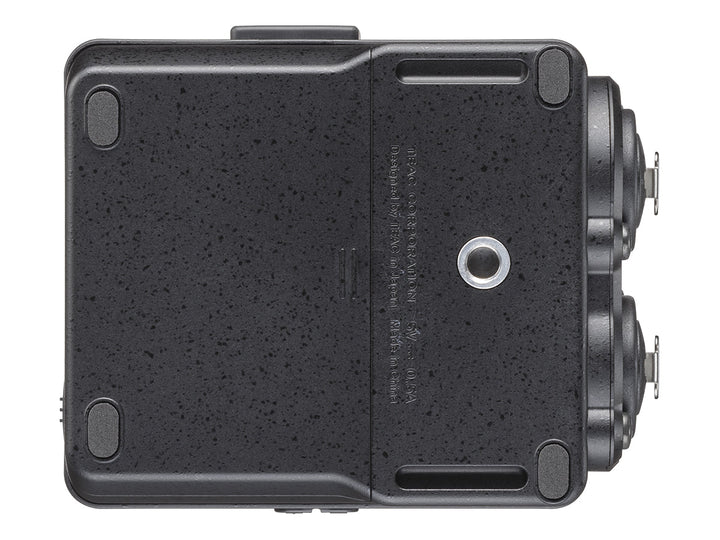

• Fiberglass enclosure with camera screw mount

Specifications

• Recording format: WAV (BWF) 48/96/192 kHz, 32-bit float / 24-bit
• Channels: 2
• Mic preamps: Ultra HDDA, EIN -127 dBu
• Dynamic range: 132 dB or higher

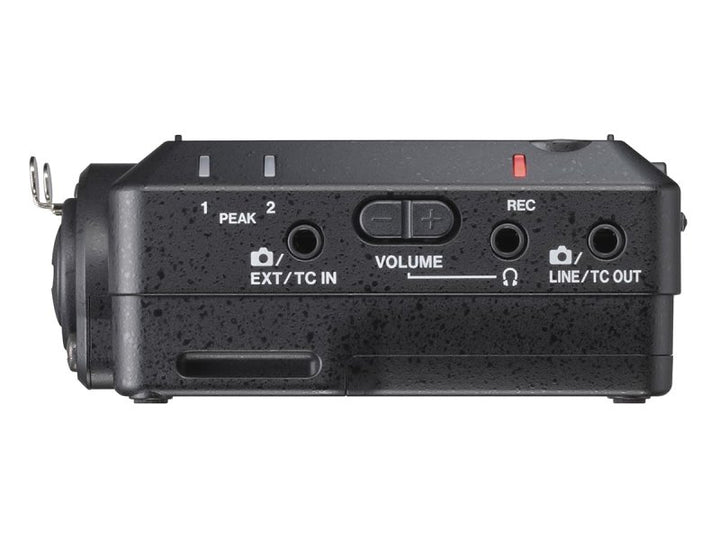

• Inputs: 2x XLR/TRS combo (+24V/+48V phantom), 3.5mm Camera/EXT/TC IN (plug-in power)
• Outputs: 3.5mm Camera/LINE/TC OUT, 3.5mm headphone (50mW + 50mW into 32 ohm)
• Timecode: SMPTE ST 12-1 (LTC), 23.98/24/25/29.97/29.97DF/30 fps, TCXO

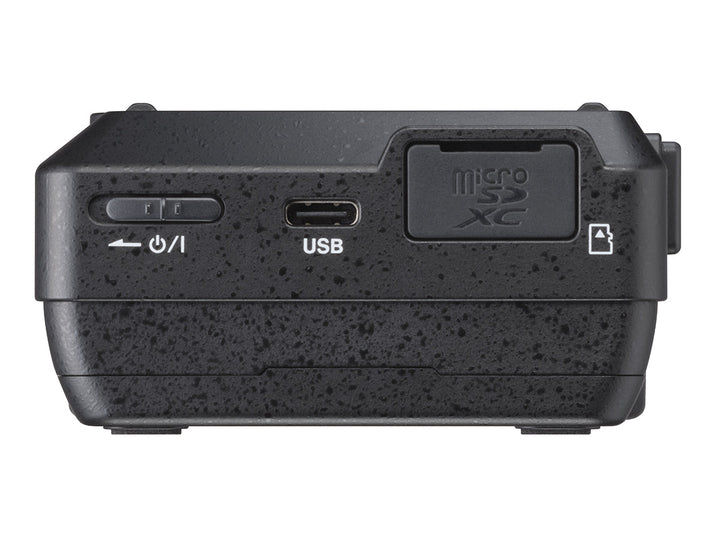

• USB: Type-C (2-in/2-out audio interface, 32-bit float, mass storage)
• Bluetooth: AK-BT2 adapter connector (sold separately)
• Recording media: microSD / microSDHC / microSDXC up to 512 GB
• Power: 3 AA batteries, USB bus power, or PS-P520U AC adapter (sold separately)
• Battery life: Approx. 9 hours (no phantom, 48 kHz, 24-bit, alkaline)
• Dimensions: 99 x 80.4 x 40.3 mm (3.90 x 3.17 x 1.59 in), including protrusions
• Weight: 267 g / 9.4 oz (with batteries), 195 g / 6.9 oz (without batteries)

In the Box

• Tascam FR-AV2
• Safety guide (including warranty)
• TASCAM ID registration guide
