Description

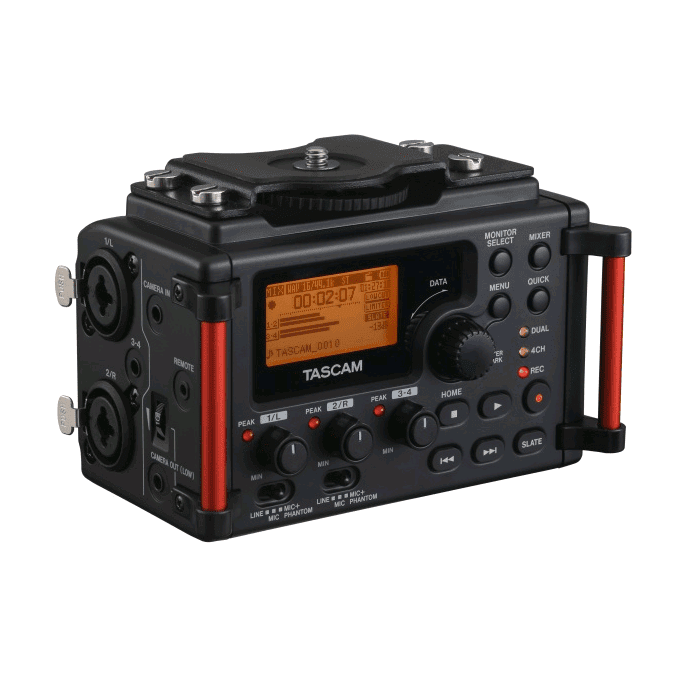

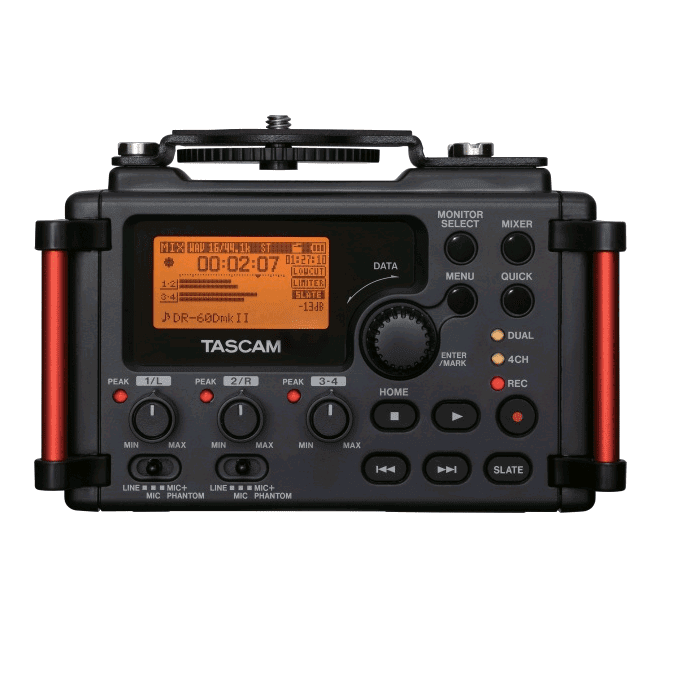

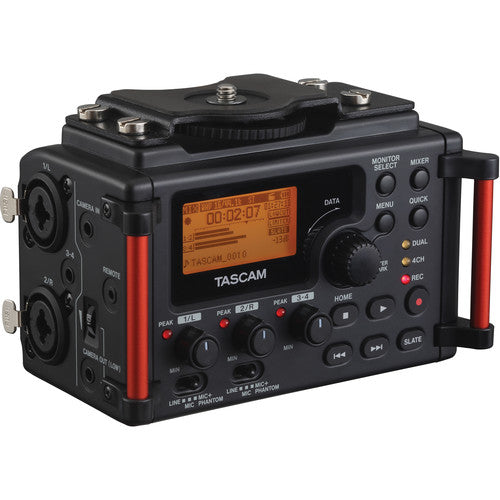

The Tascam DR-60DMKII is a 4-channel portable audio recorder and mixer designed to mount directly beneath a DSLR camera for professional audio-for-video capture. Featuring HDDA (High Definition Discrete Architecture) preamps, a Cirrus Logic A/D converter, and a compact form factor at just 133 mm wide, the DR-60DMKII records up to 4 channels simultaneously in 24-bit/96 kHz WAV/BWF format.
DSLR Integration

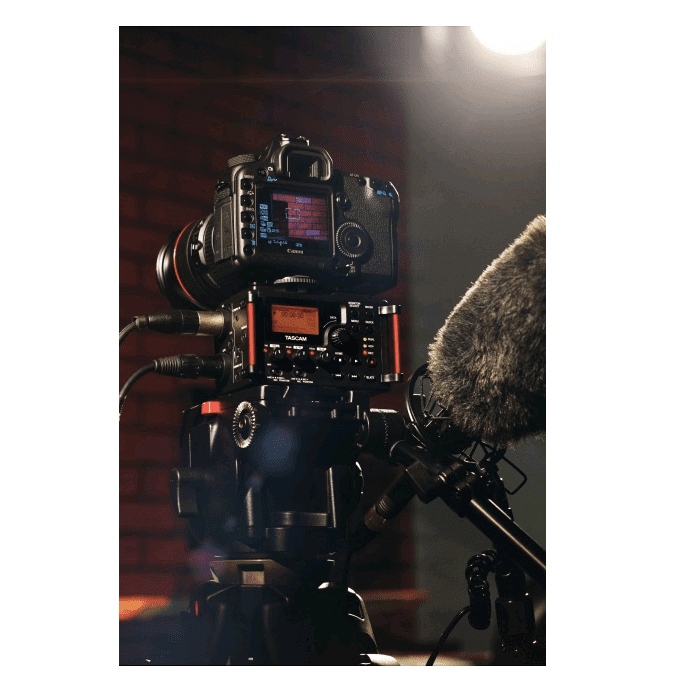

The DR-60DMKII mounts directly under your camera via its integrated camera screw. A dedicated camera output with adjustable level control feeds a reference audio track to cameras that lack input level adjustment. The unit's rigid plastic construction keeps weight low for steady camera movement.
Inputs and Mixing
Two XLR/TRS combo inputs with selectable +48V phantom power accept professional microphones and line sources. A stereo 1/8" microphone input handles high-output mics and provides plug-in power. The built-in digital mixer offers panning and level control per track, with insertable limiter, high-pass filter, and per-channel delay for distance compensation.
Outputs
- Dedicated camera output with adjustable level
- 1/8" stereo line output for feeding a secondary recorder or mixer
- 1/8" stereo headphone output for monitoring
Specifications
- Recording format: WAV (BWF) 44.1/48/96 kHz, 16/24-bit
- Channels: 4 (stereo x 2)
- Mic preamps: HDDA with Cirrus Logic A/D converter
- Inputs: 2x XLR/TRS combo (+48V phantom), 1/8" stereo mic input (plug-in power)
- Outputs: Camera out (adjustable), 1/8" line out, 1/8" headphone
- Remote: 2.5mm input for RC-3F footswitch (sold separately)
- USB: Mini-B (mass storage)
- Recording media: SD (64 MB to 2 GB), SDHC (4 GB to 32 GB)
- Power: 4 AA batteries, USB bus power, PS-P520U AC adapter (sold separately), BP-6AA battery pack (sold separately)
- Battery life: Approx. 4.5 hours phantom off, 2.5 hours phantom on (alkaline, recorder only)
- Dimensions: 133 x 93.2 x 78 mm (5.24 x 3.67 x 3.07 in), with top adapter attached
- Weight: 605 g / 1.33 lb (with batteries), 510 g / 1.12 lb (without batteries)
In the Box
- Tascam DR-60DMKII
- USB cable
- Owner's Manual (including warranty)
