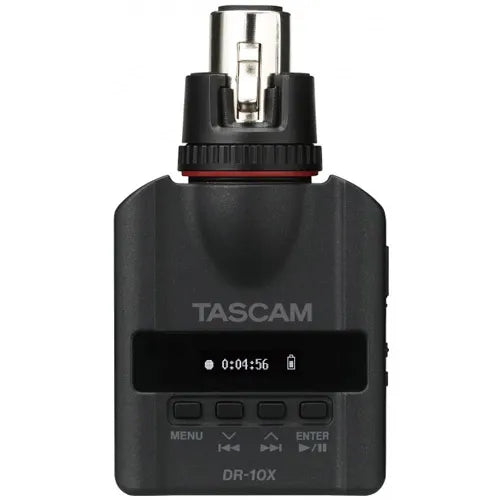

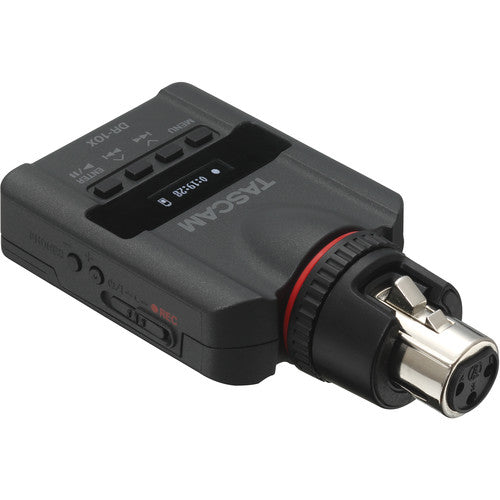

Tascam DR-10X Plug-On Micro Linear PCM Recorder

The Tascam DR-10X is a compact plug-on PCM recorder that connects directly to the XLR output of a dynamic handheld microphone, turning it into a self-contained recording system. Designed for ENG (electronic news gathering), journalism, and field applications, the DR-10X records up to 24-bit / 48 kHz WAV and MP3 audio to microSD/microSDHC cards while adding minimal weight and bulk to your existing microphone.

Plug-On Design

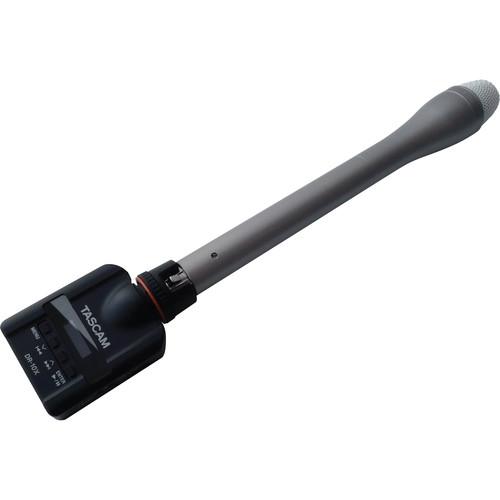

The DR-10X attaches directly to an XLR microphone connector with a locking mechanism that ensures a secure fit. It is designed primarily for dynamic microphones but can be used with condenser microphones connected to an external power supply.

Safety Track Recording

A dual-recording mode captures a safety track at a lower level simultaneously, protecting against unexpected volume spikes that might distort the primary track.

Specifications

• Recording format: WAV (BWF) 44.1/48 kHz, 16/24-bit mono/poly; MP3 44.1/48 kHz, 128/192 kbps (firmware V2.00)

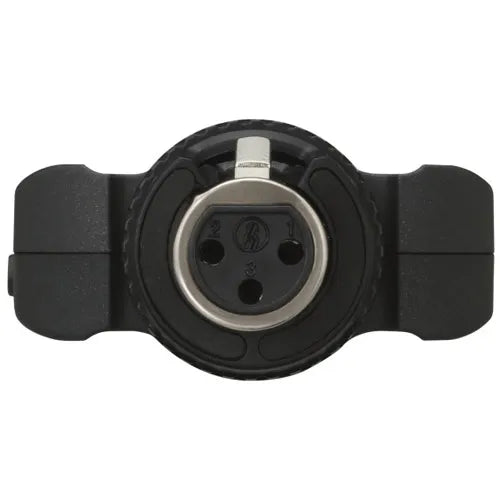

• Input connector: XLR-3-31
• Input impedance: 10k ohm or more
• Gain settings: LOW / MID / HIGH (automatic and manual)
• Low-cut filter: Selectable

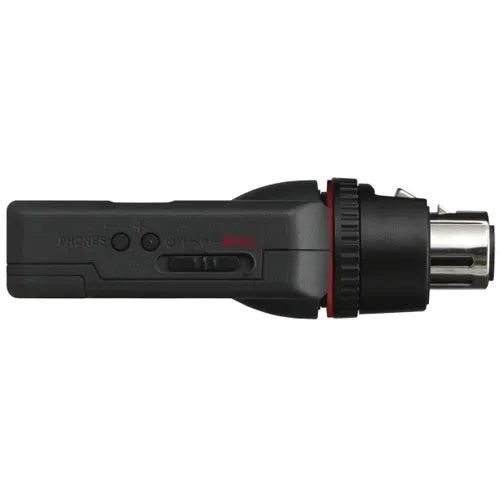

• Output: 3.5mm stereo mini-jack (headphone, dual mono)

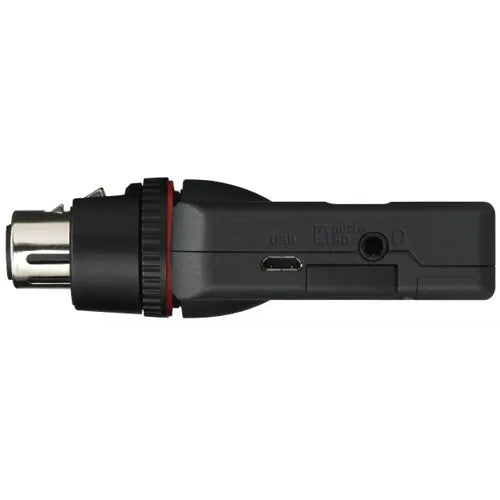

• USB: Micro-B (mass storage)
• Recording media: microSD (64 MB to 2 GB), microSDHC (4 GB to 32 GB)
• Power: 1 AAA battery (alkaline, NiMH, or lithium)
• Battery life: Approx. 10 hours (alkaline)
• Dimensions: 52 x 94.4 x 28 mm (2.1 x 3.7 x 1.1 in), excluding protrusions
• Weight: 68.3 g / 2.4 oz (with battery), 56.3 g / 2.0 oz (without battery)

In the Box

• Tascam DR-10X
• USB cable
• Owner's Manual (including warranty)
