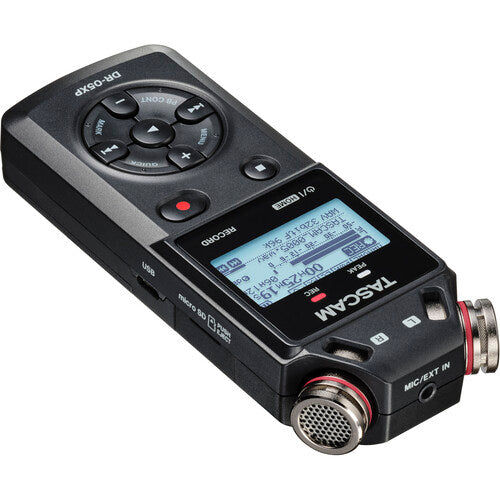

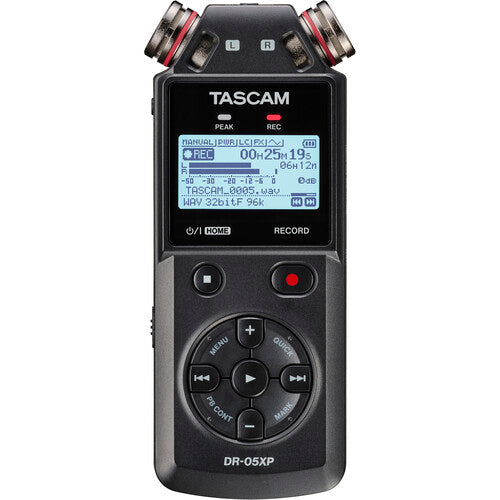

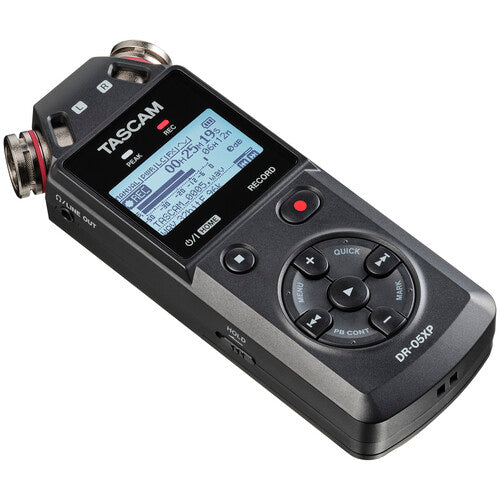

Tascam DR-05XP 2-Channel 32-Bit Float Portable Audio Recorder

The Tascam DR-05XP is a 2-channel portable handheld recorder with 32-bit float recording technology and built-in omnidirectional condenser microphones. Designed for speech, sound effects, field recording, and live music capture, the DR-05XP delivers distortion-free recordings without the need to set input levels, making it ideal for interviews, podcasts, sampling sessions, and on-camera audio.

32-Bit Float Recording

With dual A/D converters and 32-bit float recording at up to 96 kHz, the DR-05XP captures audio across an enormous dynamic range. Recordings that are too quiet can be boosted in post without introducing noise, and signals that peak beyond 0 dBFS remain distortion-free. There is no need to set gain levels before recording.

Built-In Omnidirectional Microphones

The onboard condenser microphones are arranged in a fixed A-B stereo configuration, providing a wide, natural stereo image. They handle sound pressure levels up to 125 dB SPL, suitable for everything from quiet dialogue to loud live performances.

External Input and Output

A 3.5mm stereo mini-jack input accepts mic-level or line-level signals and can supply plug-in power for lavalier microphones. The 3.5mm output serves as both a line output (for feeding camera audio inputs) and a headphone output. A built-in mono speaker allows quick playback monitoring.

USB Audio Interface

Connect via USB-C to use the DR-05XP as a 2-in/2-out USB audio interface or USB microphone with Mac, Windows, and iOS devices. The unit also functions as a USB card reader for fast file transfers.

Additional Features

• Peak reduction, limiter, and auto level control for worry-free recording
• Low-cut filter (40/80/120 Hz) for wind noise and rumble reduction
• Built-in reverb effect (hall, room, studio, plate presets)
• Pre-recording buffer captures up to 2 seconds before you press record
• Auto-record starts recording when signal exceeds a set threshold
• Overdubbing for layering performances without destructive editing
• Auto-tone generator for syncing audio to video in post
• Built-in chromatic tuner
• Playback EQ and variable speed audition (50-200%)

Specifications

• Recording format: WAV (BWF), 32-bit float / 24-bit, 48 / 96 kHz
• Built-in microphones: Omnidirectional condenser, A-B stereo arrangement
• Maximum input SPL: 125 dB
• Input: 3.5mm stereo mini-jack (mic/line, plug-in power capable)
• Output: 3.5mm stereo mini-jack (line/headphone)
• Built-in speaker: 0.3W mono
• USB: Type-C (USB 2.0, audio interface and mass storage)
• Recording media: microSD / microSDHC / microSDXC up to 512 GB
• Power: 2 AA batteries, USB bus power, or PS-P520U AC adapter (sold separately)
• Battery life: Approx. 15.5 hours (96 kHz, 32-bit float, alkaline)
• Dimensions: 60.5 x 142.3 x 27 mm (2.39 x 5.61 x 1.07 in), W x H x D, including protrusions
• Weight: 174 g / 0.38 lb (with batteries), 126 g / 0.28 lb (without batteries)
• 1/4"-20 tripod mount

In the Box

• Tascam DR-05XP
• Safety guide (including warranty)
• TASCAM ID registration guide
