Description

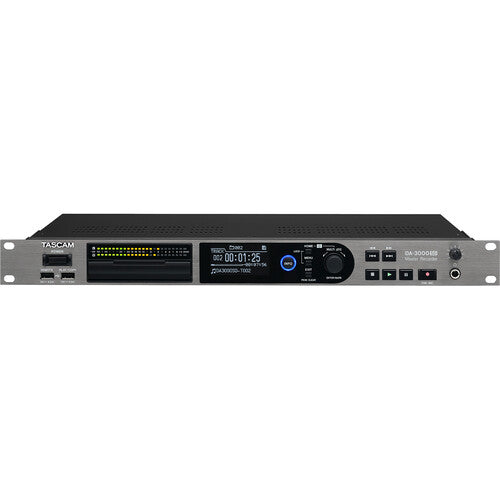

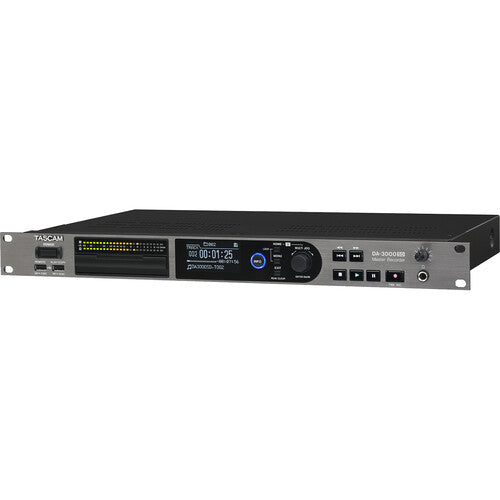

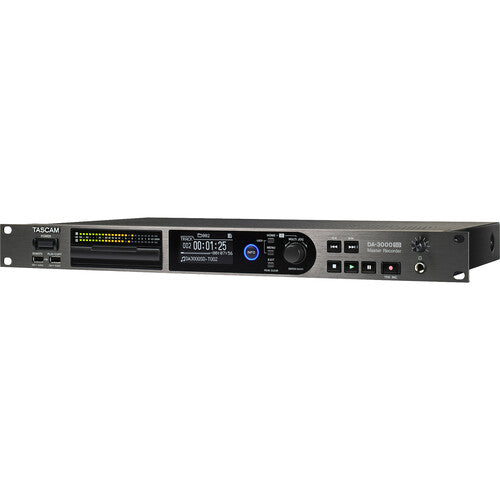

The Tascam DA-3000SD is a rackmount 2-channel master recorder and AD/DA converter capable of recording up to 192 kHz PCM and 5.6 MHz DSD. Built for mastering engineers, archivists, and studio professionals, the DA-3000SD offers reference-grade components, a jitter-free TCXO oscillator for Word Clock generation, and recording directly to SD/CF cards with support for up to 512 GB SDXC media.
High-Resolution Recording
Record in PCM at up to 192 kHz / 24-bit or in DSD at 2.8 MHz and 5.6 MHz for the highest fidelity digital capture. The unit records to removable SD or CompactFlash cards, eliminating the need for a connected computer during sessions.
AD/DA Converter
Premium analog-to-digital and digital-to-analog converters provide noise-free, low-latency monitoring for DAW workflows. Use the DA-3000SD as a standalone high-quality converter between your analog equipment and digital systems.
TCXO Word Clock
A super-accurate, jitter-free TCXO oscillator generates stable Word Clock for synchronizing multiple digital devices in your studio. The DA-3000SD can serve as the master clock source for an entire signal chain.

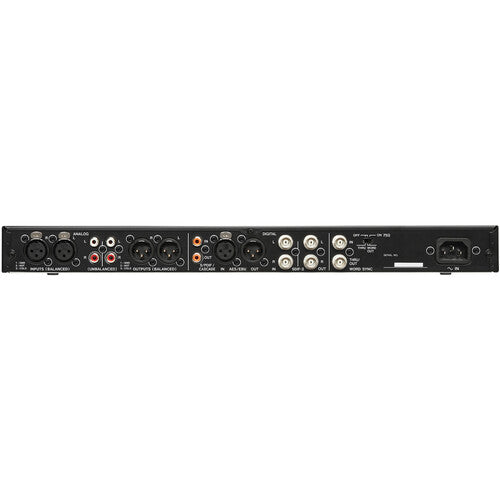

Connectivity
- Balanced XLR analog inputs and outputs
- AES/EBU digital I/O (XLR)
- S/PDIF coaxial and optical I/O
- Word Clock BNC in/out
- USB-A port for file transfer to/from USB flash drives
- 1/4" stereo headphone output (45mW + 45mW into 32 ohm)
- Infrared receiver for RC-10 wireless remote
Additional Features
- Auto File Save every 25 seconds protects against power loss
- 1" OLED display with 24-dot LED level meter
- Supports SD/SDHC/SDXC (up to 512 GB) and CompactFlash cards
Specifications
- Recording format: PCM up to 192 kHz / 24-bit; DSD 2.8 / 5.6 MHz
- Channels: 2 (stereo)
- Analog I/O: Balanced XLR
- Digital I/O: AES/EBU (XLR), S/PDIF coaxial (RCA), S/PDIF optical (TOSLINK)
- Word Clock: BNC in/out, TCXO oscillator
- Headphone: 1/4" stereo jack, 45mW + 45mW (32 ohm)
- Display: 1" OLED + 24-dot LED meter
- Recording media: SD / SDHC / SDXC up to 512 GB, CompactFlash
- USB: Type-A (for flash drive file transfer)
- Power: AC 120V / 230V
- Power consumption: 24W
- Form factor: 1U rackmount
- Dimensions: 483 x 45 x 305 mm (19.02 x 1.78 x 12.01 in)
- Weight: 4.1 kg / 9.04 lb
In the Box
- Tascam DA-3000SD
- Power cord (3-prong)
- RC-10 wireless remote controller
- CR2025 lithium coin cell battery
- Rack-mounting screw kit
- Owner's Manual (including warranty)
