Description

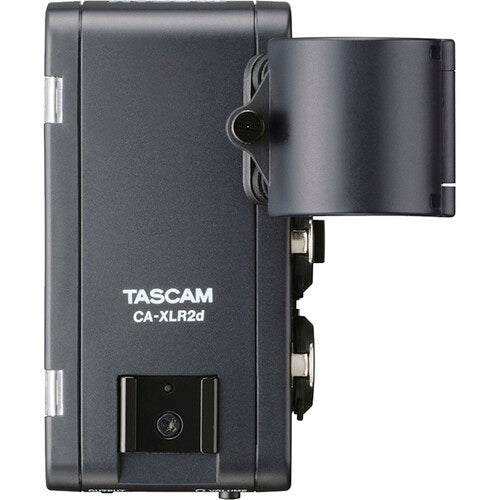

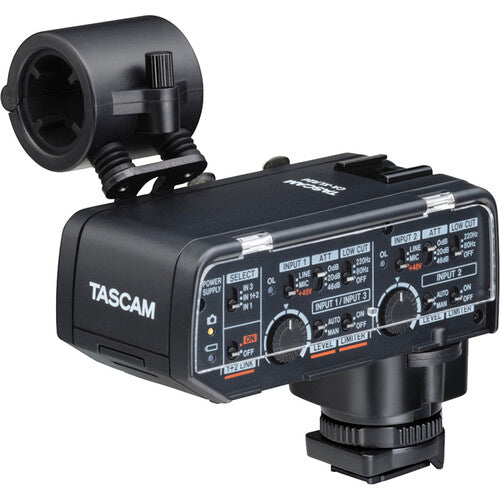

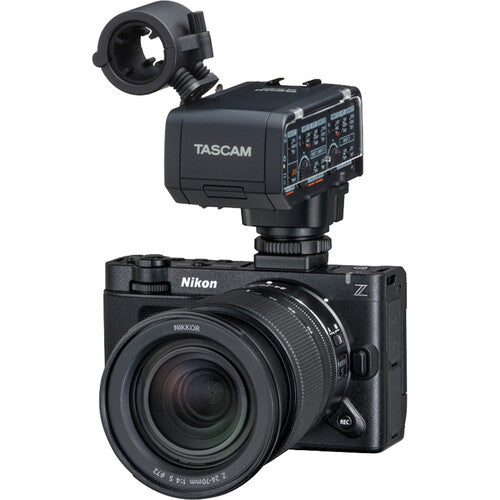

The Tascam CA-XLR2d-N is an XLR microphone adapter that delivers cable-free digital audio from professional XLR microphones directly to compatible Nikon cameras via the multi-accessory shoe. Developed in collaboration with Nikon, it transmits digital audio to the camera, eliminating analog signal degradation and the need to synchronize audio and video in post-production. The camera also supplies power through the shoe for a compact, battery-free setup.

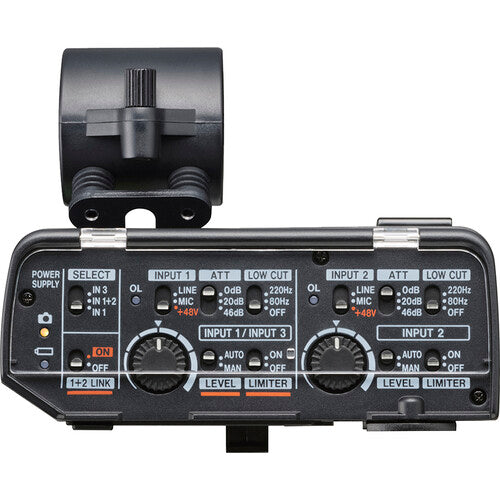

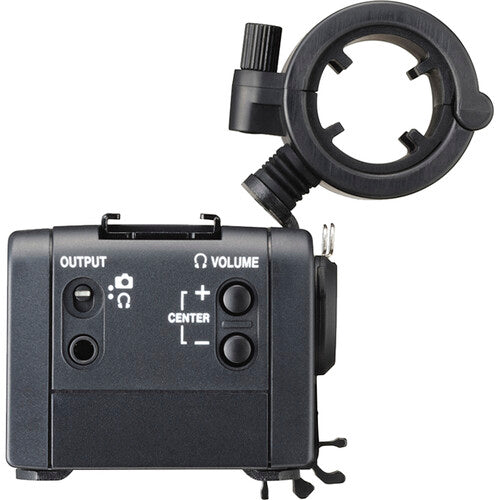

HDDA mic preamps and 48V phantom power support a wide range of condenser and dynamic microphones. Two balanced XLR/TRS combo inputs and a 3.5 mm input handle everything from a single shotgun mic for dialogue to dual condenser mics for stereo imaging or a line-level feed from a mixer. The output jack serves as a headphone monitor for real-time checking in the field. Two AA batteries are included for use with the analog 3.5 mm output, allowing the adapter to work with virtually any camera.
Compatible Nikon Models
- Digital connection (multi-accessory shoe): Z9, Z8, Z6 III, Z7 II, Z6 II, Z5 II, Zf, Z50 II, Z30
- Analog connection (3.5 mm): Z7, Z6, Z5, Zfc, Z50, D6, D850, D780, D500, D7500, COOLPIX P1100
Specifications
- Inputs: 2x XLR/TRS combo (balanced), 1x 3.5 mm stereo mini (unbalanced, plug-in power)
- Gain range: 66 dB
- Phantom power: 48V
- Attenuation: 0 dB / 20 dB / 46 dB
- Low-cut filter: Off / 80 Hz / 220 Hz
- Output: 3.5 mm stereo mini (camera / headphone selectable)
- A/D conversion: 48 kHz or 96 kHz, 16- or 24-bit
- Power: Camera-supplied via multi-accessory shoe or 2x AA batteries
- Dimensions (W x H x D): 3.47 x 4.69 x 4.33 in / 88.2 x 119.1 x 110.0 mm (excluding protrusions)
- Weight: 12.0 oz / 341 g (mic holder attached, battery holder not attached)
- Operating temperature: 32 to 104 F / 0 to 40 C
In the Box
- CA-XLR2d unit
- CA-AK1-N Nikon multi-accessory shoe mount adapter (attached)
- CA-AK1-AN cold shoe mount adapter
- Battery holder
- Mic holder (attached)
- 3.5 mm stereo mini cable
- Quick guide
