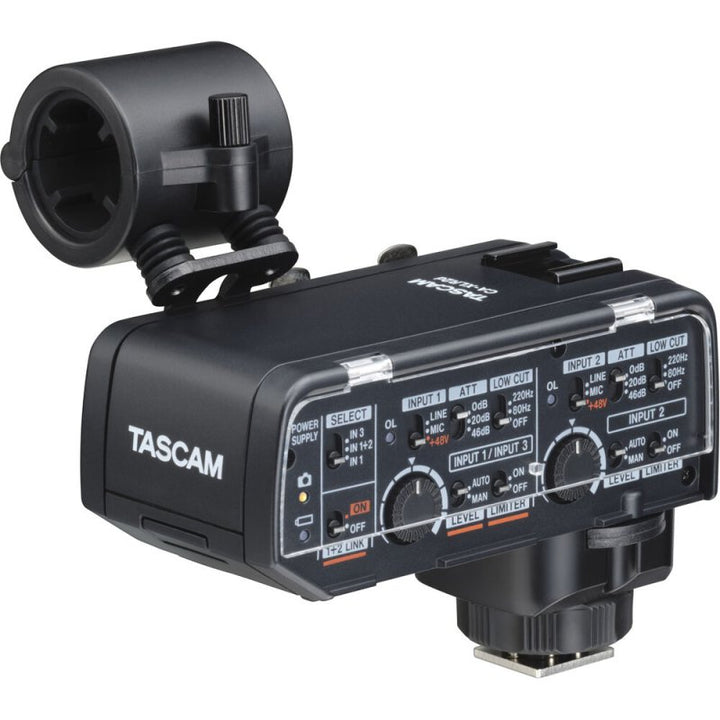

Tascam CA-XLR2d-F XLR Microphone Adapter Kit for FUJIFILM Cameras

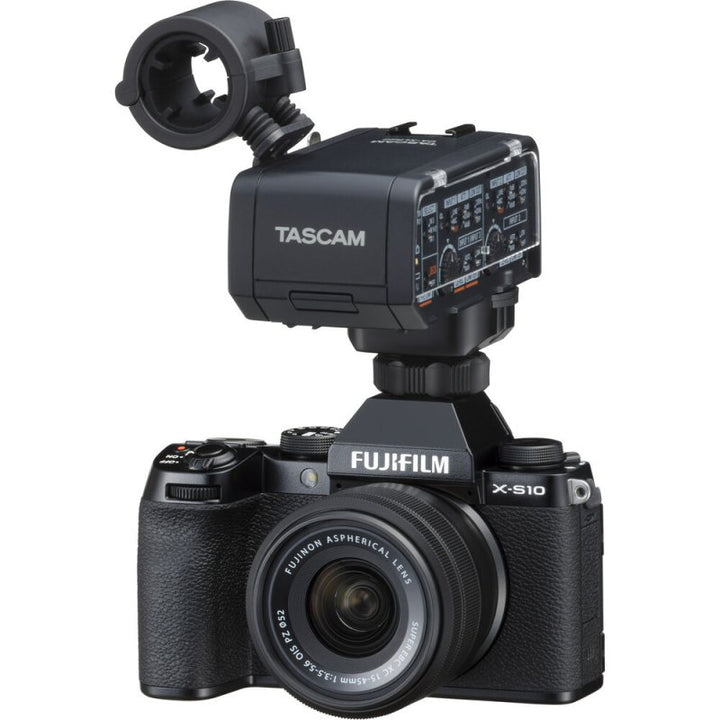

The Tascam CA-XLR2d-F is an XLR microphone adapter that delivers cable-free digital audio from professional XLR microphones directly to compatible FUJIFILM cameras via the digital hot shoe. By transmitting digital audio to the camera, the CA-XLR2d-F eliminates analog signal degradation and removes the need to synchronize audio and video in post-production. The camera also supplies power through the hot shoe, keeping the setup compact.

HDDA mic preamps and 48V phantom power support a wide range of condenser and dynamic microphones. Two balanced XLR/TRS combo inputs and a 3.5 mm input handle everything from a single shotgun mic for dialogue to dual condenser mics for stereo imaging or a line-level feed from a mixer. The output jack serves as a headphone monitor for real-time checking in the field. Two AA batteries are included for use with the analog 3.5 mm output, allowing the adapter to work with virtually any camera.

Compatible FUJIFILM Models (Digital Connection)

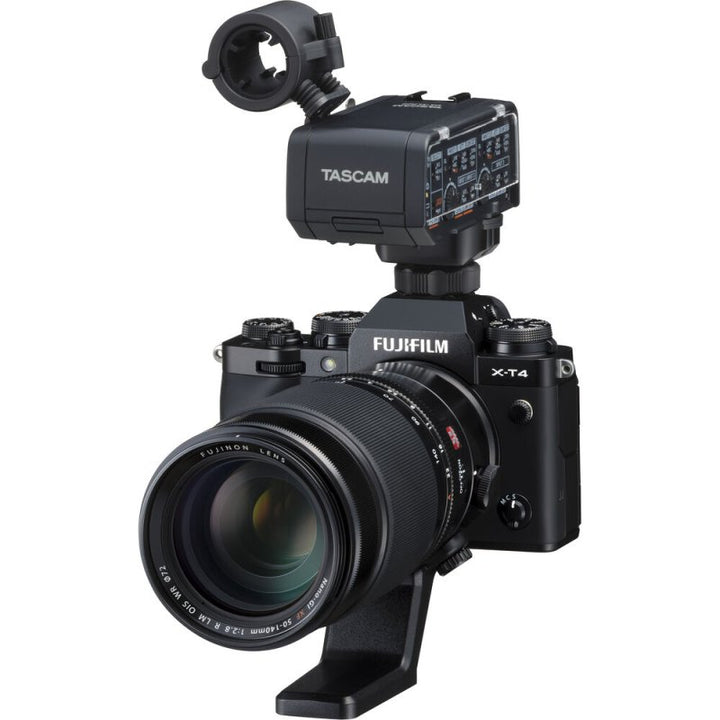

• GFX 100 II, GFX 100S, X-H2S, X-H2, X-S10, X-S20, X-T4, X-T5, X-T50

Specifications

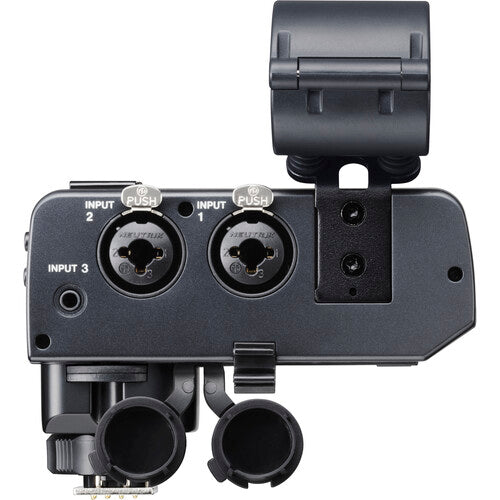

• Inputs: 2x XLR/TRS combo (balanced), 1x 3.5 mm stereo mini (unbalanced, plug-in power)
• Gain range: 66 dB
• Phantom power: 48V

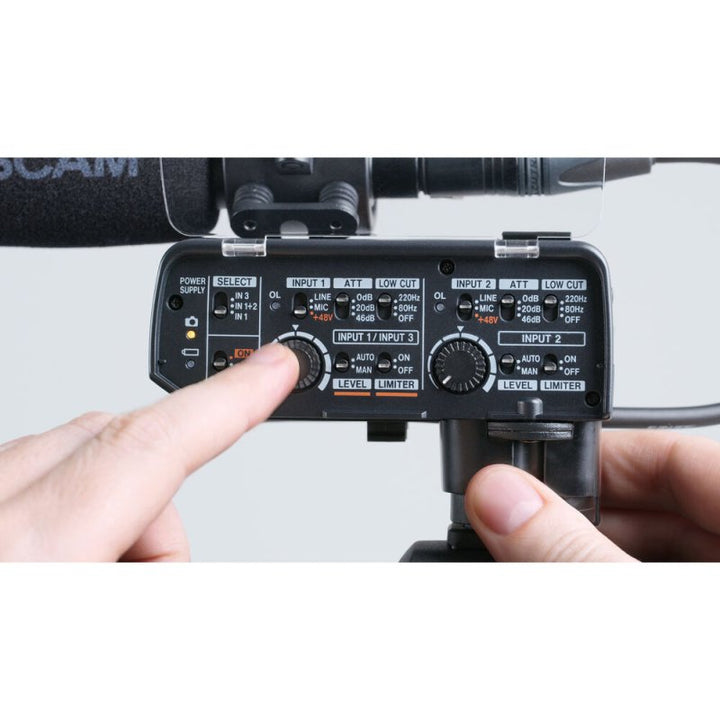

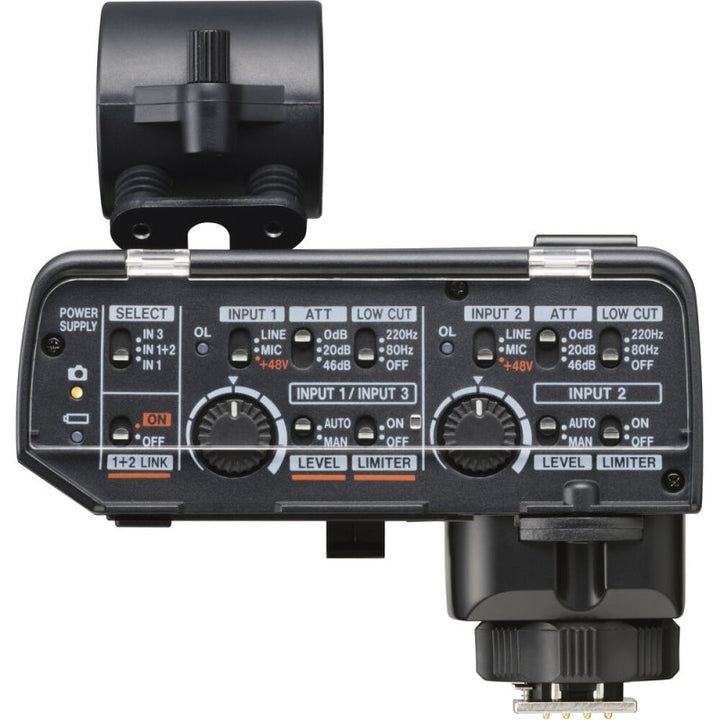

• Attenuation: 0 dB / 20 dB / 46 dB
• Low-cut filter: Off / 80 Hz / 220 Hz

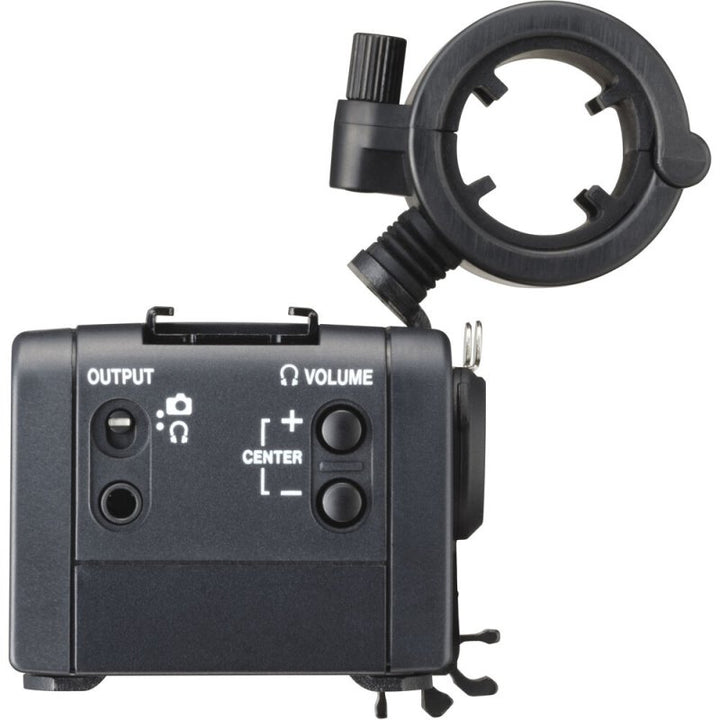

• Output: 3.5 mm stereo mini (camera / headphone selectable)
• A/D conversion: 48 kHz or 96 kHz, 16- or 24-bit
• Power: Camera-supplied via digital hot shoe or 2x AA batteries
• Dimensions (W x H x D): 3.47 x 4.69 x 4.33 in / 88.2 x 119.1 x 110.0 mm (excluding protrusions)
• Weight: 11.7 oz / 331 g (mic holder attached, battery holder not attached)
• Operating temperature: 32 to 104 F / 0 to 40 C

In the Box

• CA-XLR2d unit
• CA-AK1-F FUJIFILM digital hot shoe mount adapter (attached)
• CA-AK1-AN cold shoe mount adapter
• Battery holder
• Mic holder (attached)
• 3.5 mm stereo mini cable
• Quick guide
