Tascam BO-32DE 32-Channel D-Sub to Euroblock Breakout Box
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
The Tascam BO-32DE is a passive 1U rackmount breakout box that converts 32 channels of D-Sub 25-pin audio to Euroblock connections. Designed primarily for permanent installations, it provides a clean interface between D-Sub-equipped devices like the Tascam ML-16D and ML-32D Dante converters and fixed wiring in houses of worship, conference rooms, restaurants, and commercial AV systems.
32-Channel Euroblock to D-Sub Conversion

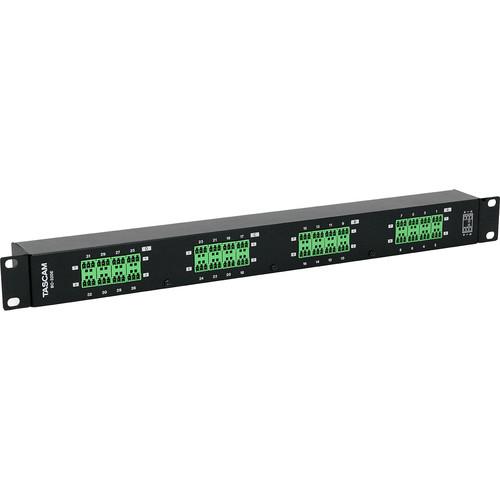

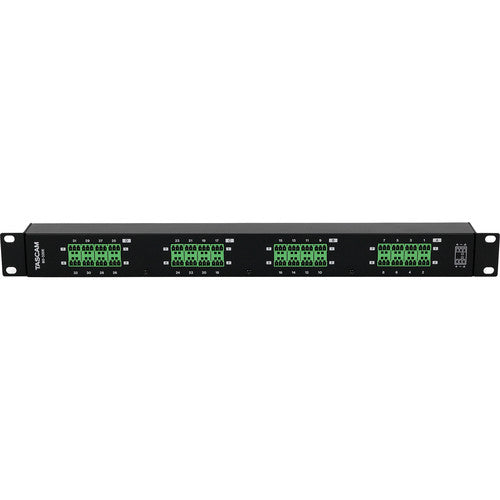

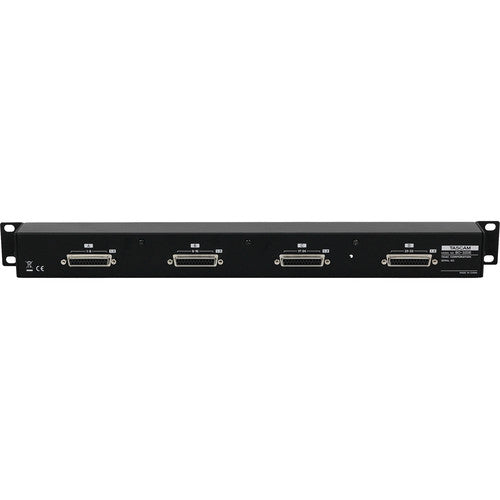

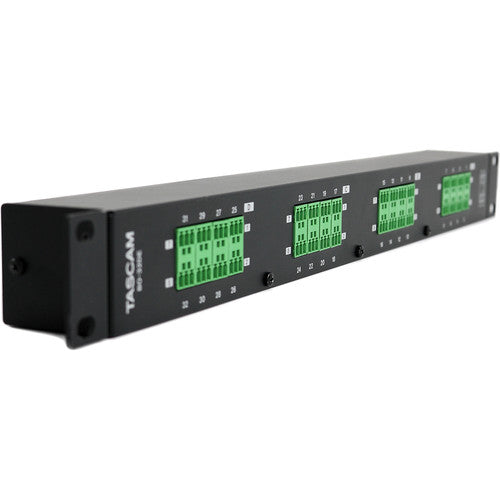

Sixteen Euroblock connectors on the front panel carry 32 balanced audio channels. Four D-Sub 25-pin connectors on the rear panel provide the D-Sub side. All connectors are bidirectional and can be used as inputs or outputs. Pin assignments comply with AES59-2012.
Installation-Friendly Design
Included Euroblock plugs feature tabs for secure wire attachment. A cable band kit minimizes stress on signal wires during connection and disconnection. Rack ears are reversible, so either the Euroblock or D-Sub side can face forward. Ears are removable for tabletop use. The compact depth of 50.8 mm (2.0 in) allows mounting in the rear of a rack case.
Specifications
- Front connectors: 16x Euroblock (balanced, 32 channels, 3.81 mm pitch)
- Rear connectors: 4x D-Sub 25-pin female
- Pin assignments: AES59-2012 compliant
- Construction: 1U rackmount metal chassis, passive (no power required)
- Dimensions: 482.6 x 44.1 x 50.8 mm / 19.0 x 1.74 x 2.0 in (W x H x D)
- Weight: 0.9 kg / 1.99 lbs
In the Box
- BO-32DE unit
- Euroblock plugs with tabs (x32)
- Cable band kit
- Rackmount screw kit
- Owner's Manual (including warranty)
