Tascam BO-16DX/OUT 16-Channel D-Sub to XLR Output Breakout Box
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

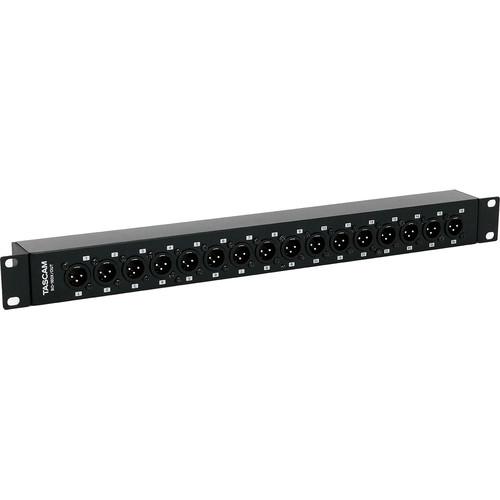

The Tascam BO-16DX/OUT is a passive 1U rackmount breakout box that converts 16 channels of D-Sub 25-pin audio to XLR output connections. Designed as a companion to the Tascam ML-16D and ML-32D Dante converters, it provides a clean interface between D-Sub-equipped devices and XLR-connected amplifiers, powered speakers, and other output destinations.
16-Channel D-Sub to XLR Conversion
Sixteen XLR-3-32 output connectors on the front panel are internally wired to two D-Sub 25-pin input connectors on the rear panel. Pin assignments comply with AES59-2012 for compatibility with Tascam ML-series converters and other professional equipment using the same standard.
Flexible Rack Mounting
The BO-16DX/OUT can be mounted in two 180-degree orientations to simplify cable runs and avoid D-Sub cable stress. Rack ears are reversible, so either the XLR or D-Sub side can face forward. Ears are removable for tabletop use. The compact depth of 51.5 mm (2.0 in) allows mounting in the rear of a rack case or use as a patch bay.
Specifications
- Front connectors: 16x XLR-3-32 (output)
- Rear connectors: 2x D-Sub 25-pin female
- Pin assignments: AES59-2012 compliant
- Construction: 1U rackmount metal chassis, passive (no power required)
- Dimensions: 482.6 x 44.1 x 51.5 mm / 19.0 x 1.74 x 2.03 in (W x H x D)
- Weight: 0.9 kg / 1.99 lbs
In the Box
- BO-16DX/OUT unit
- Rackmount screw kit
- Owner's Manual (including warranty)
