SoundID Ref Multichannel with Apollo

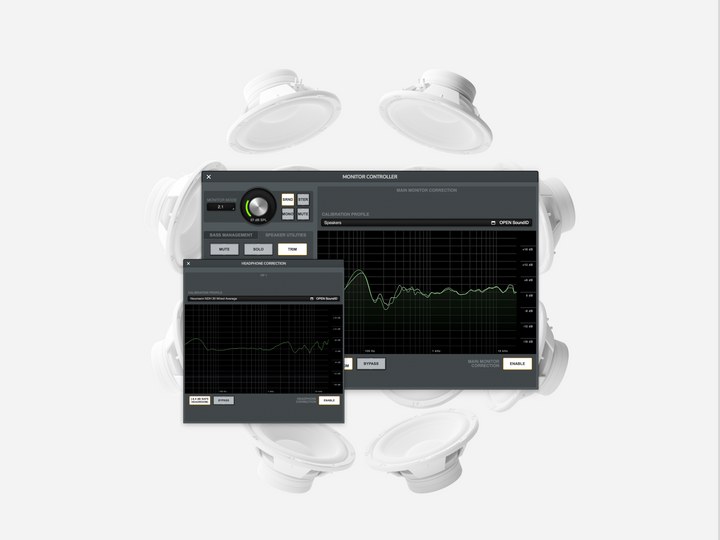

Enhance your multichannel monitoring with SoundID Reference for Multichannel integrated directly into Universal Audio’s Apollo X Gen 1 and Gen 2 interfaces. This bundle combines SoundID Reference for Multichannel and the Apollo Monitor Correction Add-on into a single license key. SoundID Reference for Multichannel is a calibration software that delivers consistently accurate studio reference sound on your existing headphones, speakers and multichannel systems. With an applied calibration profile the software sets the frequency response target to be completely flat across all audible frequencies. The frequency response target is designed to emulate neutral-sounding speakers.

Key features of SoundID Reference

Reliable, consistent, easy to use calibration software for all of your audio system:

• Ready-to-use headphone calibration for 500+ models
• Accurate speaker measurements and calibration for audio systems from stereo up to 9.1.6 channels
• 3 filter modes: Zero Latency, Mixed and Linear Phase
• Additional DSP processing controls: Mono, Dry/Wet and Safe Headroom
• MIDI mapping in the SoundID Reference app for various controls
• User Presets in the SoundID Reference app for switching quickly between predefined output device/channel pair combinations

Control your target sound:

• Flat target curve used by over 200'000+ music creators globally
• Custom Target: target curve adjustments in real time
• Translation Check: simulate 20+ different devices and environments

High performance and flexibility:

• Zero latency plugin DSP
• Near-zero latency system-wide calibration on Windows
• Native support for Apple Silicon (M-series chip devices)

Export your calibration profile to supported hardware:

• Apply calibration directly on DSP-enabled hardware
• 10+ device integrations available (audio interfaces, speakers, Dolby Atmos Renderer, and more)

What's included

• Activation key for the SoundID Reference product license: the product can be activated and used on 3 devices
• Activation key for the Apollo Monitor Correction Add-on product license: the product can be activated and used on 3 devices
• SoundID Reference standalone app for speakers and headphones (ASIO, WASAPI, APO, HAL)
• SoundID Reference DAW plugin for speakers and headphones (AU, VST2, VST3, AAX)
• Averaged profiles for 500+ supported headphone models
• Apollo Monitor Correction Add-on for integrated functionality with Apollo X devices

Prerequisite Requirements

Any of the following supported Apollo X audio interfaces:

• Apollo X Gen 1: Apollo Twin X Duo/Quad, Apollo Twin X USB, Apollo x4, Apollo x6, Apollo x8, Apollo x8p, Apollo x16
• Apollo X Gen 2: Apollo Twin X Duo/Quad, Apollo x4, Apollo x6, Apollo x8, Apollo x8p, Apollo x16, Apollo x16D

Further Requirements

• UAD Console app v1.2.1 (or newer) installed, and UAD-2 Software v11.5.1 (or newer) installed
• 2.0 - 9.1.6 speaker system
• Sonarworks supported or Sonarworks individually calibrated headphones
• Stable internet connection (offline use not supported)
• SoundID Reference Measurement Microphone, or Sonarworks XREF 20 Measurement Microphone
• Microphone stand and clip (ø21 mm/0.83”) for multichannel system measurements
• XLR to XLR audio cable

Audio Interface Requirements

• +48v Phantom Power support
• The same audio interface must be used for input/output
• The audio interface must support and be set to one of the following sample rate formats: 44.1kHz, 48kHz, 88kHz, 96kHz, 192kHz
• The audio hardware setup must consist of a single external hardware device only (additional preamp units are supported)
