[Box] SoundID Reference Measurement Mic
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

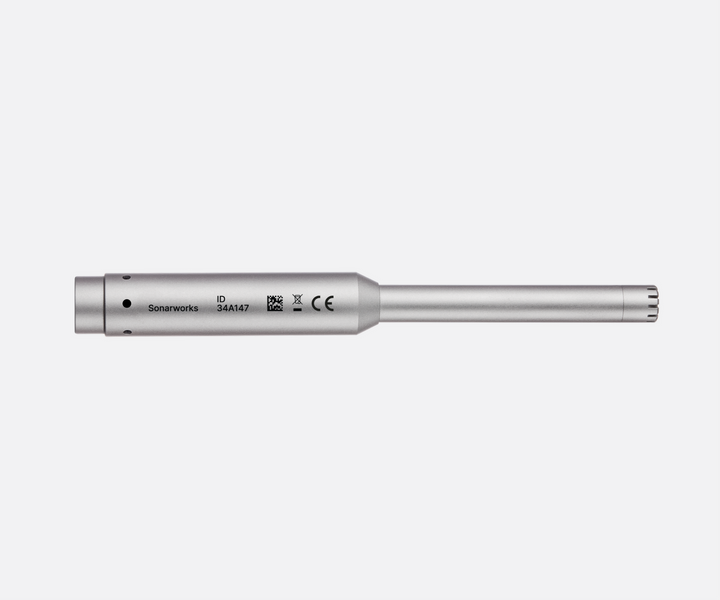

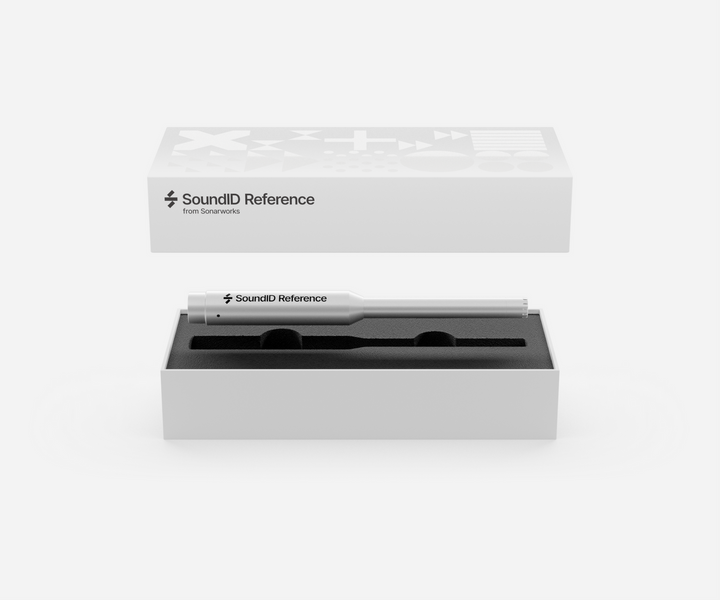

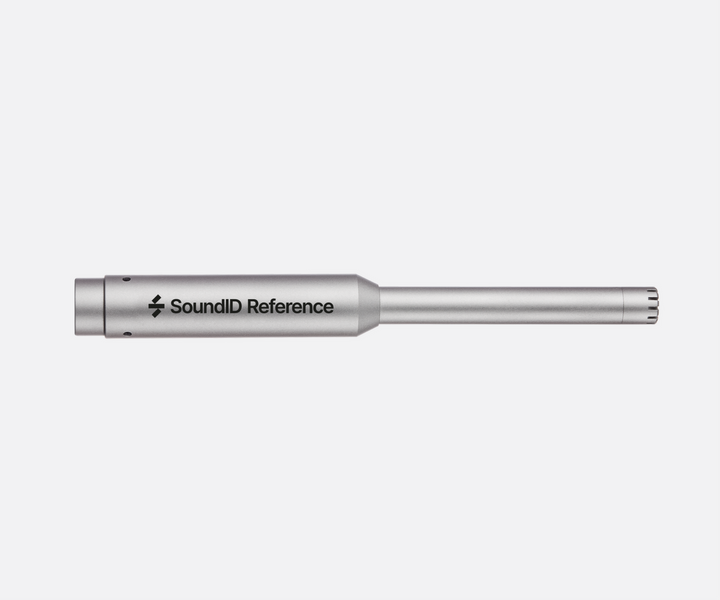

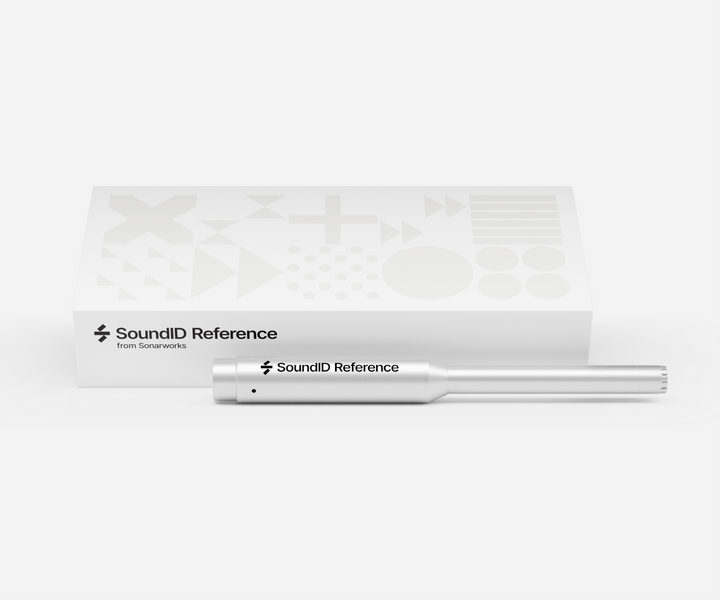

An omnidirectional measurement microphone with an individual calibration profile. Every microphone has been measured by Sonarworks acousticians against an ANSI-certified measurement microphone. This means perfect accuracy within the audible range and freedom from sample-to-sample irregularities.
Every user can download a 21-day trial for SoundID Reference for Speakers & Headphones. Enjoy unlimited functionality and finally hear how your speakers really sound!
Microphone specification
- Houses pre-polarized electret-condenser capsule
- Frequency response: 20 Hz - 20kHz with supplied calibration profile
- Omnidirectional polar pattern
- Sensitivity is rated at -37dB/Pa (14 mV)
- Self-noise: 24 dB
- S/N ratio: 70 dB
- Dynamic range: 106dB
- Maximum SPL: 132 dB SPL
System requirements for SoundID Reference compatibility
- Valid license for SoundID Reference for Speakers and Headphones, or SoundID Reference for Multichannel
- 2.0 stereo speaker system, or a multichannel speaker system
- XLR to XLR audio cable
- Microphone stand for multichannel system measurements
- Audio interface requirements during the speaker measurement process:
- +48v Phantom Power support
- The same audio interface must be used for input/output
- The audio interface must support and be set to one of the following sample rate formats: 44.1kHz, 48kHz, 88kHz, 96kHz, 192kHz
- The audio hardware setup must consist of a single external hardware device only (additional preamp units are supported)
