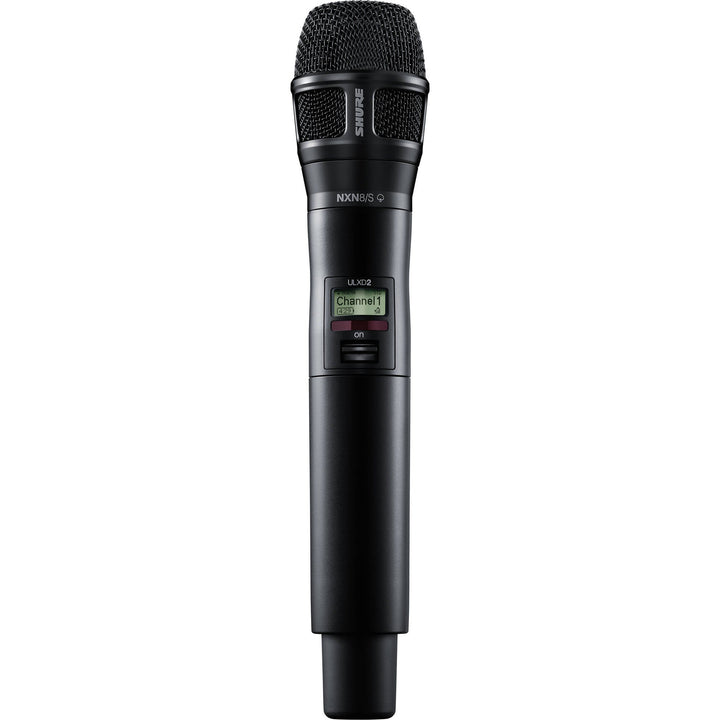

ULXD2/N8SB-G57

Overview

Large conference and convention installations come with unique wireless challenges. ULX-D® Digital Wireless is the trusted and reliable partner for secure, scalable and durable performance, campus-wide. With expanded wide-tuning frequency bands and up to a 40% increase in rechargeable battery run-time, ULX-D Wireless provides intelligent solutions for installations and event requirements of all sizes.

For higher channel counts in high-tier applications, the ANX4 Scalable Wireless Receiver receives up to 24 channels of Shure ULX-D wireless audio in a single rack space. Choose ANX4 to maximise use of your budget, rack space, and rack weight.

Details

Uncompromising Digital Wireless Audio

• 24-bit/48 kHz digital audio that delivers incredibly clear and accurate reproduction of the source material
• 20 Hz – 20 kHz frequency range with flat response
• Greater than 120 dB dynamic range through the analog outputs
• 130 dB dynamic range (typical) using Dante and AES67 digital networked audio
• 60 dB of adjustable system gain easily accessible from the receiver front panel
• No transmitter gain adjustments needed: optimised for any input source
• Wide selection of trusted Shure Microphones

Extremely Efficient and Reliable RF Performance

• Expanded tuning range - ULXD1, ULX2, ULXD4D and ULXD4Q components now available with up to 166 MHz overall tuning range (region dependent)*
• Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
• High Density mode enables up to 47 active transmitters in one 6 MHz TV channel (63 in one 8 MHz TV channel), with no audio quality degradation
• Rock-solid signal stability with no audio artifacts over the entire 100 meter line-of-sight range using standard supplied ½ wave antennas
• Selectable 1, 10, and 20 mW transmitter RF output power (comparable to 5 times the analog RF output power equivalent)
• For ease of use, optimised scanning automatically finds, prioritises, and selects the cleanest frequencies available.

*Note that ULXD4, ULXD6 and ULXD8 remain available for operation on legacy frequency bands

Scalable, Intelligent Hardware

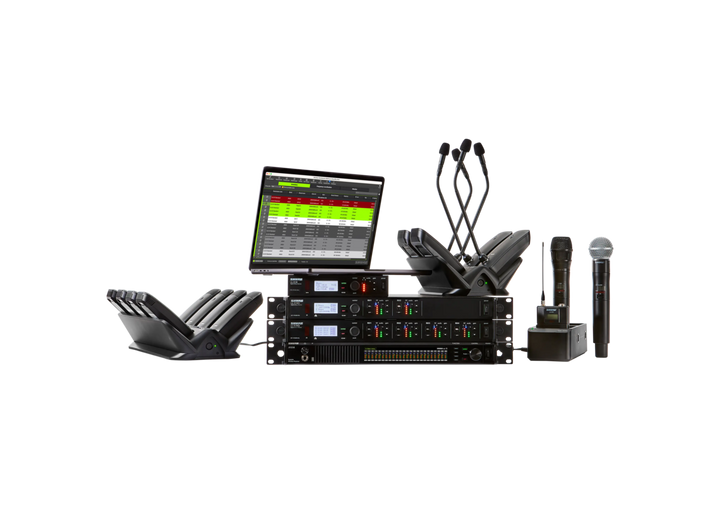

• Single (half-rack), Dual, and Quad (full-rack) receiver form factors for any size installation
• AES-256 bit encryption equipped for secure wireless transmission
• Ethernet networking allows for streamlined setup across multiple receivers.
• Wireless Workbench 6: The ULX-D is compatible with Wireless Workbench 6 software for advanced frequency coordination, monitoring, and control.
• Comprehensive 3rd party control and monitoring across subnets
• AXT600 Axient® Spectrum Manager compatibility
• Rugged metal housing on both transmitters and receiver
• Dual and Quad receivers additionally feature:
  • Expanded tuning range (up to 166 MHz, region dependent)
  • RF cascade ports, internal power supply, and dual Ethernet ports
  • Dante™ digital networked audio over Ethernet
  • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
  • Audio summing routes audio signal to multiple outputs

Shure Advanced Power Management

• SB900 Series rechargeable batteries provides ULX-D transmitters with up to 12 hours of run-time use
• Lithium-Ion chemistry and intelligent Shure battery circuitry for precision metering and zero memory effect saving the equivalent of 1000 disposable batteries
• Transmitters and receivers display remaining battery life in hours and minutes, accurate to within 15 minutes.
• AA backwards compatibility

How It Works

ULX-D continues to push wireless audio further. Expanded tuning ranges that provide more open channels for use region-wide. Higher density, running up to 47 systems simultaneously within 6 MHz. These reasons and more are why ULX-D continues to be the standard bearer in wireless technology for installations and performance events, around the world.

Quality that’s in the Details

• Multiple spectrum options, including VHF, UHF, 900 ISM, 1.2 GHz (Japan only), and 1.5 GHz and 1.8 GHz (Europe only)
• Wide-tuning handheld and bodypack transmitters
• Essential boundary and gooseneck transmitter options
• Choice of receiver type (single or wide-tuning dual and quad)
• ANX4 Scalable Wireless Receiver allows up to 24 ULX-D channels to be received in one rack space
• Monitoring and control functionality from Wireless Workbench® 6, SystemOn, and ShurePlus™ Channels apps.
• Dual and quad receivers include DANTE™ digital audio networking
• Dante Domain Manager (DDM) compatible for managing enterprise-wide Dante audio network deployments
