Description
Overview

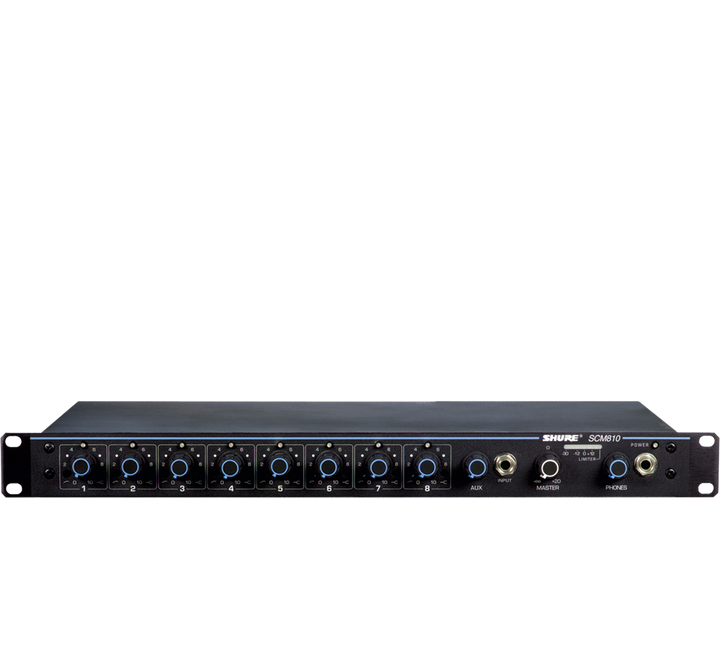

The Shure SCM810 is an 8-channel automatic microphone mixer using Shure's IntelliMix technology. It doubles the channel count of the SCM410 while maintaining the same automatic mixing algorithms, making it ideal for large conference installations, courtrooms, and broadcast applications.
Key Features
- IntelliMix technology: MaxBus gating, noise-adaptive threshold, and last-mic-lock-on
- 8 channels: Each with individual gain, EQ, and gating controls
- Linkable: Cascade up to 13 units for 100+ channels
- Logic I/O: External control via TTL-compatible logic interface
Specifications
- Inputs: 8 × balanced XLR (mic/line)
- Outputs: 1 × balanced XLR main, 1 × balanced XLR aux, 1 × 1/4" headphone
- Frequency response: 20 Hz – 20 kHz (±1 dB)
- THD: <0.05% at 1 kHz
- Dynamic range: >100 dB
- Phantom power: 48 VDC per channel
- Power: IEC AC (100–240 VAC, 50/60 Hz)
- Dimensions: 482 × 356 × 44 mm (19" × 14" × 1.7") (1U rack)
- Weight: 3.6 kg (8 lb)
In the Box
- SCM810 automatic mixer
- IEC power cable
- Rack-mount ears
