Description
Overview

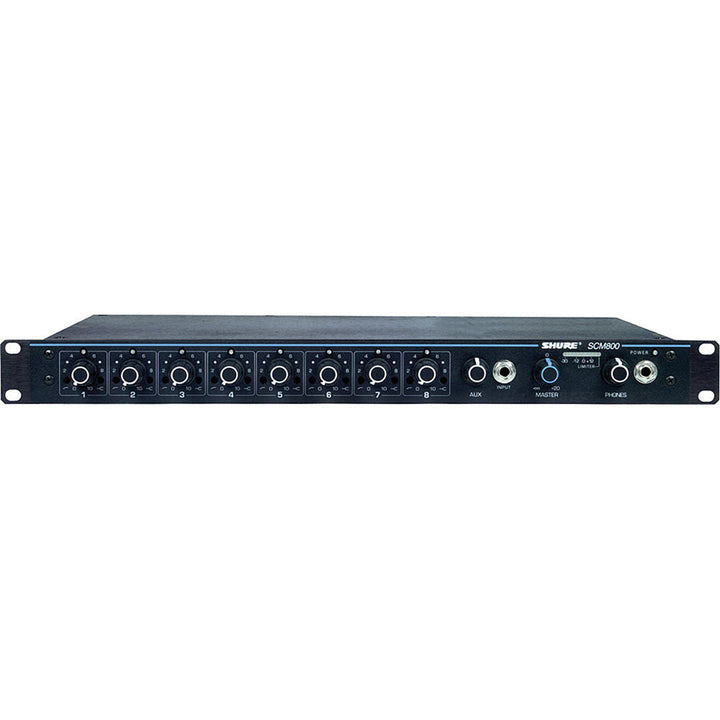

The Shure SCM800 is an 8-channel microphone mixer (non-automatic) that provides straightforward level mixing for installed sound applications. Unlike the SCM810 which features automatic gating, the SCM800 operates as a standard mixer with individual channel controls.
Key Features
- 8 balanced XLR inputs: Dedicated mic inputs with phantom power
- Individual gain controls: Per-channel level adjustment and peak LED
- Headphone monitor: 1/4" TRS output for local monitoring
- Link output: Cascade multiple units for expanded channel count
Specifications
- Inputs: 8 × balanced XLR (mic)
- Outputs: 1 × balanced XLR main, 1 × 1/4" TRS headphone
- Frequency response: 20 Hz – 20 kHz (±1 dB)
- THD: <0.05% at 1 kHz
- Phantom power: 15 VDC per channel
- Power: External 15 VDC supply (included)
- Dimensions: 482 × 178 × 44 mm (19" × 7" × 1.7") (1U rack)
- Weight: 2.0 kg (4.4 lb)
In the Box
- SCM800 8-channel mixer
- 15 VDC power supply
- Rack-mount ears
