QLXD2/N8CB-H50

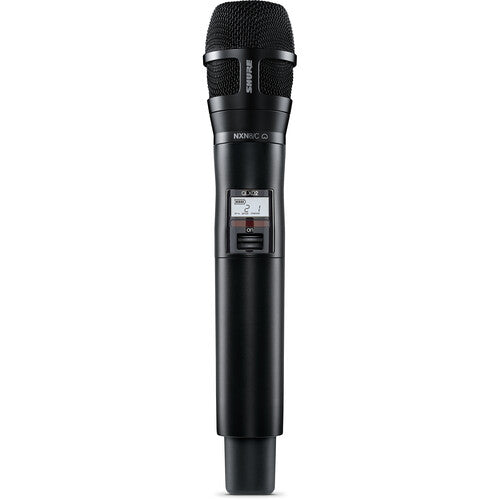

The Shure QLXD2/N8C is a digital handheld wireless microphone transmitter compatible with QLX-D receivers. It comes equipped with a Nexadyne 8/C dynamic cardioid capsule featuring an innovative Revonic dual-transducer design that uses two separate, but interdependent sets of diaphragms, voice coils, and magnets. This unique technology gives this dynamic mic a condenser-like clarity with a crisp, yet natural high-end and plenty of detail—allowing vocalists to worry less about mic technique and instead focus on delivering powerful performances. The cardioid polar pattern reduces off-axis pick up, for less bleed from other sources and fewer feedback issues.

This version of the QLXD2/N8C operates in the H50: 534 to 598 MHz band of the of the UHF spectrum, providing a wide 64 MHz tuning range with 2560 selectable frequencies available to secure a clear transmission channel. It operates for up to 9 hours on two AA batteries, with a transmission range up to 330' and a selectable 1/10mW RF power output.

With a rugged, yet lightweight aluminum housing, the QLXD2/N8C transmitter delivers pristine audio quality and RF performance as well as AES 256-bit encryption for secure transmission and advanced rechargeability options. It is well suited for sound reinforcement applications in medium-sized venues and houses of worship as well as A/V installations in conference, educational, and corporate facilities.
