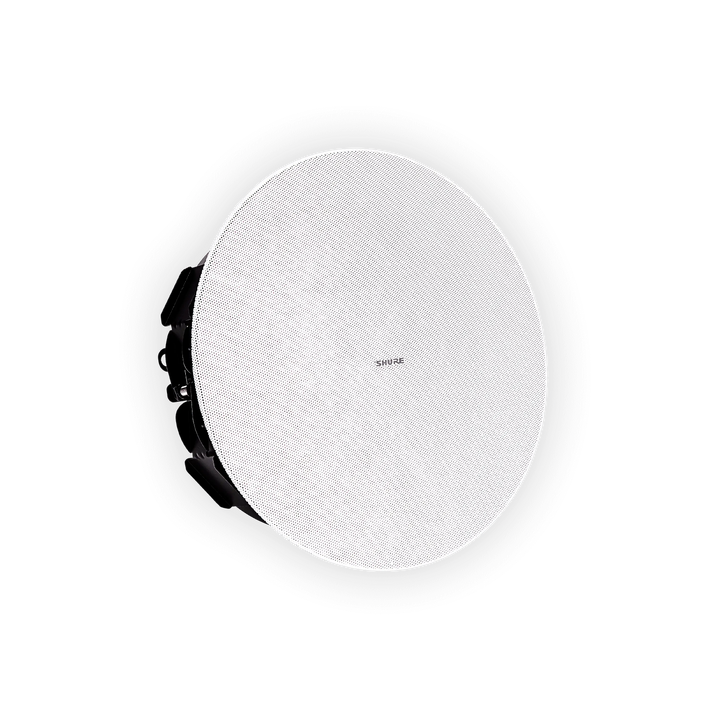

Shure MXN5W-C Networked Ceiling Loudspeaker (White)
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
Overview
The Shure MXN5W-C is a Dante-networked ceiling loudspeaker with a 5.25" (133 mm) coaxial driver in white finish. It receives audio directly from the Dante network via PoE, with built-in DSP for EQ, delay, and limiting — no external amplifier or processor required. Designed to complement MXA ceiling array microphones for complete conferencing ecosystems.
Key Features
- Dante-networked: Receives audio directly from Dante network — no amplifier needed
- Built-in DSP: EQ, delay, compression, and limiting configured via web interface
- 5.25" coaxial driver: Full-range speech reproduction optimized for conferencing
- Drop-ceiling mount: Low-profile design for standard ceiling tile installation
- Software-deployed: Configured and managed via Shure Designer and SystemOn
Specifications
- Driver: 5.25" (133 mm) coaxial, full-range
- Frequency response: 110 Hz – 20 kHz
- Max SPL: 84 dB (continuous)
- Amplification: Built-in Class D
- Audio input: 2 × Dante channels (selectable)
- DSP: 5-band parametric EQ, delay (up to 100 ms), compressor/limiter
- Power: PoE (802.3af)
- Coverage angle: 130° conical
- Dimensions: 200 mm (7.9") diameter × 165 mm (6.5") depth
- Weight: 1.8 kg (4.0 lb)
- Color: White
In the Box
- MXN5W-C networked ceiling loudspeaker
- Ceiling mounting hardware (tile bridge, clamps)
- Plenum-rated backcan
