Shure MXA902 Integrated Conferencing Ceiling Array (White, 24" Tile, Dante)
Tile Size
Connectivity
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
Overview

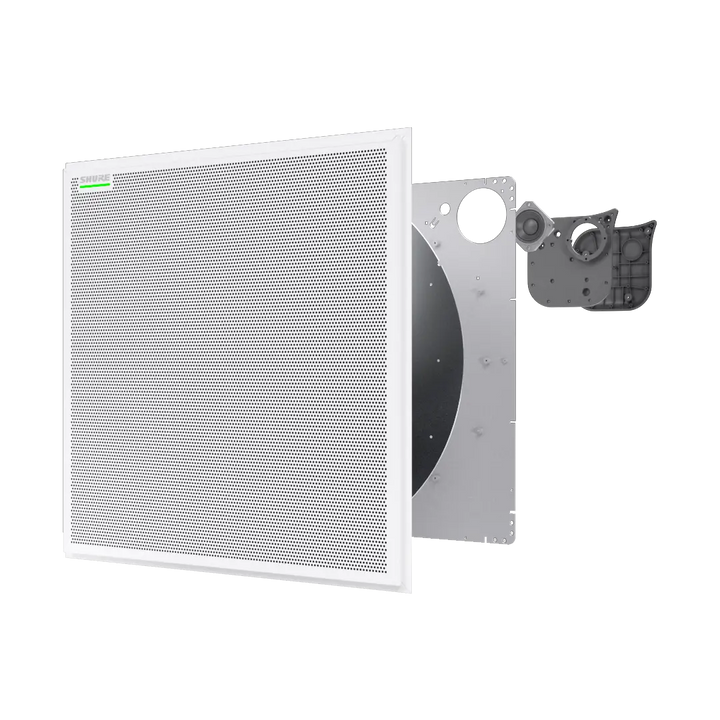

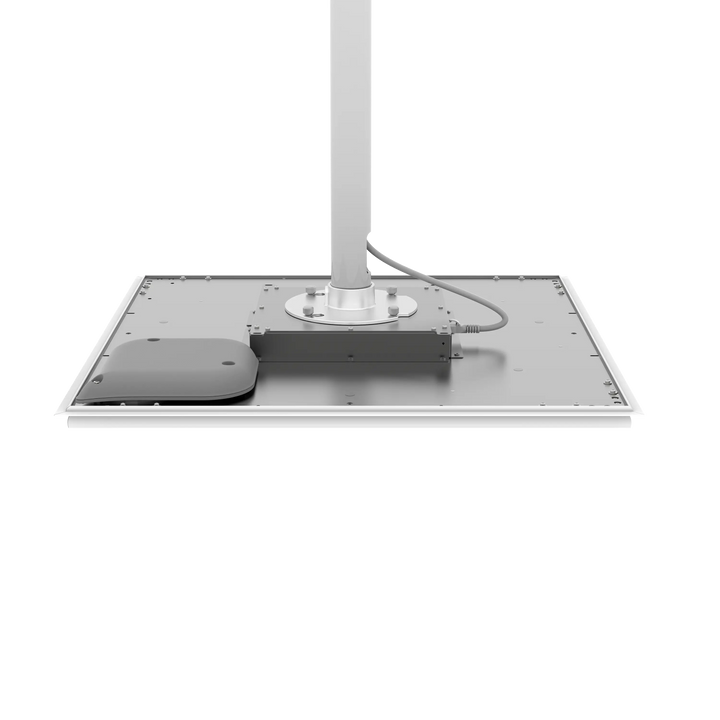

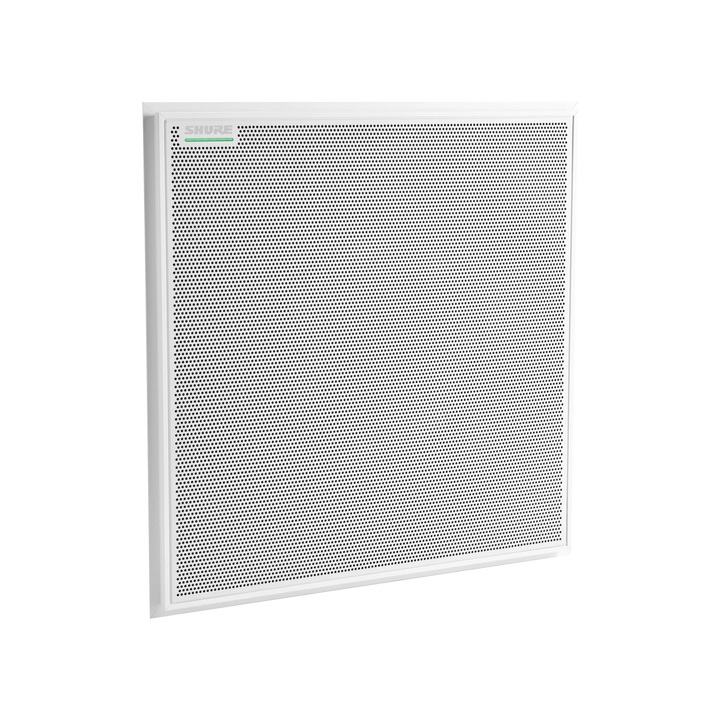

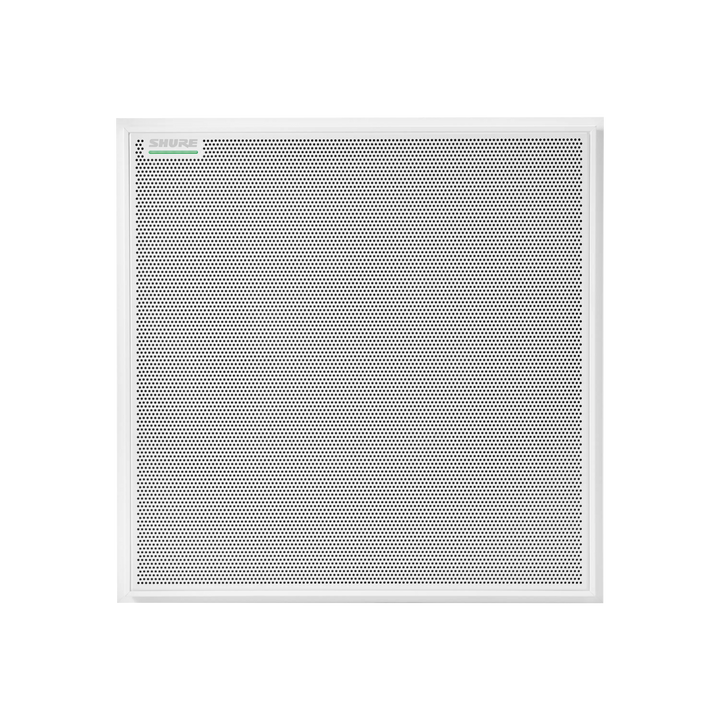

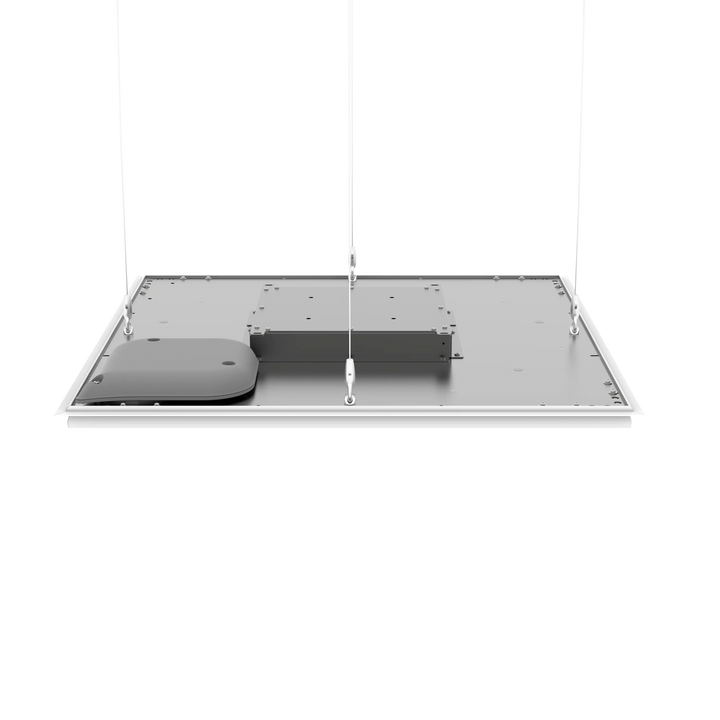

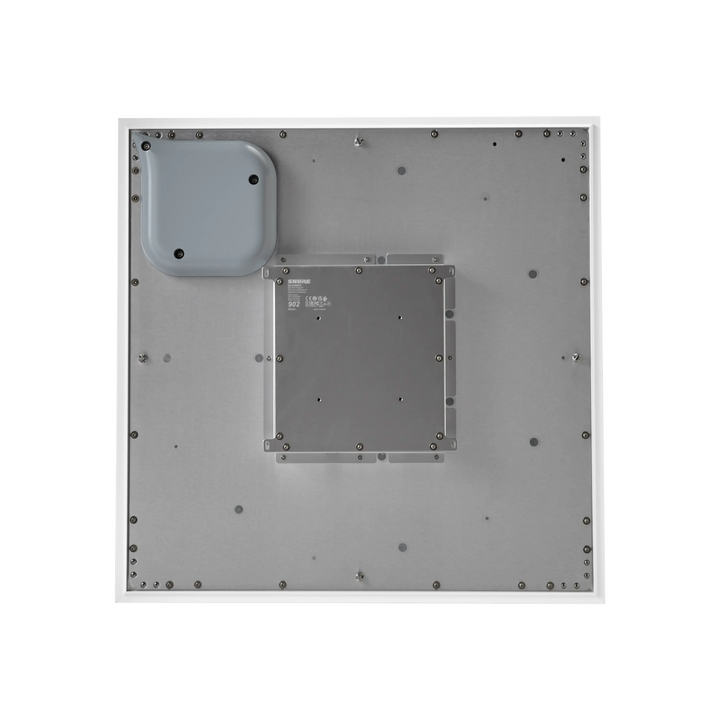

The Shure MXA902W-S is an integrated conferencing ceiling array that combines a ceiling array microphone, IntelliMix DSP, and loudspeaker in a single device for standard 24" (600 mm) ceiling grids. It provides complete conference room audio — both microphone pickup and far-end playback — from one PoE+ network connection.
Key Features
- All-in-one ceiling conferencing: Microphone array + DSP + loudspeaker in a single device
- Automatic coverage: Self-adjusting pickup zones adapt to room occupancy
- Integrated IntelliMix DSP: AEC, noise reduction, AGC, and de-reverb — no external processor needed
- Built-in loudspeaker: Far-end audio playback without external speakers
Specifications
- Microphone: Ceiling array with automatic coverage technology
- DSP: IntelliMix (AEC, noise reduction, AGC, de-reverb, compressor/limiter)
- Loudspeaker: Integrated full-range driver
- Audio outputs: Dante (multiple channels)
- Room coverage: Up to 6.1 × 6.1 m (20 × 20 ft)
- Power: PoE+ (802.3at)
- Tile size: 595 × 595 mm (23.4" × 23.4") for standard 24" grid
- Weight: 5.9 kg (13 lb)
- Color: White
In the Box
- MXA902 integrated ceiling array
- Tile bridge support rails
- Ethernet cable
