Description
Overview

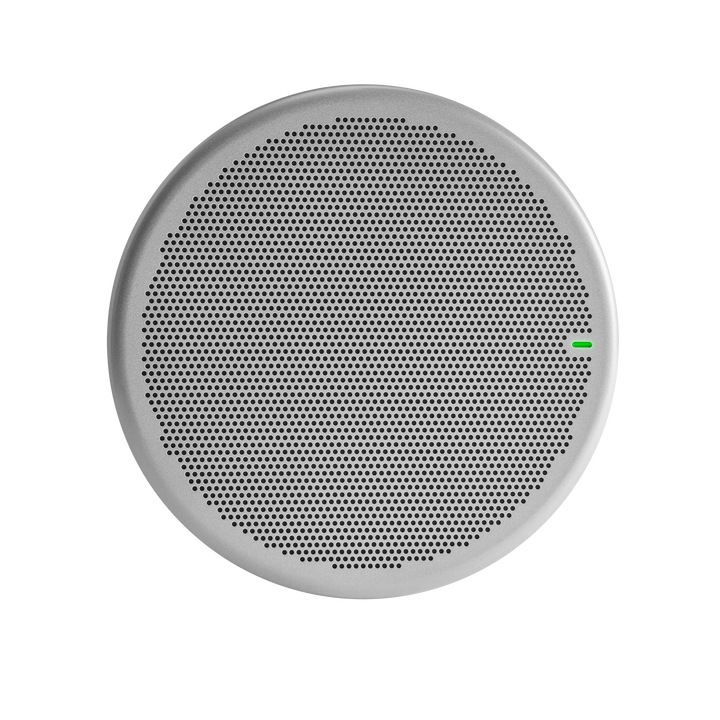

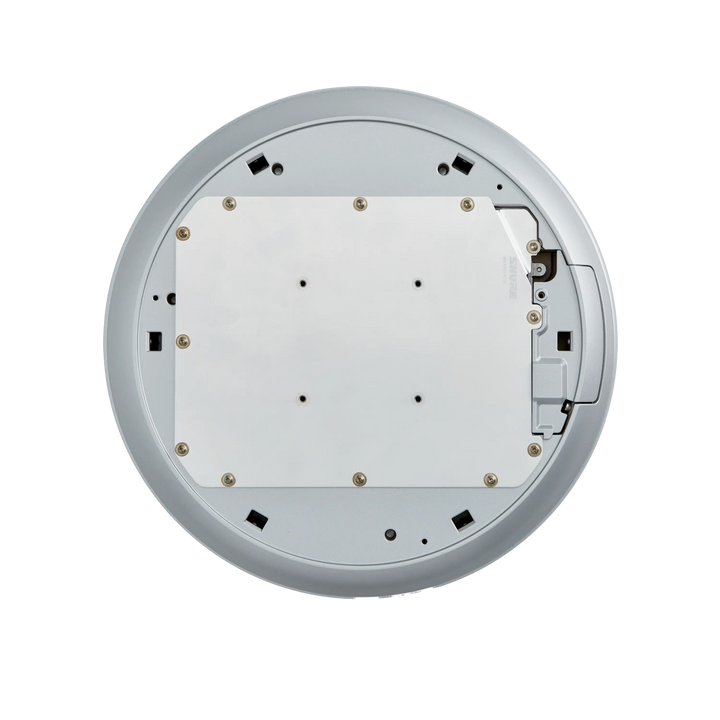

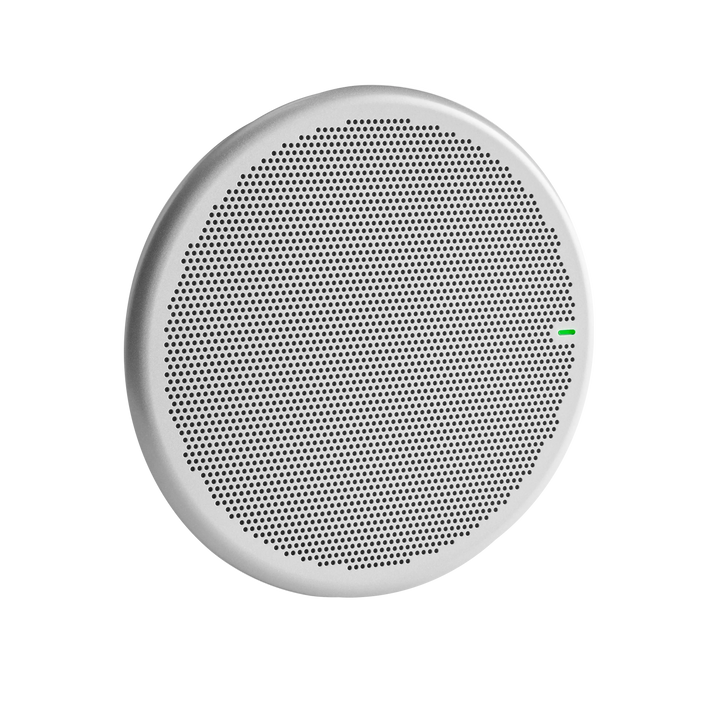

The Shure MXA901AL-R is a round ceiling array microphone in aluminum finish with integrated IntelliMix DSP. It combines automatic coverage technology with built-in audio processing (AEC, noise reduction, AGC) in a single PoE device — no external DSP required for most conferencing applications.
Key Features
- Automatic coverage: Self-adjusting pickup zones that adapt to room occupancy without manual lobe steering
- Integrated IntelliMix DSP: Built-in AEC, noise reduction, automatic gain control, and de-reverb
- No external DSP needed: Processes audio internally — connect directly to a codec or ANIUSB
- Round form factor: Flush-mounts into ceiling or surface-mounts with included hardware
Specifications
- Coverage: Automatic (no manual lobe configuration required)
- DSP: IntelliMix (AEC, noise reduction, AGC, de-reverb, compressor/limiter)
- Frequency response: 100 Hz – 11.8 kHz
- Audio outputs: Up to 8 × Dante channels (direct + automix)
- Room coverage: Up to 9.1 m × 9.1 m (30 ft × 30 ft)
- Power: PoE+ (802.3at)
- Dimensions: 292 mm (11.5") diameter × 58 mm (2.3") depth
- Weight: 1.5 kg (3.3 lb)
- Color: Aluminum
In the Box
- MXA901 ceiling array microphone
- Ceiling mount bracket and tile bridge
- Ethernet cable
