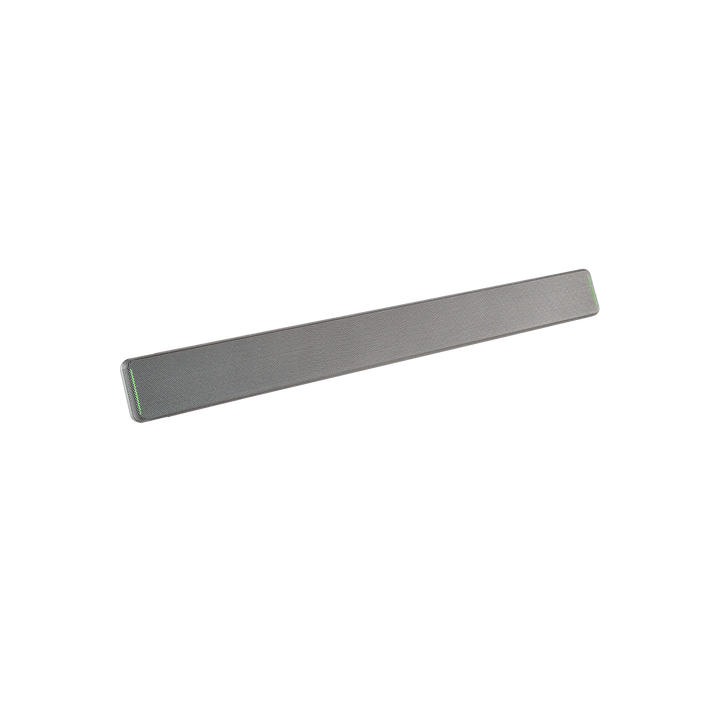

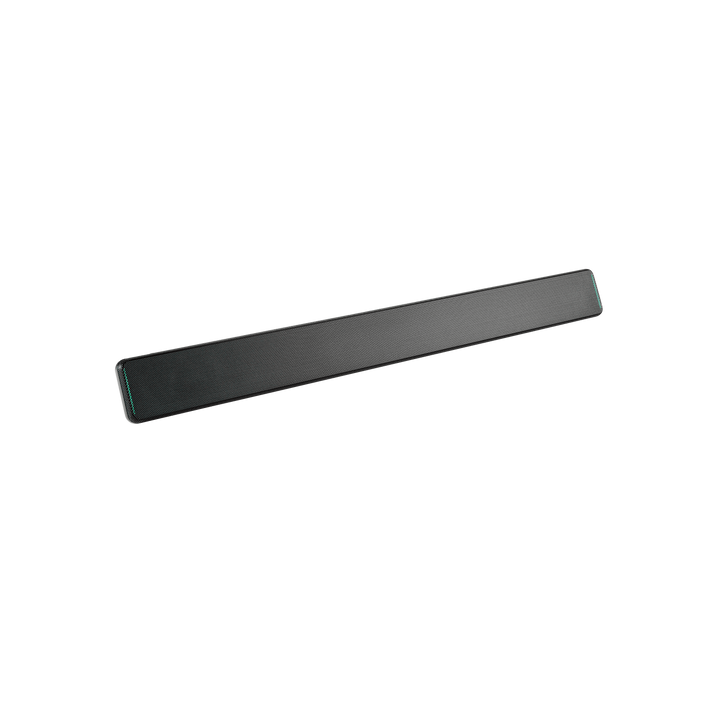

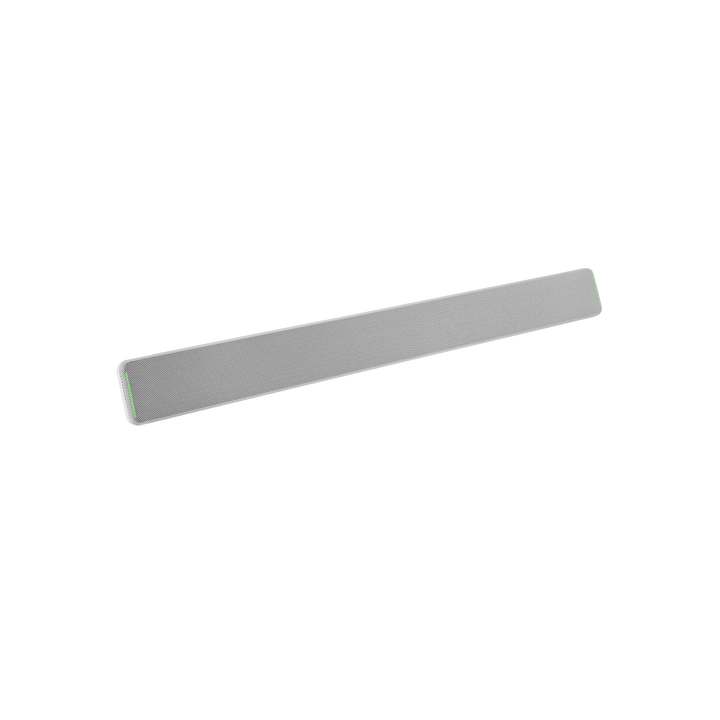

Shure MXA710 Linear Array Microphone (Aluminum, 60 cm)

Overview

The Shure MXA710 is a premium linear array microphone with Steerable Coverage™ technology and built-in IntelliMix® DSP for conferencing and AV-equipped spaces. Its low-profile design mounts on walls, ceilings, or tables. The 2-foot (60 cm) model provides 4 steerable lobes, ideal for huddle rooms and smaller meeting spaces.

Key Features

• IntelliMix® DSP built-in: AEC, noise reduction, AGC, compressor, de-esser, 4-band parametric EQ
• Dante™ / AES67 networked audio with Shure audio encryption

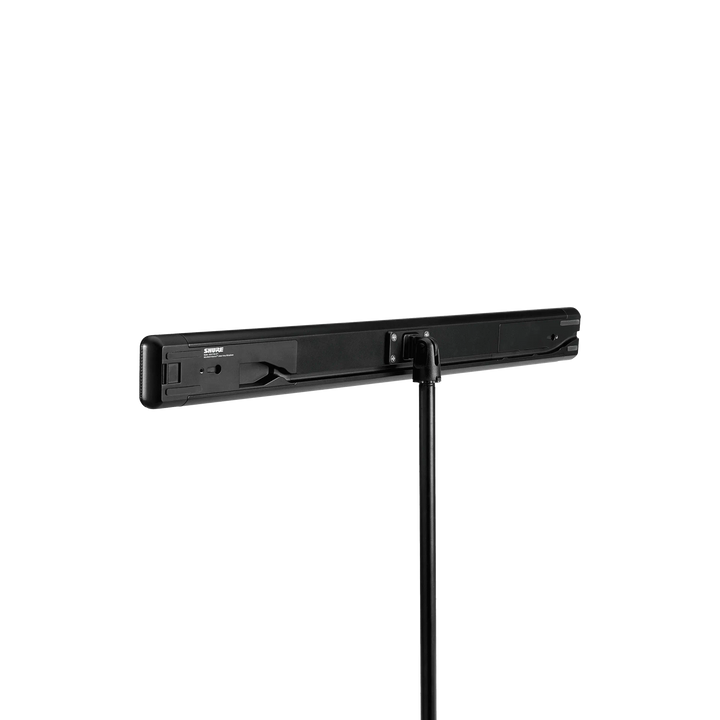

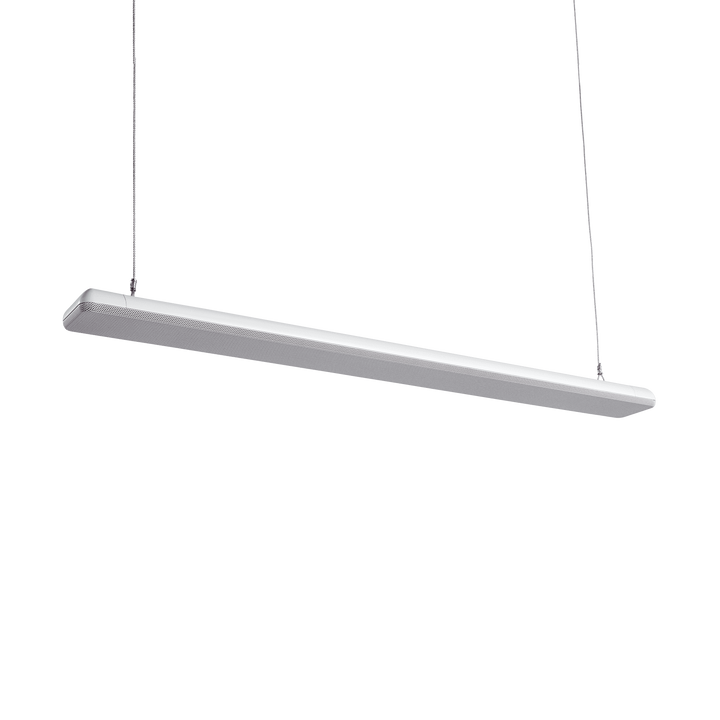

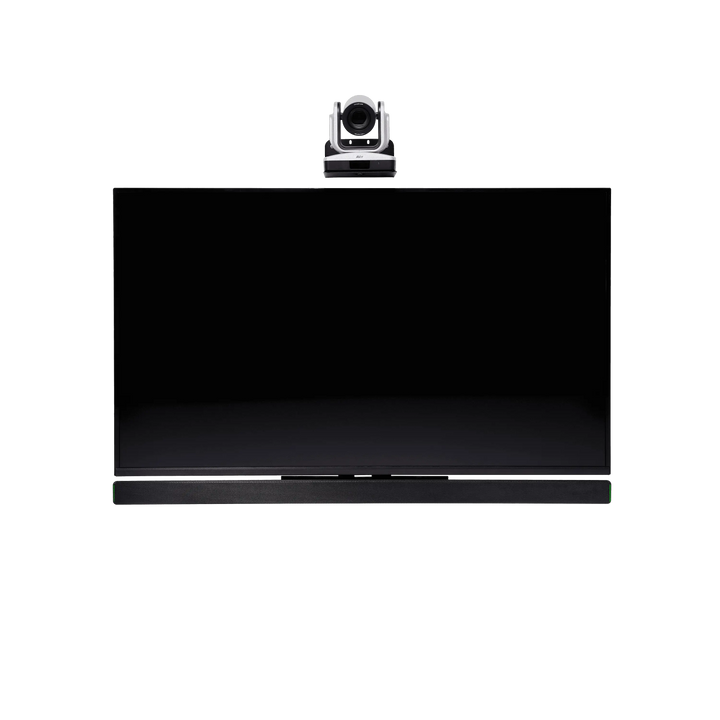

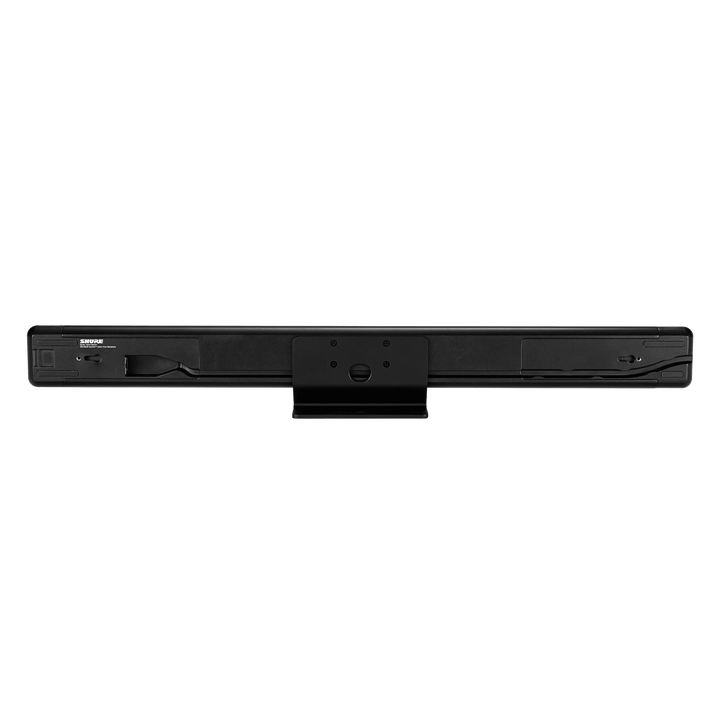

• Wall, ceiling, or table mount versatility
• IP5X dust protection and UL2043 plenum rated
• Shure Designer software for configuration and monitoring

Specifications

• Color: Aluminum
• Array type: Linear
• Steerable lobes: 4
• Dante channels: 6 (4 independent + 1 automix + 1 AEC reference)
• Lobe width: Narrow 30° / Medium 40° / Wide 70° (adjustable)
• Frequency response: 100 Hz – 20 kHz
• Sensitivity: –7.4 dBFS/Pa at 1 kHz
• SNR: 71.2 dB (A-weighted)
• Dynamic range: 78.5 dB
• Latency: 8.7 ms (direct) / 19.3 ms (automix)
• Sampling: 48 kHz / 24-bit
• Power: PoE, Class 0 (10W max)
• Connector: RJ45 (Ethernet/Dante/Power)
• Dimensions: 22 × 60 × 636 mm (0.87 × 2.36 × 25.04 in)
• Weight: 0.91 kg (2.0 lb)

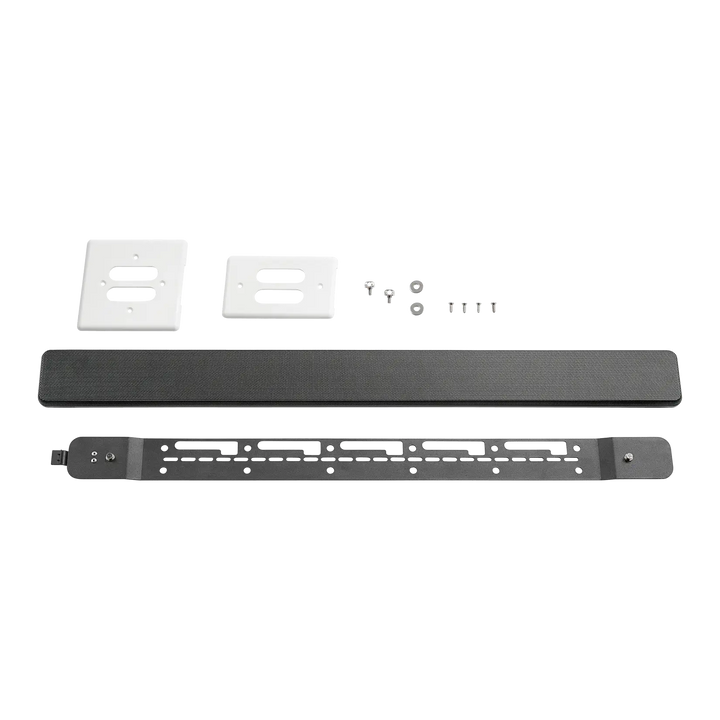

In the Box

• MXA710 linear array microphone (Aluminum, 2-foot)
• Wall-mounting bracket (RPM710-2M)
• Hardware kit (wall cover plates, eyelet screws, cable ties)
