Description
Overview

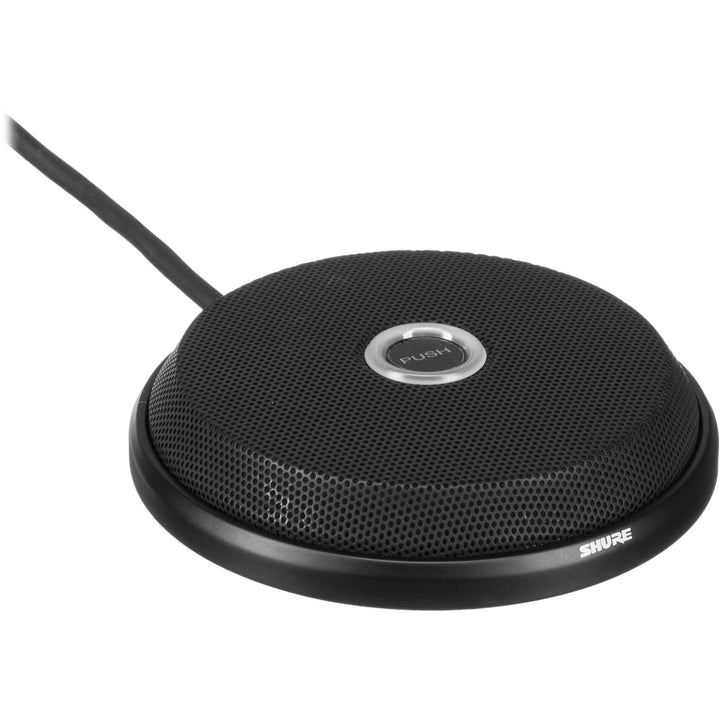

The Shure MX396/C-DUAL is a dual-element (0°–180°) boundary microphone with two cardioid capsules for capturing two distinct audio zones. It features back or bottom exit cable routing, programmable mute/logic switch, and LED indicator.
Key Features
- Dual-element design: Two cardioid capsules positioned at 0° and 180° for split-zone coverage
- Programmable switch: Mute/logic function with LED
- Flexible cable routing: Back or bottom exit options
Specifications
- Type: Condenser, dual cardioid (0°–180°)
- Frequency response: 50 Hz – 17,000 Hz
- Sensitivity: -35 dBV/Pa per element
- Max SPL: 124 dB
- Power: 11–52 VDC phantom
- Outputs: 2 independent balanced audio channels
In the Box
- MX396/C-DUAL boundary microphone
- Cable and mounting hardware
