BLX14/SM31-H11

Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.

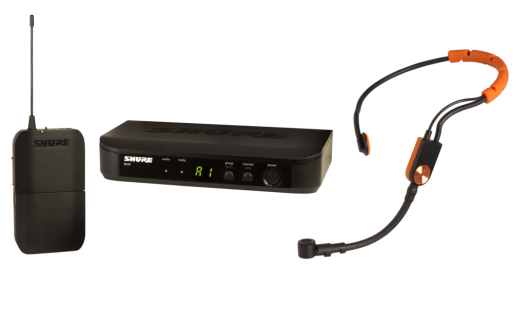

The BLX14/SM31 Wireless Headset System includes BLX4 wireless receiver, BLX1 bodypack transmitter, SM31 fitness headset microphone, power supply, clothing clip, windscreens, and user guide.

The SM31FH cardioid condenser microphone with analogue transmission features moisture-repelling construction for true performance in humid applications where corrosion damage is common.

Included Accessories:

1 - PS24 Power Supply

1 - Clothing clip

1 - Windscreen

1 - Carrying Case

Specificatons

SYSTEM

Working Range: 91 m (300 ft) Line of Sight

Audio Frequency Response: 50 to 15,000 Hz*

Total Harmonic Distortion: Ref. +/-33 kHz deviation with 1 kHz tone; 0.5%, typical

Dynamic Range: 100 dB, A-weighted, typical

*Note: Dependent on microphone type

BLX1

Audio Input LeveL (mind/max): -16 dBV to +10 dBV(0 dB)

Gain Adjustment Range: 26 dB

Input Impedance: 1 MΩ

RF Transmitter Output: 10 mW, typical

Dimensions (H x W x D): 4.33 in. x 2.52 in. x 0.83 in. (110 mm x 64 mm x 21 mm)

Weight: 2.6 oz. (75 g), without batteries

Housing: Molded ABS

Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline

Battery Life: up to 14 hours (alkaline)

Audio Input Level

(0dB) -20 dBV maximum

(-10dB)-10 dBV maximum

Gain Adjustment Range: 10 dB

RF Transmitter Output: 10 mW, typical

Dimensions: 8.82 in. x 2.09 in. (224 mm x 53 mm) L x Dia.

Weight: 7.7 oz. (218 g) without batteries

Housing: Molded ABS

Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline

Battery Life: up to 14 hours (alkaline)

BLX4

Output Impedance

XLR connector: 200 Ω

6.35 mm (1/4") connector: 50 Ω

Audio Output Level: Ref. 33 kHz deviation with 1 kHz tone

XLR connector: 27 dBV (into 100 kΩ load)

6.35 mm (1/4") connector: 13 dBV (into 100 kΩ load)

RF Sensitivity: -105 dBm for 12 dB SINAD, typical

Image Rejection: > 50 dB, typical

Dimensions (H x W x D): 1.57 in. x 7.40 in. x 4.06in. (40 mm x 188 mm x 103 mm)

Weight: 48.5 oz. (241 g)

Housing: Molded ABS

Power Requirements: 1215 V DC @ 160 mA, supplied by external power supply (tip positive)
