BLX14-J11

Wireless Freedom Made Simple

Now you have the freedom to rock out on stage, however you like. The BLX14 is a wireless instrument stage system with everything you need to get started. Simple to set up, easy to use and long usage time means less time setting up and more time to perform the music you love.

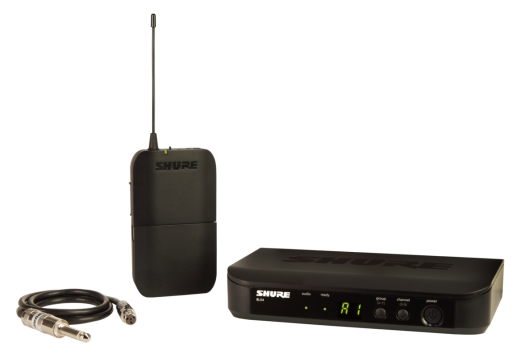

Includes BLX1 bodypack transmitter, BLX4 single-channel receiver, guitar cable, power supply, 2 AA batteries, and user guide.

BLX1 Bodypack Transmitter

The durable BLX1 features a lightweight, ergonomic design and adjustable gain control. For use with BLX Wireless Systems.

Easy to use, with quick receiver frequency matching and easily accessible On / Off switch. The BLX1 transmitter offers up to 14 hours of continuous use with 2 AA batteries and a 300ft (100 m) operating range (with line of sight). TQG connection offer use with Shure lavalier, headset, earset and instrument mics and guitar cables.

BLX4 Wireless Receiver

he durable BLX4 features simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. The easy-to-read screen displays current frequency and features audio-status LED indicators to let you know when excessive audio levels are detected. Includes XLR and 1/4" output connectors.

Features

• Easy to setup/use wireless system perfect for guitars in stage-performance setting

• One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference

• BLX1 body pack ideal for use with lavalier, headset, earset and instrument mics and guitar cables

• XLR and 1/4" output connectors on receiver

• Up to 300 ft (91 m) operating range for total wireless freedom

• Up to 14 hours of continuous use from 2 AA batteries

• Offers a 24 MHz tuning bandwidth and up to 12 compatible systems per frequency band

Specifications

BLX1 Bodypack Transmitter

Audio Input Level (gain): max: -16 dBV maximum / min (0 dB): +10 dBV maximum

Gain Adjustment Range: 26 dB

Input Impedance: 1 Ohm

RF Transmitter Output: 10 mW, typical - varies by region

Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline

Battery Life: Up to 14 hours (alkaline)

Dimensions (H x W x D): 110 mm x 64 mm x 21 mm

Weight: 75 g (2.6 oz.), without batteries

BLX4 Single Channel Wireless Receiver

Output Impedance: XLR connector: 200 ohm, 6.35 mm (1/4") connector: 50 ohm

Audio Output Level (Ref. 33 kHz deviation with 1 kHz tone): XLR connector: -27 dBV (into 100k ohm load), 6.35 mm (1/4") connector: -13 dBV (into 100k ohm load)

RF Sensitivity: -105 dBm for 12 dB SINAD, typical

Image Rejection: > 50 dB, typical

Dimensions: 40mm X 188mm X 103mm

Weight: > 241g (8.5 oz.)

Housing: Molded ABS

Power Requirements: 12-15V DC @ 160mA supplied by external power supply (tip positive)

Available Frequency Bands:

BLX14-H9 (512-542 MHz)

BLX14-H11 (572-596 MHz)

BLX14-J11 (596-616 MHz)
