Description
Overview

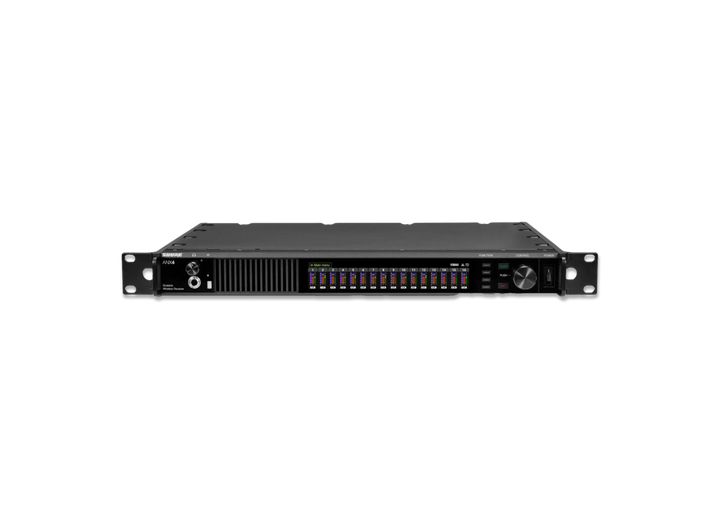

The Shure ANX4 (DC) is a scalable, high-channel-count networked wireless receiver supporting up to 16 channels of Axient Digital or 24 channels of ULX-D in a single 1RU rack space. This is the US-market DC-powered version (4-pin XLR, 11.3–16V DC) designed for redundant or battery-powered deployments in mission-critical installations. Channel licenses sold separately.
Key Features
- Scalable licensing — perpetual channel licenses purchased in 1- or 4-channel increments, transferable between units via ShureCloud
- Front-panel 1/4" headphone output with Dante Browse
- Wireless Workbench® compatible for RF management
- AES-256 encryption supported
Specifications
- Max channels: 16 (Axient Digital) / 24 (ULX-D)
- RF tuning range: 174 MHz – 2 GHz
- Audio output: Dante / AES67 (networked digital)
- Frequency response: 20 Hz – 20 kHz (±1 dB)
- Dynamic range: 124 dB (A-weighted)
- THD: < 0.1%
- Latency: < 2.1 ms (Axient Digital) / < 2.9 ms (ULX-D)
- Network: 4× Ethernet (RJ45, 10/100/1000 Mbps)
- Antenna inputs: 4× BNC coaxial
- Display: 6.6-inch front-panel color LCD
- Power: DC, 4-pin XLR (11.3–16V, 10A max) — with reverse polarity + over-voltage protection
- Max thermal dissipation: 61.3W
- Rack size: 1RU
- Dimensions: 44 × 482 × 286 mm (1.7 × 19.0 × 11.3 in)
- Weight: 3.9 kg (8.6 lb)
- Operating temp: –18°C to 50°C (0°F to 122°F)
In the Box
- ANX4 receiver unit (DC power, 4-pin XLR inlet)
- Rackmount kit
- 2× Ethernet cables (short + long)
- 2× BNC cables
- 2× BNC bulkhead adapters
