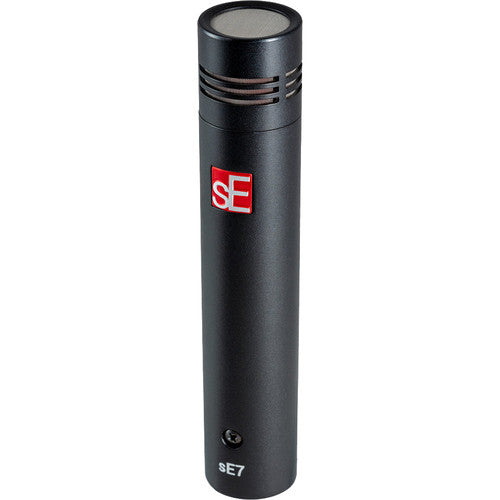

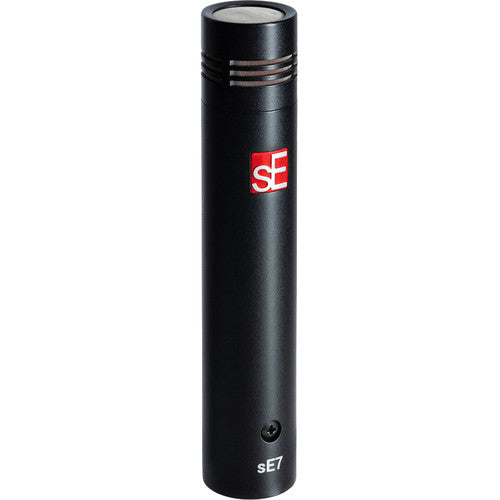

SE Electronics SE7 Small Diaphragm Cardioid Condenser Microphone with Clip

The sE7 is a compact back-electret small-diaphragm cardioid condenser microphone for studio and live applications including acoustic guitar, piano, drums, and other pencil-mic sources. Discrete class-A circuitry and a transformerless output deliver clear, natural sound across the frequency range.

A switchable 20 dB attenuation pad and 80 Hz low-cut filter let you close-mic loud sources or reduce rumble and proximity buildup. The all-metal chassis and gold-plated XLR connector provide roadworthy construction and reliable connectivity.

Features

• 1/2" back-electret condenser capsule with cardioid pattern

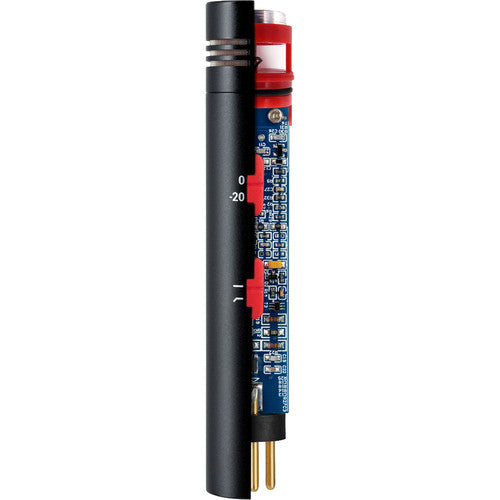

• Optimized acoustics with discrete class-A circuitry
• Transformerless output for clear, neutral capture

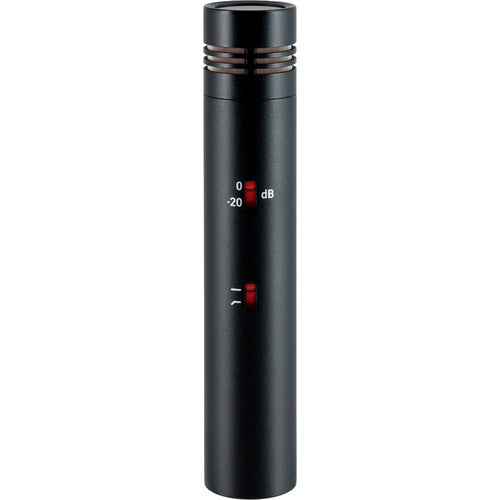

• Switchable 20 dB attenuation pad for loud sources
• Switchable 80 Hz low-cut filter
• High SPL handling up to 156 dB with pad engaged
• Roadworthy all-metal chassis with gold-plated XLR connector
• Includes mic clip and windscreen

Specifications

• Capsule: 1/2" back-electret condenser
• Polar pattern: Cardioid
• Frequency range: 20 Hz to 20 kHz
• Sensitivity: 19 mV/Pa (-35 dBV)
• Max SPL: 136 / 156 dB (0 / 20 dB pad)
• Equivalent noise level: 16 dB(A)
• Dynamic range: 120 / 140 dB (0 / 20 dB pad)
• Signal to noise ratio: 78 dB
• Low-cut filter: 80 Hz, 6 dB/oct, switchable
• Attenuation pad: 20 dB, switchable
• Electrical impedance: <200 ohms
• Recommended load impedance: >1k ohms
• Connectivity: 3-pin male XLR connector
• Power: 48V phantom power (P48 according to IEC 61938)
• Current consumption: 3.0 mA
• Dimensions: 23 mm diameter x 120 mm length
• Weight: 128 g (4.52 oz.)

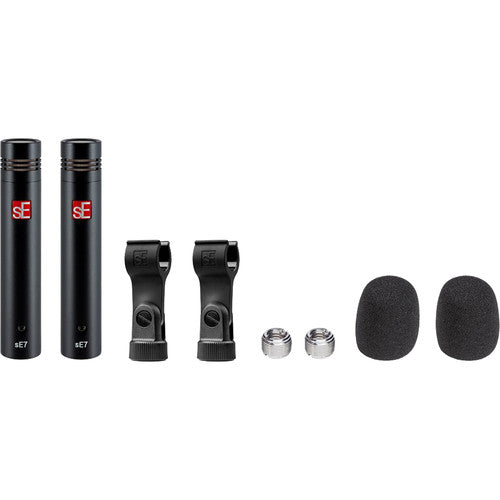

In the Box

• sE7 microphone

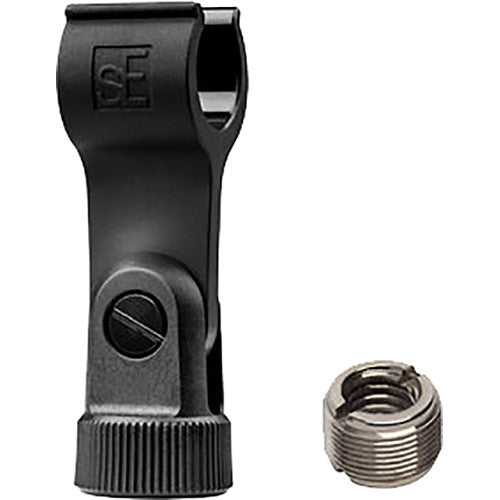

• Mic clip with thread adapter
• Windscreen
