SE Electronics DM3BLACK Dynamite Active DI with Pad and Ground Lift in Black

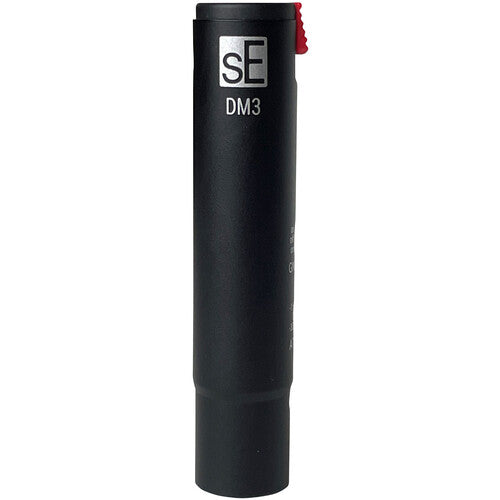

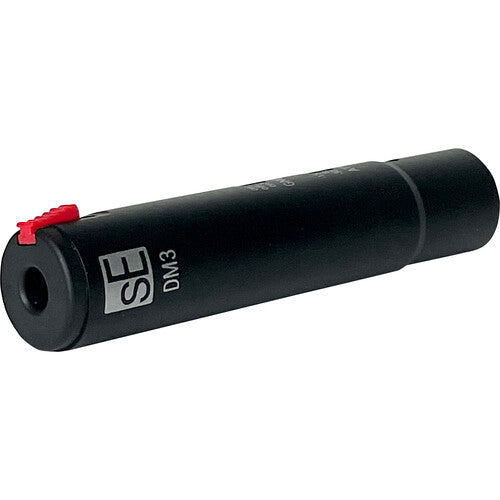

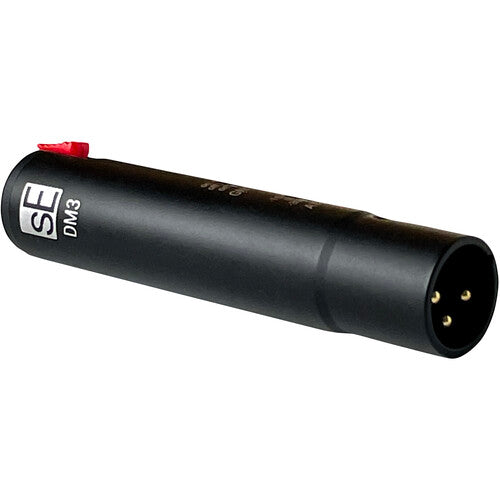

The black DM3 Dynamite is a compact active DI with an ultra-high-impedance input and generous headroom for electric and bass guitars, piezo instruments, keyboards, synths, drum machines, laptops, and even vintage microphones. Connect directly to any phantom-powered XLR input with no extra cable.

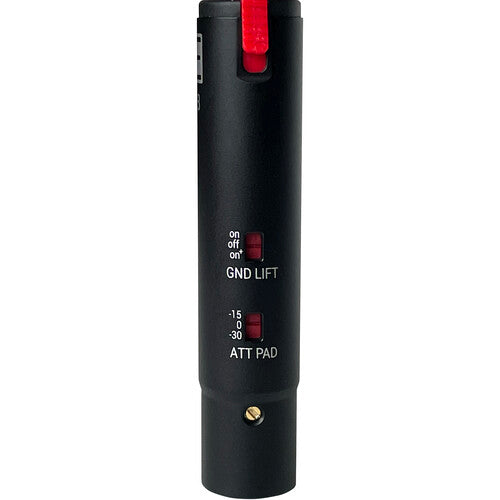

Switchable 15 or 30 dB input pads handle hot sources, and a three-position ground-lift switch helps eliminate hum and buzz across low and high frequencies. A locking 1/4 in input, gold-plated XLR output, and all-metal housing make the DM3 ready for studio or stage. Requires 48V phantom power.

Key Features

• In-line active DI for instruments
• Ultra-high-impedance locking 1/4 in input
• XLR 3-pin output
• Class-A output buffer and amplifier
• Switchable 15 or 30 dB input pad
• Three-position ground-lift switch
• Runs on 48V phantom power
• Durable all-metal housing

Specifications

• Type: Active DI
• Channels: 1
• Circuitry: Solid-state
• Pad: -15 / -30 dB (switchable)
• Ground Lift: Three-position
• Polarity Reverse: No
• Low-Cut Filter: No
• Audio I/O: 1x 1/4 in TRS balanced instrument input; 1x XLR 3-pin balanced output
• Frequency Response: 10 Hz to 120 kHz (-0.3 dB)
• Maximum Input Level: +49 dBV
• Input Impedance: 10 megohms
• Output Impedance: 1 kilohm (recommended)
• THD/Noise: ≤ 0.5%
• Power: 48V phantom power
• Dimensions: 3.76 x 0.79 in / 95.5 x 20.07 mm
• Weight: 2.47 oz / 70 g
• Color: Black

In the Box

• 1x DM3 Dynamite active DI (black)
