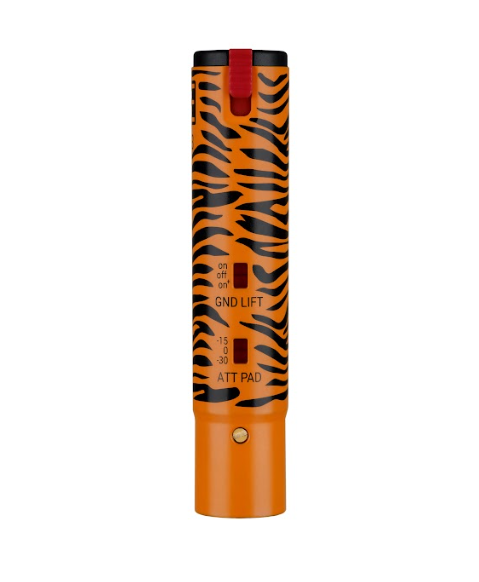

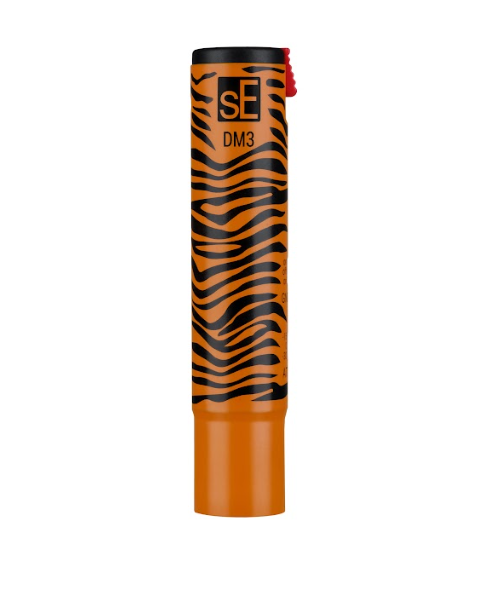

SE Electronics DM3 Dynamite Active DI with Pad and Ground Lift

The sE Electronics DM3 Dynamite is an active inline direct box that converts instrument-level signals to balanced XLR output for live sound and recording. Dynamite circuitry delivers silent operation with a locking ultra-high impedance instrument input, Class-A output buffer, and switchable -15 dB and -30 dB pads for hot sources such as power amplifiers.

The 10 megohm input preserves pickup character from low-output instruments through loud amplifier feeds. A three-stage ground lift switch addresses hum, ground loops, and RF interference, while the compact all-metal chassis saves rack and pedalboard space.

Key Features

• Active inline direct box with ultra-high Z instrument input
• 10 megohm input impedance preserves instrument tone
• Handles powerful signals up to 10,000W with switchable -15 dB and -30 dB pads
• Three-stage ground lift switch reduces hum, ground loops, and RF interference
• Locking 1/4" input jack prevents accidental disconnections
• Class-A output buffer maintains signal integrity
• Compact all-metal chassis for stage and studio use

Specifications

• Type: Active
• Channels: 1
• Pads: -15 dB, -30 dB
• Ground lift: Yes
• Inputs: 1 x 1/4" locking
• Outputs: 1 x XLR
