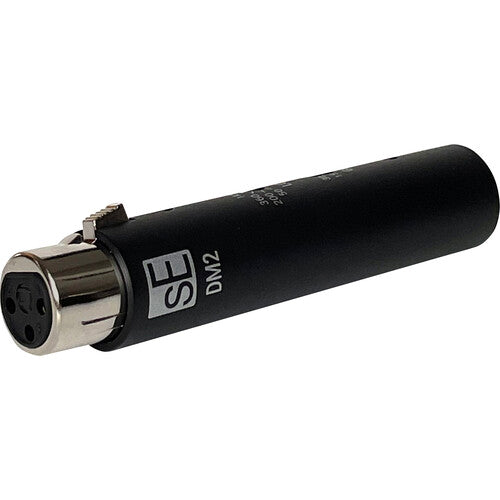

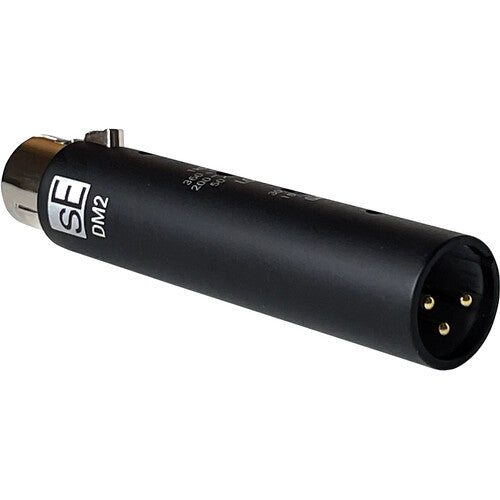

SE Electronics DM2BLACK Dynamite Active In-line Microphone Preamp with Selectable Gain and Impedance in Black

The black DM2 TNT Dynamite is an active in-line microphone preamplifier for passive ribbon and dynamic mics. Select 15 or 30 dB of gain to lift the signal into your preamp, mixer, or interface without adding noise or coloration.

Eight load-impedance settings help you match microphone and preamp combinations for the best results. The Class-A FET design delivers clean gain with low self-noise, a dedicated output buffer reduces RF interference and hum, and the slim all-metal housing is built for stage use. Requires 48V phantom power. Not for use with phantom-powered microphones.

Key Features

• For passive ribbon or dynamic microphones
• Switchable 15 or 30 dB gain

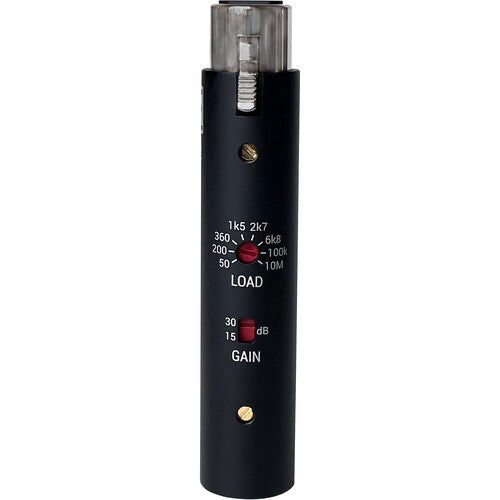

• 8 impedance settings to match mic and preamp
• Transformerless Class-A FET design
• Low self-noise with dedicated output buffer
• Requires 48V phantom power

Specifications

• Type: In-line preamplifier
• Input Level: Mic level
• Output Level: Mic level
• Channels: 1
• Gain: +15 / +30 dB (selectable)
• Circuit Type: Class-A FET
• Controls: Impedance, input level/gain
• Indicators: None
• Inputs/Outputs: 1x XLR 3-pin female balanced mic input; 1x XLR 3-pin male balanced mic output
• Frequency Response: 10 Hz to 120 kHz
• Output Impedance: 135 ohms
• Recommended Load Impedance: 1 kilohm
• Power: 48V phantom power
• Current Consumption: 3.1 mA
• Dimensions: 3.8 x 0.7 in / 95.5 x 19 mm
• Weight: 2.8 oz / 80 g
• Color: Black

In the Box

• 1x DM2 TNT in-line preamplifier (black)
