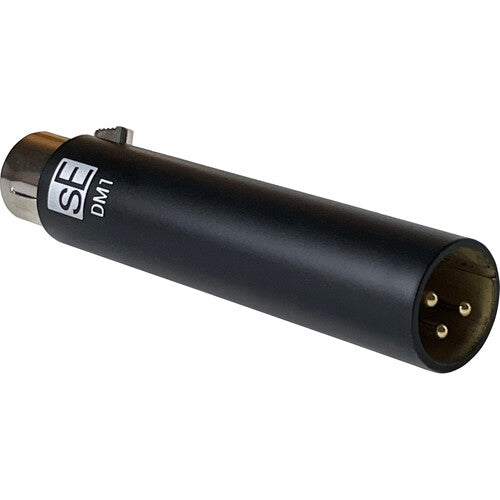

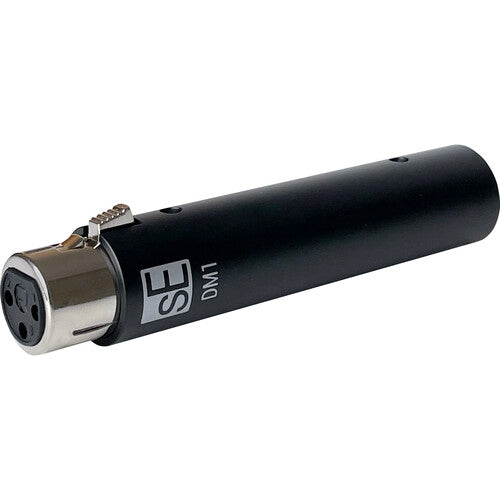

SE Electronics DM1BLACK Dynamite Active In-line Microphone Preamp with 28dB Gain in Black

The black DM1 Dynamite is an active in-line microphone preamplifier that sits between a passive ribbon or dynamic microphone and your mic preamp. It adds 28 dB of clean gain to lift quiet sources without adding noise or coloration.

Built around a Class-A FET design with low self-noise, the DM1 includes a dedicated output buffer to drive long cable runs and reduce RF interference, buzz, and hum. The slim all-metal housing is road-ready, connects via standard 3-pin XLR, and runs on 48V phantom power.

Key Features

• For passive ribbon or dynamic microphones
• Provides 28 dB of gain
• Class-A FET design with low self-noise
• Dedicated output buffer for long cable runs
• Roadworthy all-metal housing
• Requires 48V phantom power

Specifications

• Type: In-line preamplifier
• Input Level: Mic level
• Output Level: Mic level
• Channels: 1
• Gain: +28 dB (1-kilohm load)
• Circuit Type: Class-A FET
• Controls: None
• Inputs/Outputs: 1x XLR 3-pin female input; 1x XLR 3-pin male output
• Frequency Response: 10 Hz to 120 kHz (-0.3 dB)
• Output Impedance: 135 ohms
• Minimum Load Impedance: 1 kilohm
• Maximum Output Level: +8.3 dBV (0.5% THD)
• Power: 48V phantom power
• Current Consumption: 3.0 mA
• Dimensions: 3.76 x 0.75 in / 9.55 x 1.91 cm
• Weight: 2.8 oz / 79.9 g
• Color: Black

In the Box

• 1x DM1 Dynamite in-line preamplifier (black)
