Description

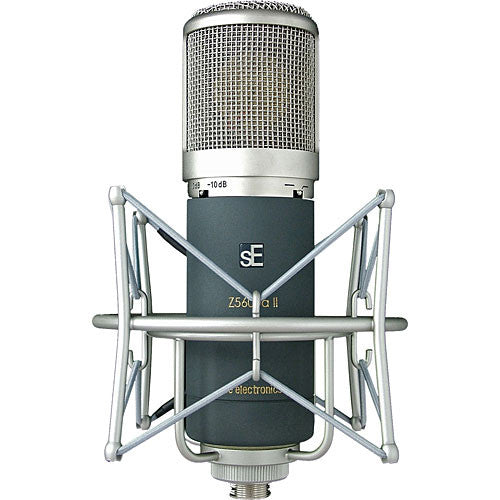

The Z5600a II (5600S/MKII) is a large-diaphragm vacuum-tube condenser microphone with nine selectable polar patterns spanning omni, cardioid, and figure-8, including three intermediate steps between each. A hand-crafted 1" true condenser capsule and 12AX7 tube output stage deliver the warmth and transparency expected of a studio tube mic on vocals, drums, guitar cabs, piano, and room sources.
A -10 dB pad and 50 Hz low-cut filter extend headroom for loud instruments and reduce rumble. Pattern selection on the external PSU lets you balance direct and ambient pickup without swapping microphones.
Specifications
- Capsule: Hand-crafted 1" true condenser
- Tube complement: 1x 12AX7 (ECC83)
- Polar patterns: 9 positions (omni, cardioid, figure-8 with three steps between each)
- Frequency range: 20 Hz to 20 kHz
- Sensitivity: 25 mV/Pa (-32 dBV)
- Max SPL: 127 / 137 dB (0 / -10 dB pad)
- Equivalent noise level: 13 dB
- Dynamic range: 114 / 124 dB (0 / -10 dB pad)
- Signal-to-noise ratio: 81 dB
- Low-cut filter: 50 Hz, 6 dB/oct, switchable
- Impedance: 200 ohms
- Power: External PSU (included)
- Connectivity: 3-pin male XLR via PSU
- Dimensions: 62 mm diameter x 220 mm length (2.44" x 8.66")
- Weight: 850 g (29.98 oz)
In the Box
- Z5600a II microphone
- Custom shockmount
- 8-pin microphone cable
- External power supply with IEC cable
