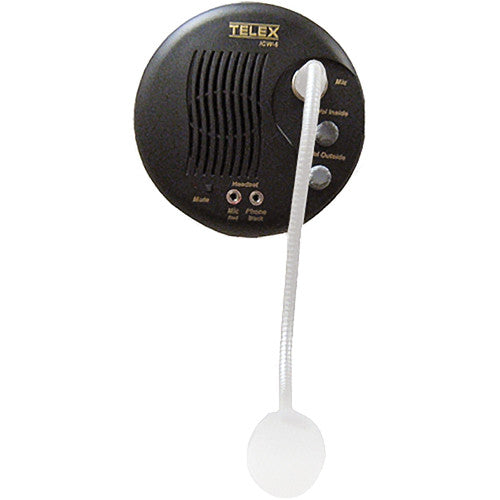

RTS IC-W6 Window Mount Security Intercom with VOX (requires MCP90 mic)
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
The RTS Window Intercom System is a reliable flexible security and ticket booth communication unit with high quality audio and durability. The VOX (Voice Threshold Level Activation) feature, audio-shaping circuitry, and duplex design eliminate the surrounding noise interruption and ensure superior voice quality.
The ICW-6 Intercom System offers two hands-free operation modes - gooseneck microphone operation and headset operation (not included). While the gooseneck operation mode lets you freely access information sheets or cash drawers, the headset usage offers privacy and lowers the ambient noise levels in multi-user environments.
To ensure optimum performance, the internal microphone threshold adjustment enables you to set the sensitivity of the inside and outside microphones to the typical noise level at that location. This also ensures that the microphone is active only when it is used.
The Window Mountable Intercom System is made of high-tech polycarbonate fiber resin material which makes it strong and virtually indestructible.
Features
- Flexible security and ticket booth communications equipment
- Audio-shaping circuitry and VOX operation ensure maximum voice intelligibility
- Duplex design
- High quality audio
- Gooseneck mic or headset operation (not included)
- Made of high-tech polycarbonate fiber resin material
- Easy installation
- Improved durability
Outputs
- External Speaker: 2W: 100dB SPL @ 1 foot @ 1kHz, C weighting
- Internal Speaker: 2W: 100dB SPL @ 1 foot @ 1kHz, C weighting
- NOTE: These are sine wave maximums. Voice measurements will range 70 to 90 dB SPL
- Headphone: 80mW: 100dB peak SPL
- Voice Range: 84 to 104dB SPL
- Impedance: 50 Ohms
Inputs
- Panel Microphone: Electret: 15mv @ 1kHz, typical into 1000 Ohms source impedance
- Headset Microphone: Dynamic: range 2mv @ 1kHz, typical into 1000 Ohms
- Source Impedance Dynamic: 200 Ohms
- Power Requirements: 5VDC
- Power Consumption: 600mA
