Description

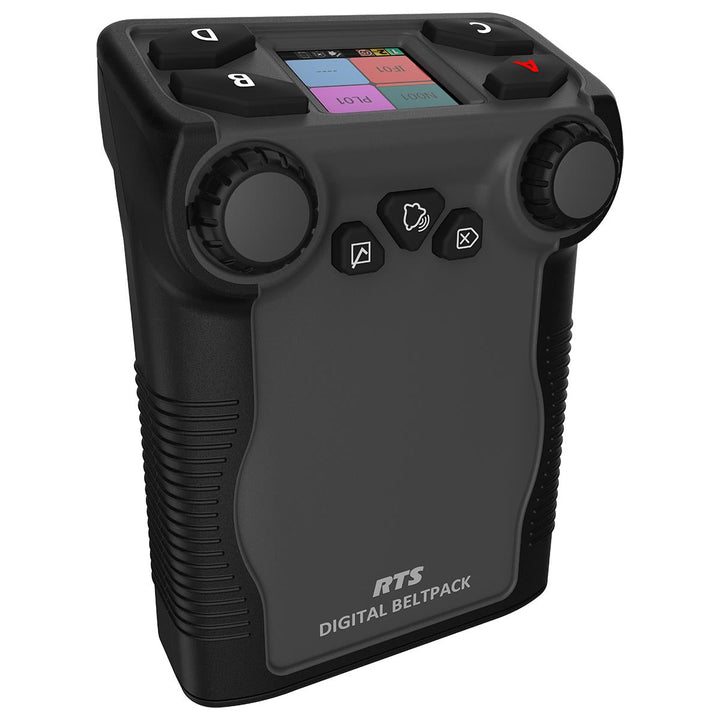

DBP is a four-channel/four-button wired beltpack that runs on PoE+ (Power over Ethernet 802.3af and 802.3at) and connects using OMNEO IP technology. Its unique hybrid design supports both digital partyline and matrix keypanel modes: for use as a digital partyline device, DBP connects to an OMS; for use as a portable keypanel, including functionality like point-to-point communication, DBP can be connected to any RTS digital/IP matrix product using OMNEO - including OMI cards in ADAM/ADAM-M frames or OMNEO ports on ODIN frames. DBP automatically selects the correct mode of operation (digital partyline/OMS or keypanel/matrix) when connected and switched on.
DBP's PoE-driven design gives it an unmatched level of scalability and makes it easy to add new users. In and Out PoE ports (two etherCON locking RJ45 connectors) allow up to six DBP devices to be daisy-chained together from the same PoE switch port when used in partyline mode. Up to 40 DBPs can be connected to an OMS, allowing for the creation of an extensive digital partyline system - all in addition to the other wired and wireless devices OMS supports. Depending on the matrix model/configuration, up to 64 DBPs can be connected to an OMI card for ADAM matrices, and up to 128 DBPs can be connected to one ODIN.
Hybrid functionality
Operate DBP in partyline mode with OMS (OMNEO Main Station) or in portable keypanel mode with an RTS matrix (ODIN/ADAM) - one device covers it all.
Daisy chaining
Connect DBP to a PoE switch via OMS/ODIN/ADAM and up to six DBPs can be daisy chained together.
User friendly
Lightweight and ergonomic design with full-color icon-based menu navigation for quick setup and intuitive operation.
RTS Intercom Systems DBP Features

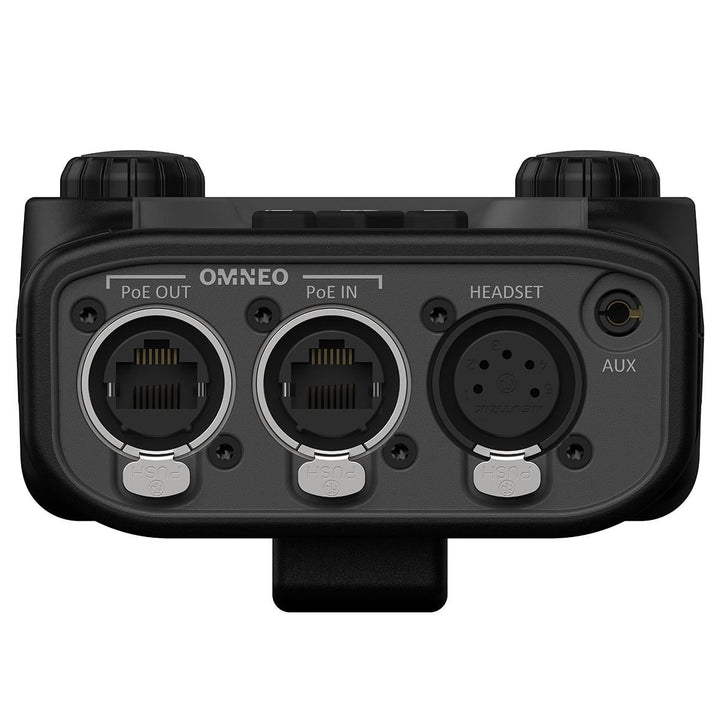

- Connectors: Incorporates both XLR and 3.5mm TRRS connectors for headsets which are available with 4-pin female.
- Power: PoE powered via an 802.3af or 802.3at managed switch or PoE injector. Contains a PoE In and PoE Out port which allows up to 6 DBPs to be daisy-chain connected to the same PoE(+) switch port.
- Bluetooth: Supports Bluetooth audio connectivity using either an IO Gear GBU522 dongle or an LM Technologies LM506 dongle.
- Connections: DBP can be connected to the OMNEO main station (Digital Partyline) or an OMNEO capable matrix (OMI card or ODIN). DBP can support up to four active Party Lines. 40 DBPs can be connected to OMS (based on the model), 64 DBPs can be connected to one OMI card (based on the model), 128 DBPs can be connected to one ODIN (based on the model).
- Notifications: Incoming CALL notifications via audible alerts or haptic vibration.
