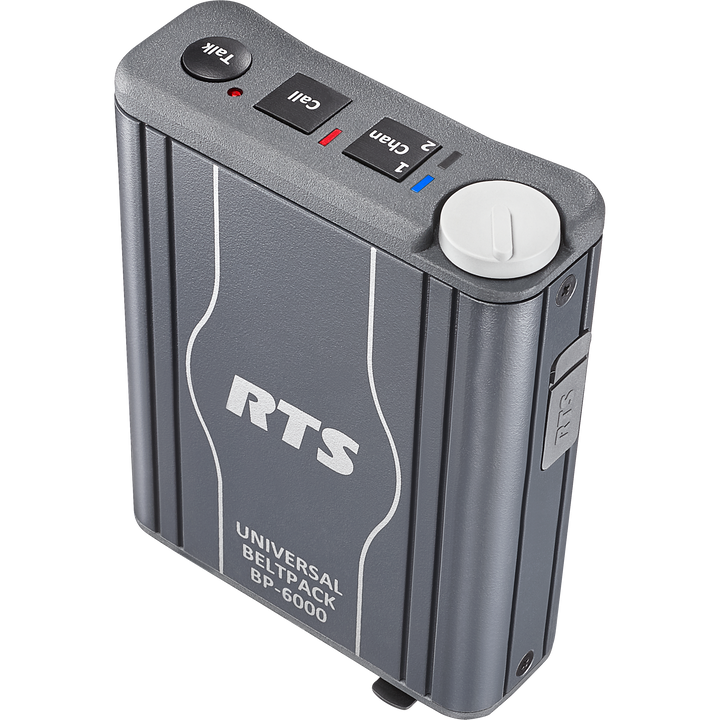

RTS BP-6000-A4M 2-Channel Portable Beltpack Headset with Autosensing (A4M)

The BP-6000 is a portable user station compatible with Audiocom and Clear-Com party line systems. The BP-6000 is a 2-channel beltpack equipped with a mode-sensing system configuration, meaning the beltpack determines what type of system it is installed into and configures itself according to the system.

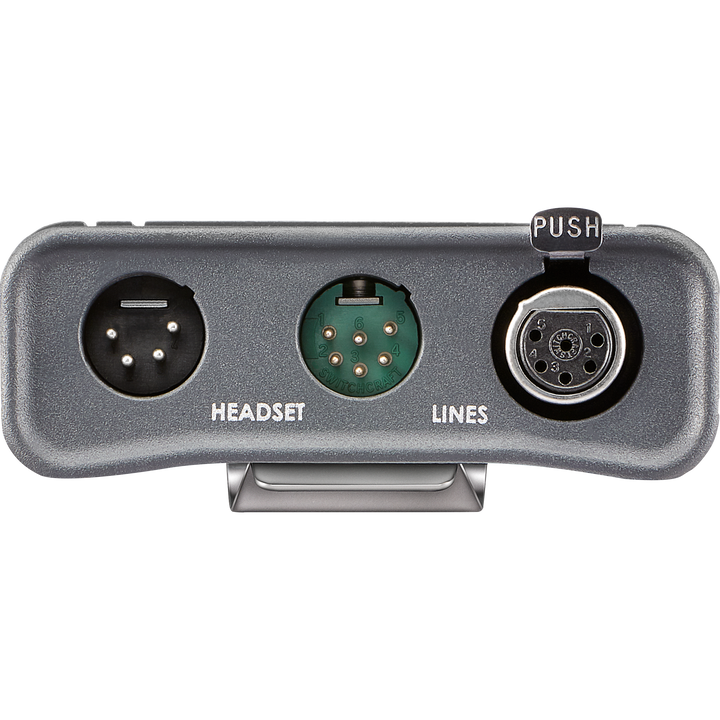

The BP-6000 has a 4-pin male XLR connector with auto-sensing headset inputs. Dynamic and electret headset microphones are supported. The loop and line connection both use 6-pin Switchcraft connectors.

Multiple programming options are available. To simplify programming, voice prompts guide the user through the menus.

The beltpack is available in black only.

Features

• Voice prompts for simplified configuration
• Remote Mic Kill turns off all active microphones, reducing background noise
• Programmable TALK Button, (Always) On, (Always) Off, Switched, or Momentary
• Mode-sensing System Configuration
• Updated design for modern, sleek appearance
• Reduced current draw allows for more beltpacks being powered by the power supply
• Auto-sensing headset inputs, electret or dynamic
• Uses 6-pin Switchcraft connectors for line and loop connections

Specifications

• Crosstalk: -60
• Power Requirements: Max Operating Current (unbalanced): 50 mA; Max Operating Current (balanced): 55 mA; Channel Supplied: 18 - 33 VDC; Local Power: 18-33 VDC
• Operating Temperature: 32º F to 131º F; 0º C to 55
• Storage Temperature: -4º F to 158º F; -20º C to 70
• Storage Humidity: 15% to 90%, non-condensing
• Operating Humidity: 5% to 95%, non-condensing
